Instrument Panel Speaker: Removal: Removal

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. REMOVE COWL TOP VENTILATOR LOUVER RH  . Refer to REMOVAL - Step 1
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   NOTE:

   • w/ Navigation System (for HDD):

     After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

     Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal

     Condition	Waiting Time
     Vehicle enrolled in safety connect system	6 minutes
     Vehicle not enrolled in safety connect system	1 minute

   • When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
3. REMOVE NO. 1 SPEAKER HOLE COVER
   Fig 1: Identifying Clips And Hole Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Using a screwdriver, detach the 4 clips and remove the hole cover.

      HINT:

      Tape the screwdriver tip before use.

4. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY
   1. Remove the 2 bolts.
   2. Remove the speaker and disconnect the speaker connector.
      NOTE:

      Do not touch the cone part of the speaker.

      Fig 2: Identifying Front No. 3 Speaker Assembly Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE FRONT PILLAR GARNISH LH  . Refer to REMOVAL - Step 10
6. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
   Fig 3: Identifying Instrument Panel Speaker Assembly Clips And Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Using a screwdriver, detach the 2 clips and 7 claws.

      HINT:

      Tape the screwdriver tip before use.

   2. Remove the speaker panel.
7. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
   1. Remove the 2 bolts.
   2. Remove the speaker and disconnect the speaker connector.
      NOTE:

      Do not touch the cone part of the speaker.

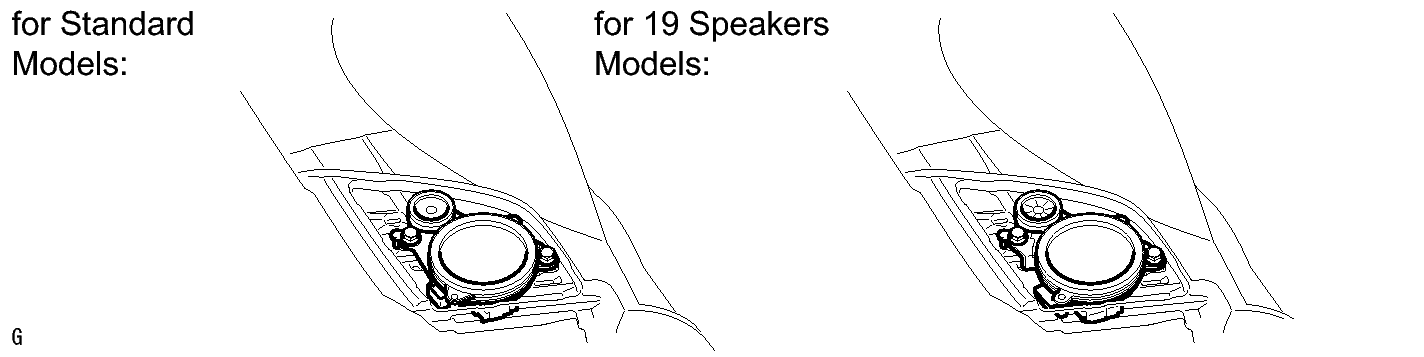

      Fig 4: Identifying Front No. 2 Speaker Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
