Fuel Receiver Gauge Malfunction: Procedure

1. Check if CAN communication DTC is output. Refer to DIAGNOSIS SYSTEM .
   RESULT



   Result	Proceed to
   CAN communication DTC is not output	A
   CAN communication DTC is output	B

B → See step   9

A: Go to next step

1. Check if Multiplex communication DTC is output. Refer to DIAGNOSIS SYSTEM .
   RESULT



   Result	Proceed to
   Multiplex communication DTC is not output	A
   Multiplex communication DTC is output	B

B → See step   10

A: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter following menus: Body Electrical / Combination Meter / Active Test.
5. Check the operation by referring to the table below.
   COMBINATION METER



   Tester Display	Test Part	Control Range	Diagnostic Note
   Fuel Meter Operation	Fuel receiver gauge	EMPTY, 1/2, FULL	Confirm that the vehicle is stopped, engine idling

   OK

   Fuel receiver gauge indication is normal.

NG → See step   11

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter following menus: Body Electrical / Combination Meter / Data List.
5. Check the values by referring to the table below.
   COMBINATION METER



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Fuel Input	Fuel input signal Min.: 0, Max.: 255	Fuel gauge indicates (E): 206	-
   		Fuel gauge indicates (1/2): 148
   		Fuel gauge indicates (F): 48

   OK

   Fuel value signal displayed on the Techstream is almost the same as fuel receiver gauge indication.

NG → See step   11

OK: Go to next step

1. Disconnect the P10 and Q14 connectors.
   Fig 1: Identifying P10 And Q14 Connectors Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance: Fuel Sender Gauge Assembly (Main)

   Tester Connection	Condition	Specified Condition
   Q14-2 (S) - Q14-3 (FE)	Always	6.5 to 229.6 Ω

   Standard Resistance: Fuel Sender Gauge Assembly (Sub)

   Tester Connection	Condition	Specified Condition
   P10-1 (FS) - P10-2 (E)	Always	6.5 to 184.9 Ω

NG → See step   12

OK: Go to next step

1. Disconnect the J34 connector.

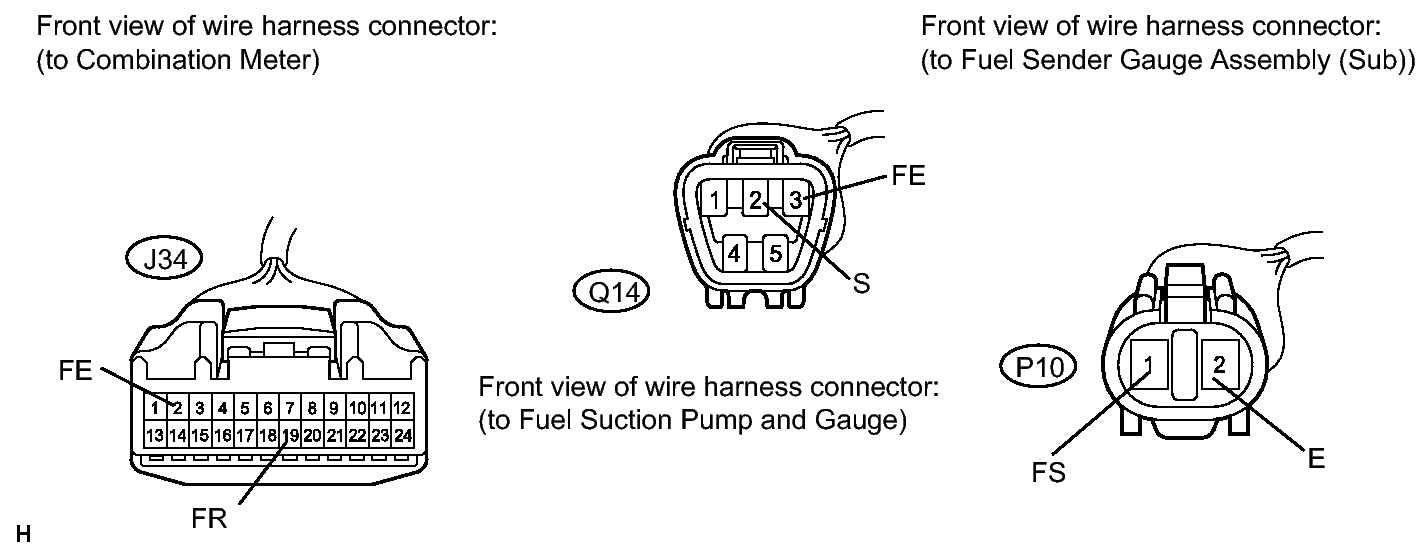

   Fig 2: Checking Harness And Connector Between Combination Meter And Fuel Sender Gauge Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J34-19 (FR) - Q14-2 (S)	Always	Below 1 Ω
   Q14-3 (FE) - P10-1 (FS)	Always	Below 1 Ω
   P10-2 (E) - J34-2 (FE)	Always	Below 1 Ω
   Q14-2 (S) - Body ground	Always	10 kΩ or higher
   P10-1 (FS) - Body ground	Always	10 kΩ or higher
   J34-2 (FE) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the fuel sender gauge connector.

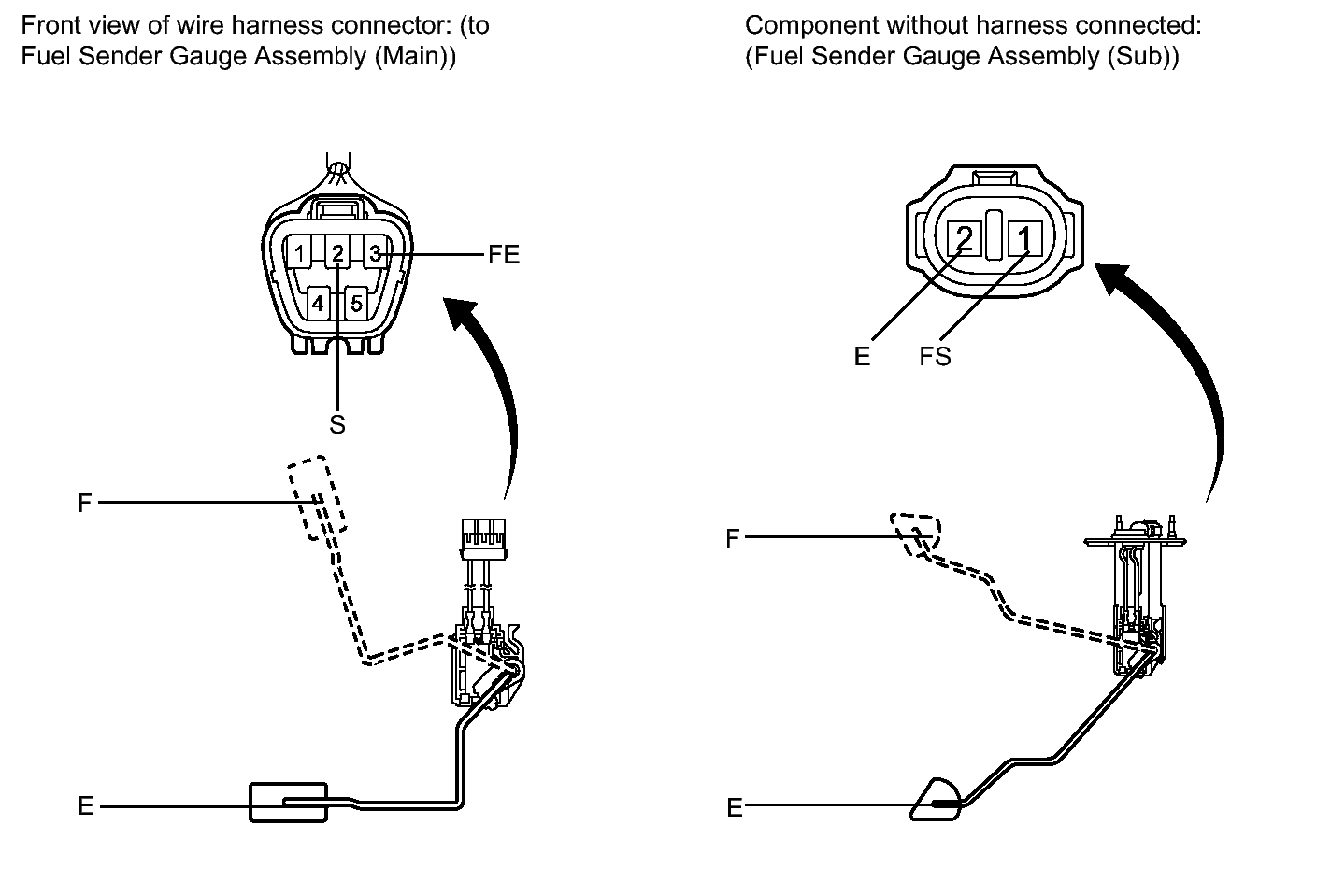

   Fig 3: Identifying Fuel Sender Gauge Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the fuel sender gauge assembly (main).
   1. Remove the fuel sender gauge assembly (main) with harness connected.
   2. Check that the float moves smoothly between F and E.
   3. Measure the resistance between the terminals 1 (FE) and 2 (S) of the connector according to the value(s) in the table below.

      Standard Resistance (Fuel Sender Gauge Assembly (Main))

      Float Level	Resistance (Ω)
      F	6.5 to 8.5
      Between E and F	6.5 to 229.6 (Gradually changes)
      E	224.6 to 229.6

3. Inspect the fuel sender gauge assembly (sub).
   1. Remove the fuel sender gauge assembly (sub).
   2. Check that the float moves smoothly between F and E.
   3. Measure the resistance between the terminals 1 (FS) and 2 (E) according to the value(s) in the table below.

      Standard Resistance (Fuel Sender Gauge Assembly (Sub))

      Float Level	Resistance (Ω)
      F	6.5 to 8.5
      Between E and F	6.5 to 184.9 (Gradually changes)
      E	180.9 to 184.9

NG → See step   12

OK: Go to next step

1. Replace the combination meter with a new or a known good one. Refer to REMOVAL - Step 9 .

   OK

   The operation of the combination meter returns to normal.

NG → See step   13

OK → END
