Entire Combination Meter does not Operate: Wiring Diagram

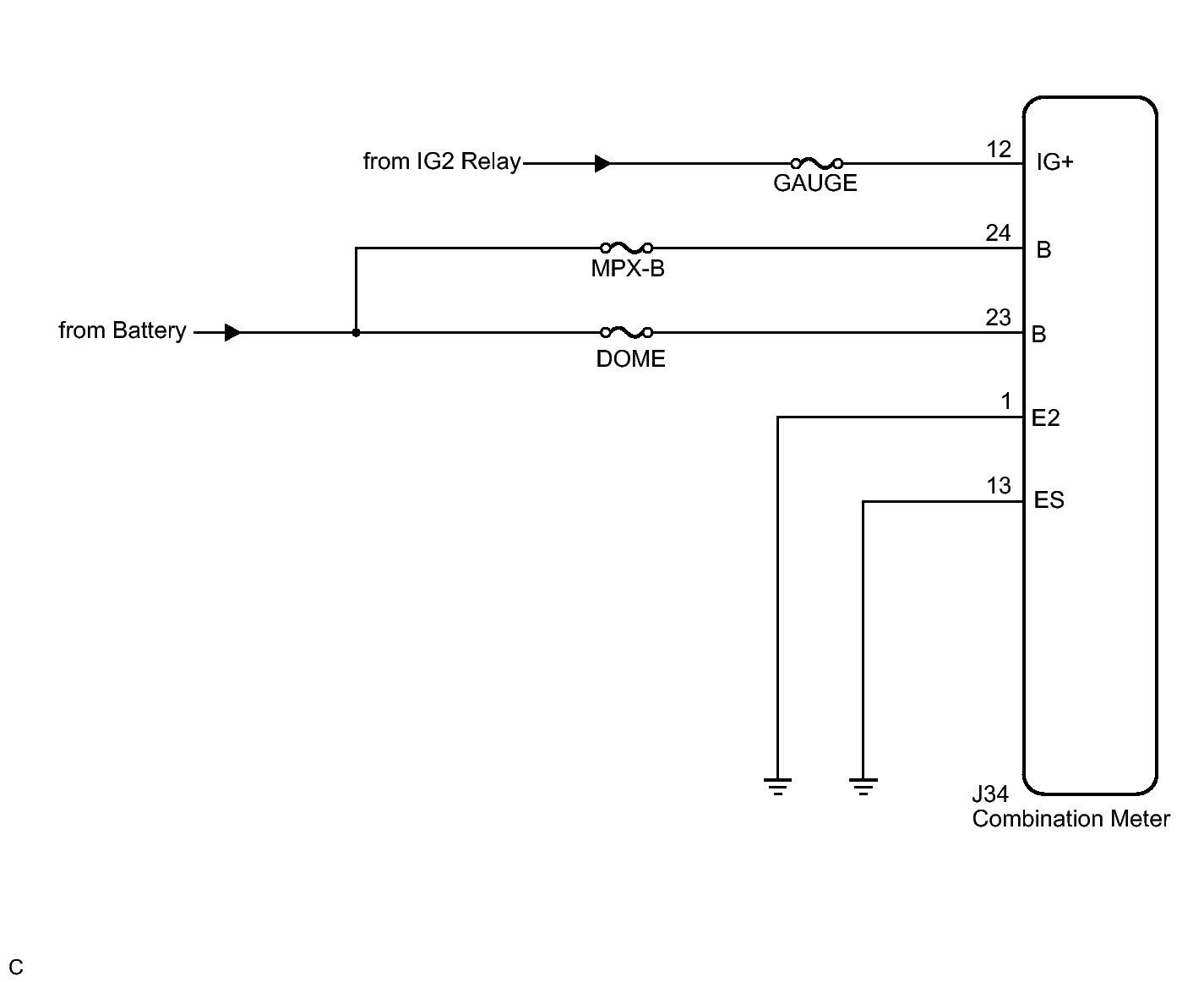

Fig 1: Power Source Circuit For Meter - Wiring Diagram

GTY126275

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
