DTC B2540: Abnormal Difference Between RH and LH Roof Drive Motor Pulse: Wiring Diagram

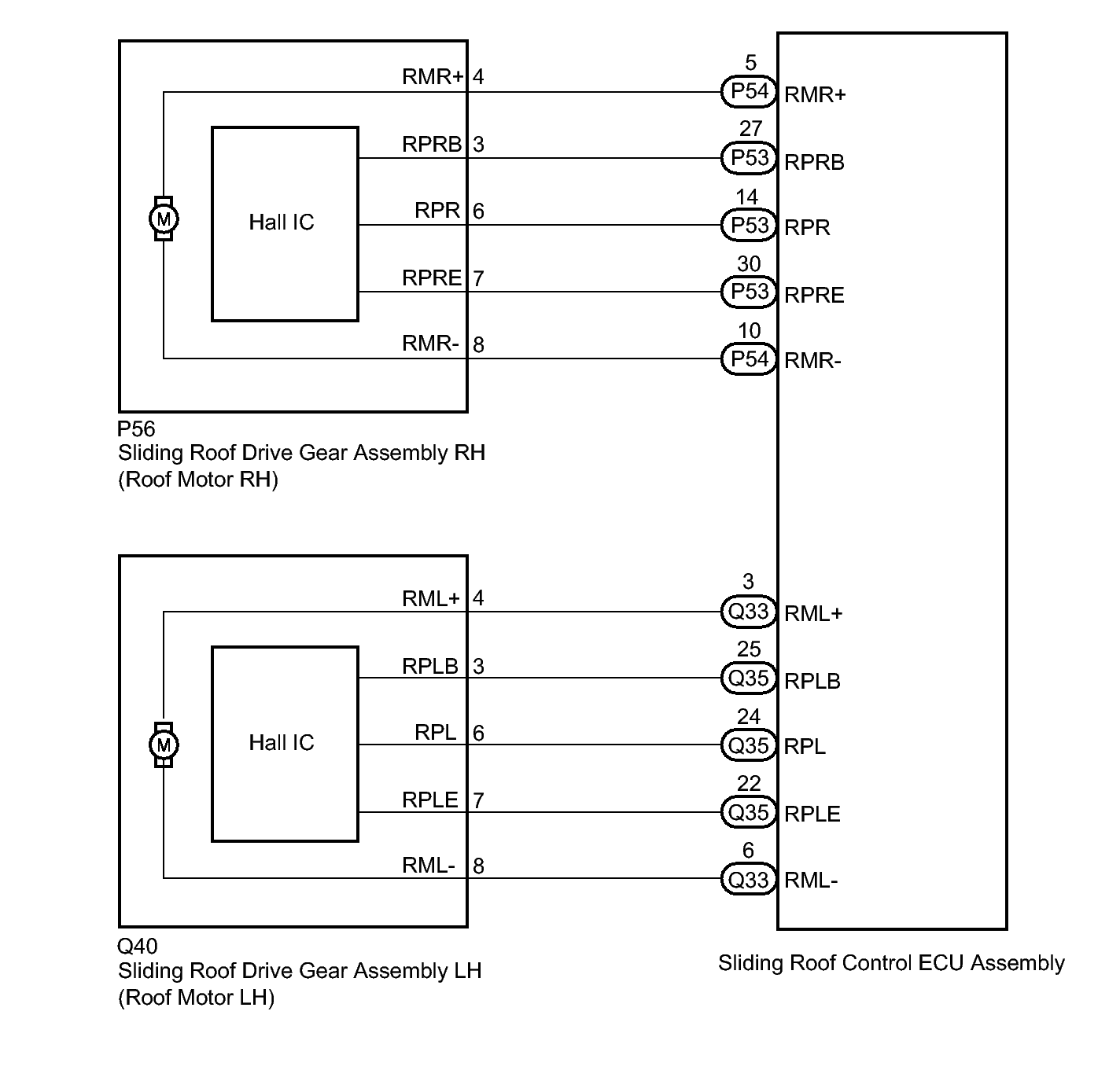

Fig 1: Identifying Abnormal Difference Between RH & LH Roof Drive Motor Pulse
GTY263993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
