Shift Paddle Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2010 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

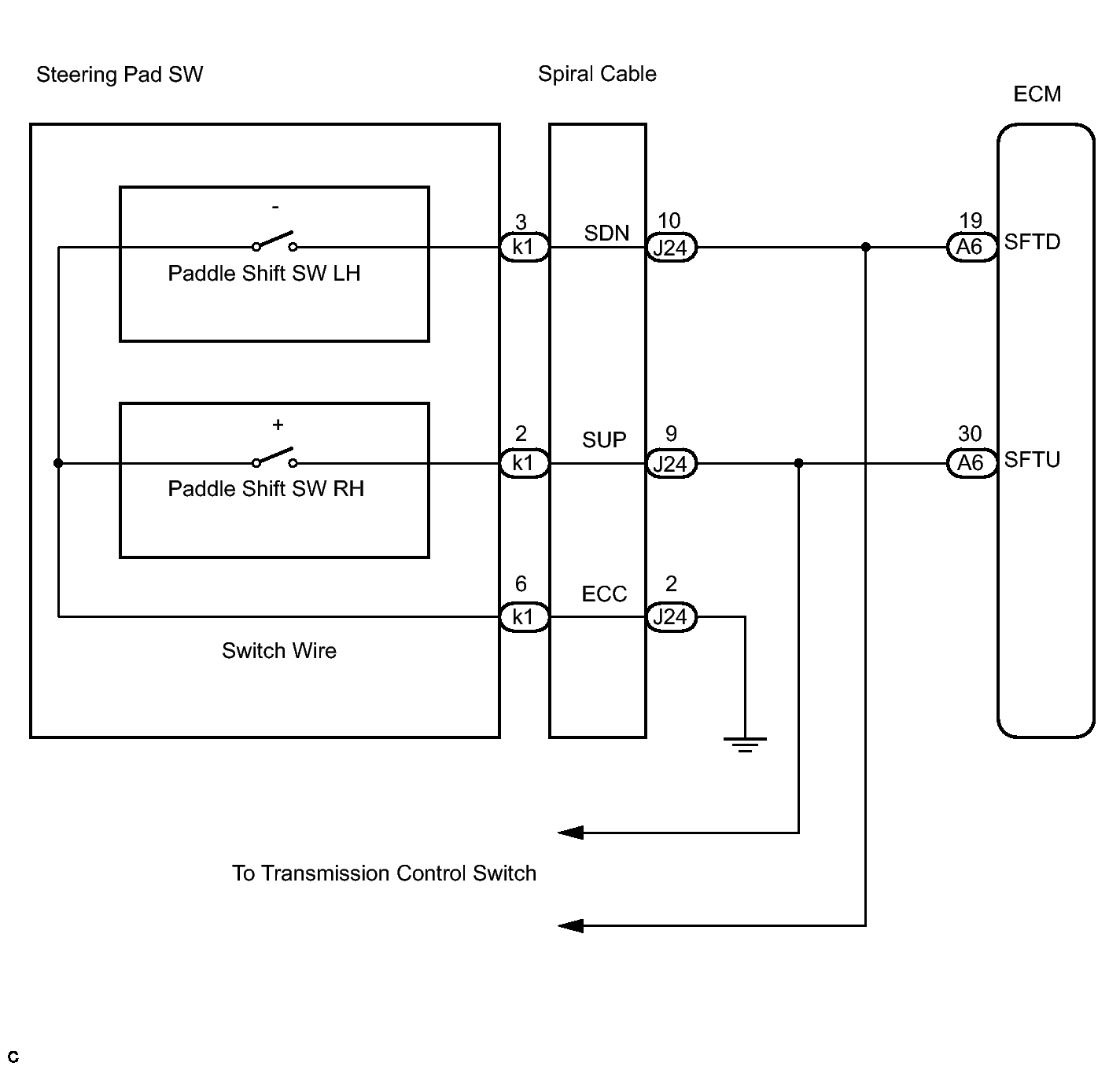

Fig 1: Steering Pad Switch - Wiring Diagram
GTY130996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
