Pattern Select Switch Power Mode Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2010 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

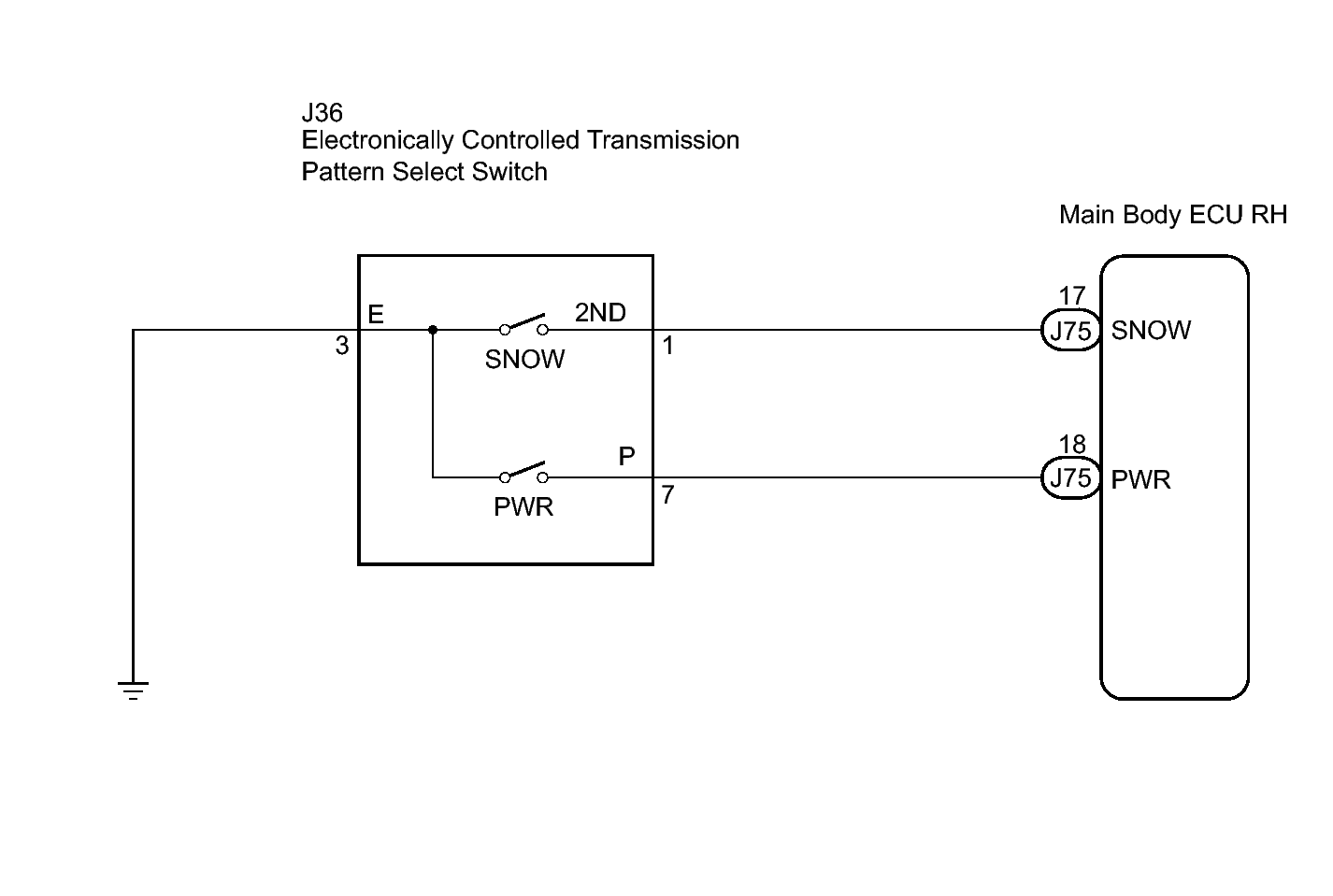

Fig 1: Wiring Diagram - Pattern Select Switch Power Mode Circuit
GTY131215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
