Satellite Switch Circuit: Wiring Diagram

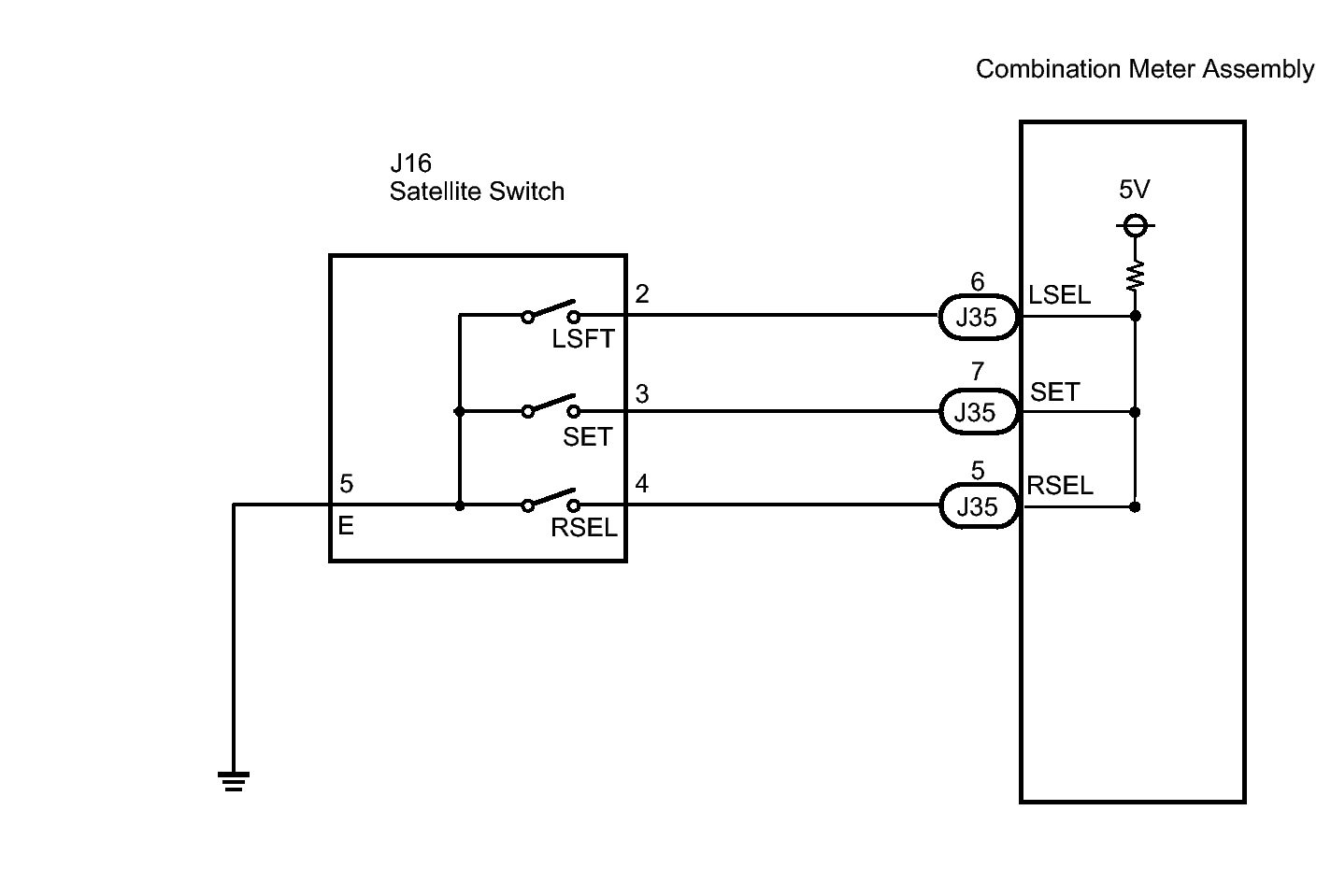

Fig 1: View Of Satellite Switch Circuit Wiring Diagram

GTY136297

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
