Brake Master Cylinder: Components: Illustration

Fig 1: Identifying Brake Master Cylinder Replacement Components (1 Of 3)
GTY263293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

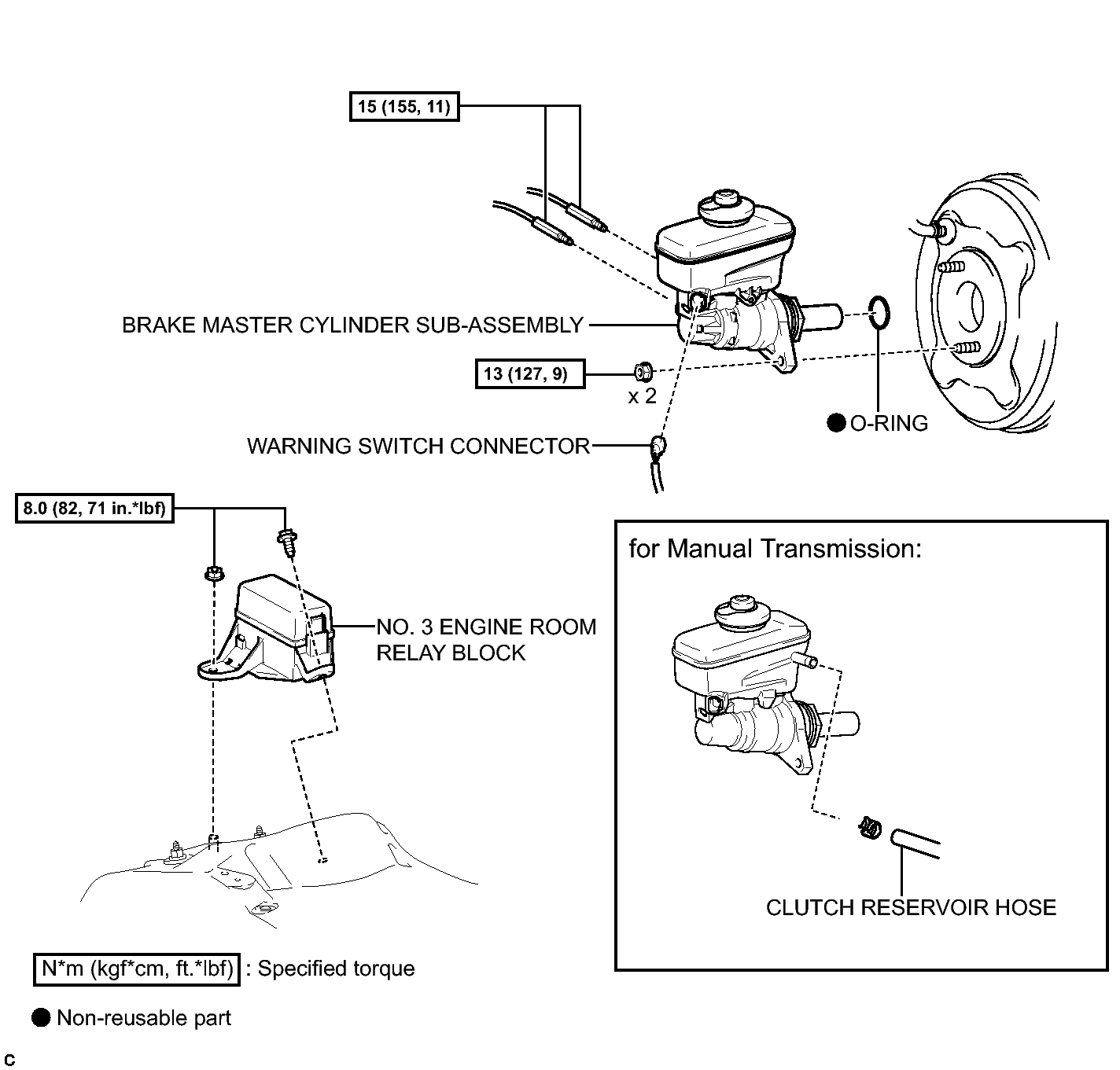

Fig 1: Identifying Brake Master Replacement Components With Torque Specifications (1 Of 3)
GTY271715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

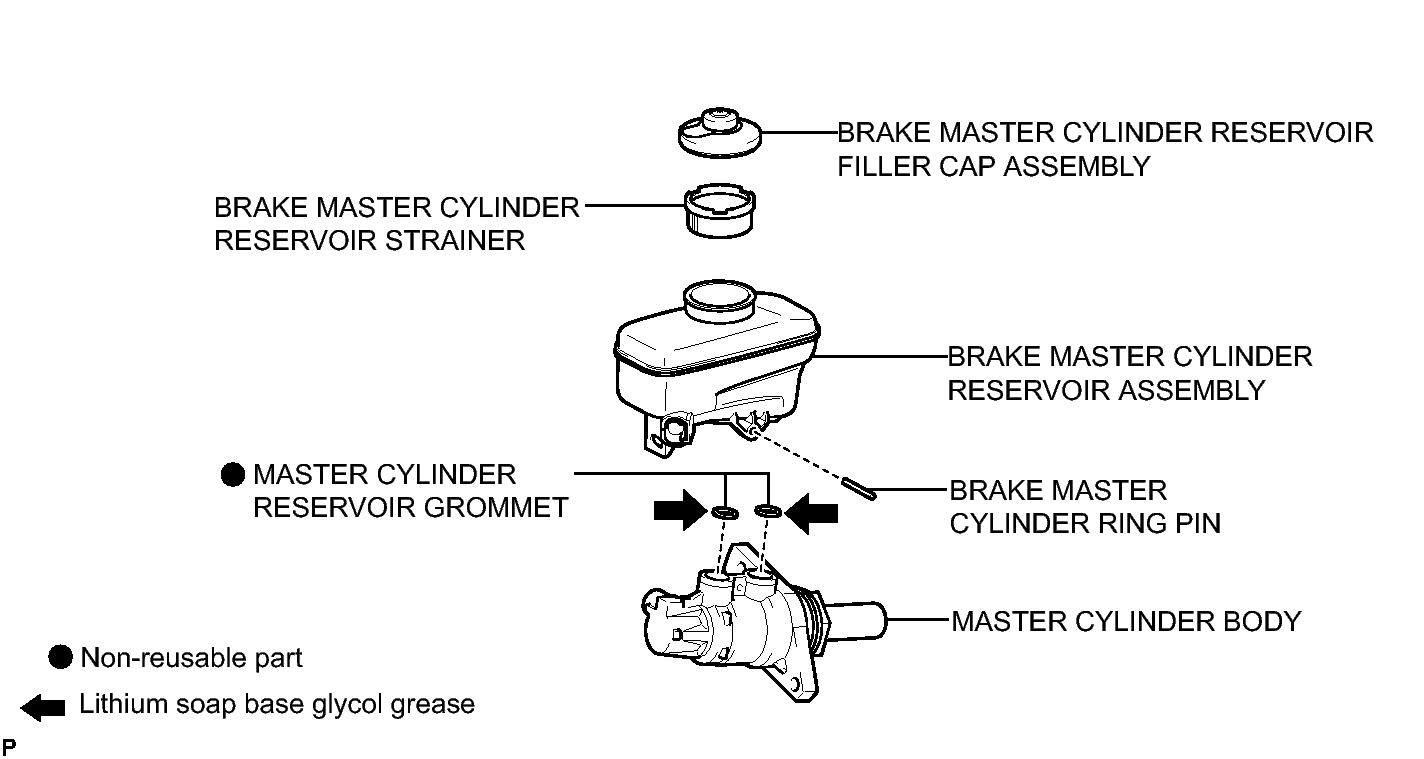

Fig 1: Identifying Brake Master Cylinder Replacement Components (3 Of 3)
GTY277831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
