DTC B2568: Lock in Back Window Panel Drive Motor RH Circuit: Wiring Diagram

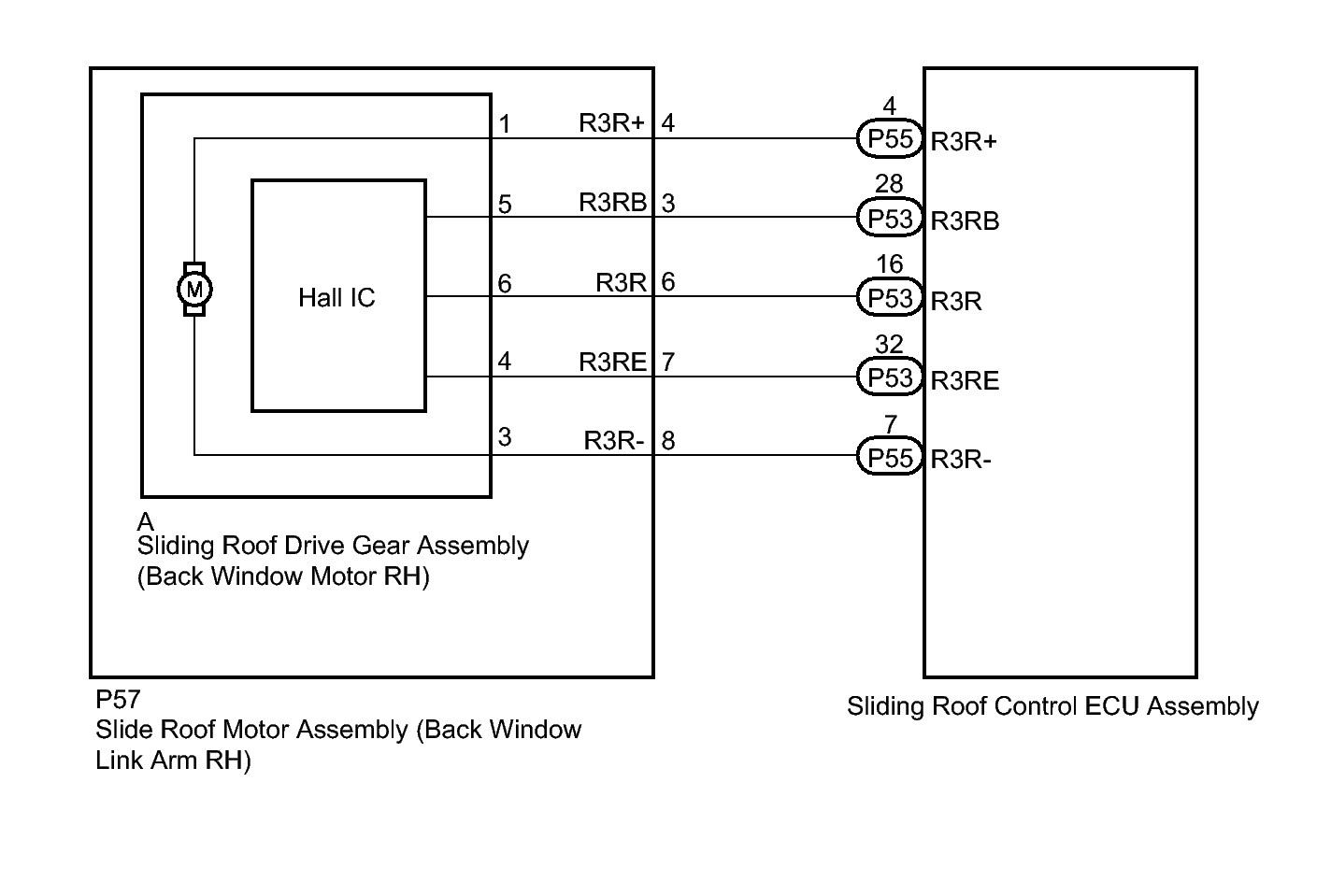

Fig 1: Identifying Lock In Back Window Panel Drive Motor RH Circuit - Wiring Diagram
GTY261783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
