DTC B255E: Luggage Door Closer Switch LH Abnormal Operation: Wiring Diagram

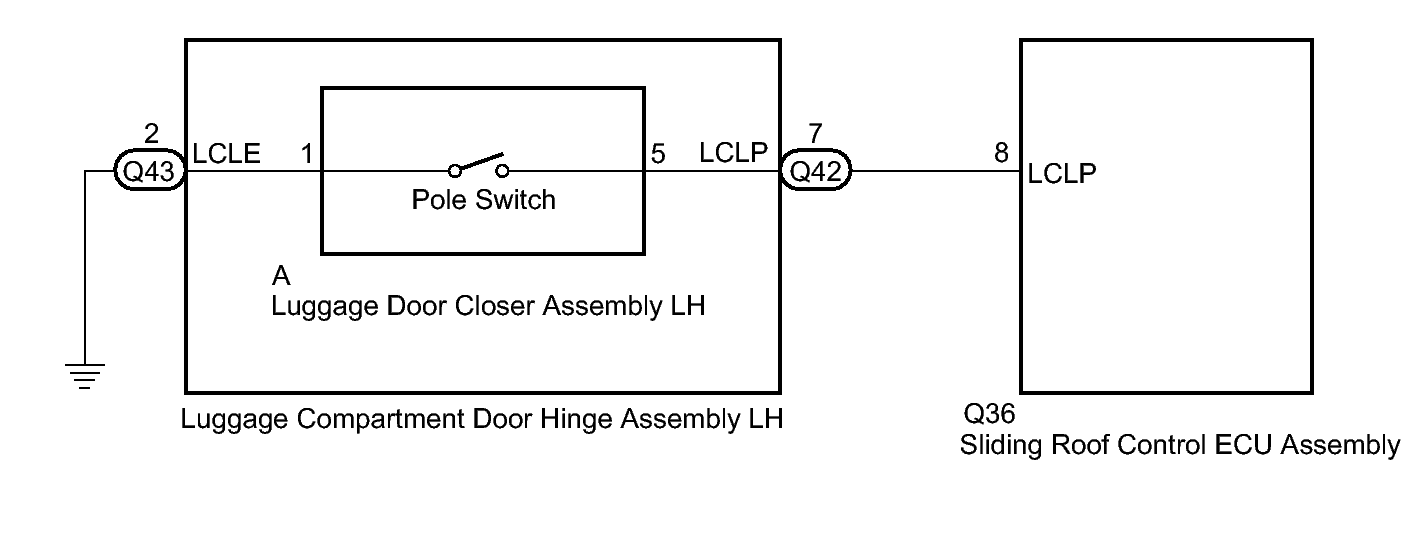

Fig 1: Identifying Luggage Door Closer Switch LH Abnormal Operation - Wiring Diagram
GTY274967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
