DTC B255A: Lost Communication with Clearance Sonar ECU: Wiring Diagram

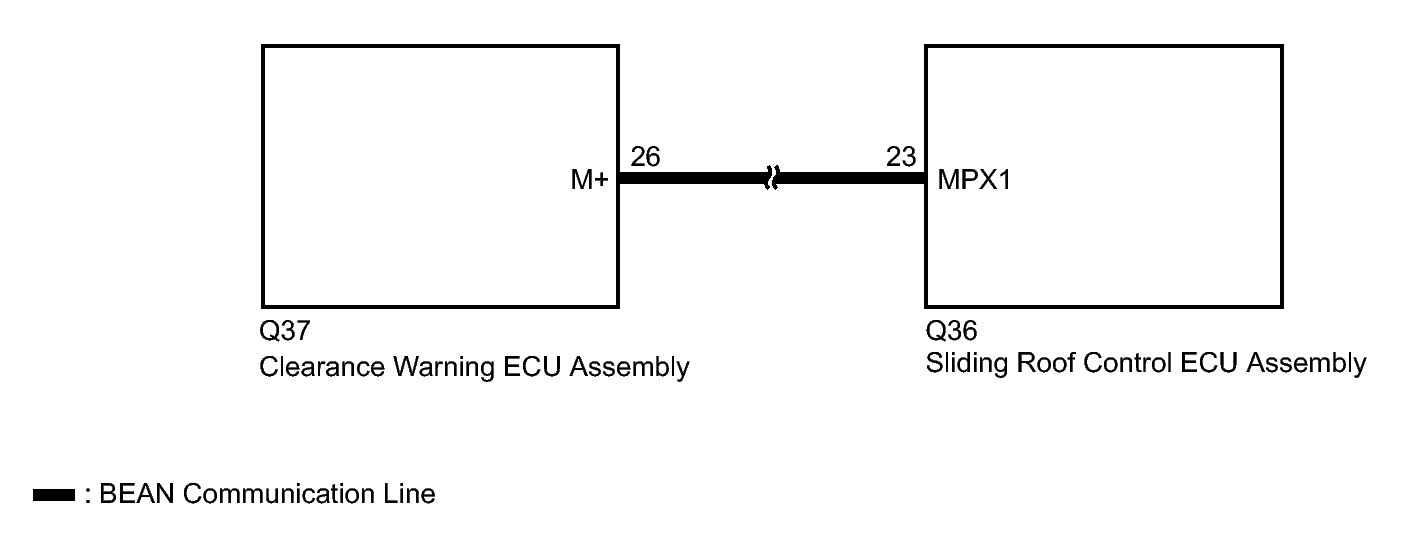

Fig 1: Identifying Lost Communication With Clearance Sonar ECU - Wiring Diagram

GTY271967

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
