DTC B2558: Motor Lock in Luggage Door Drive Motor(RH): Wiring Diagram

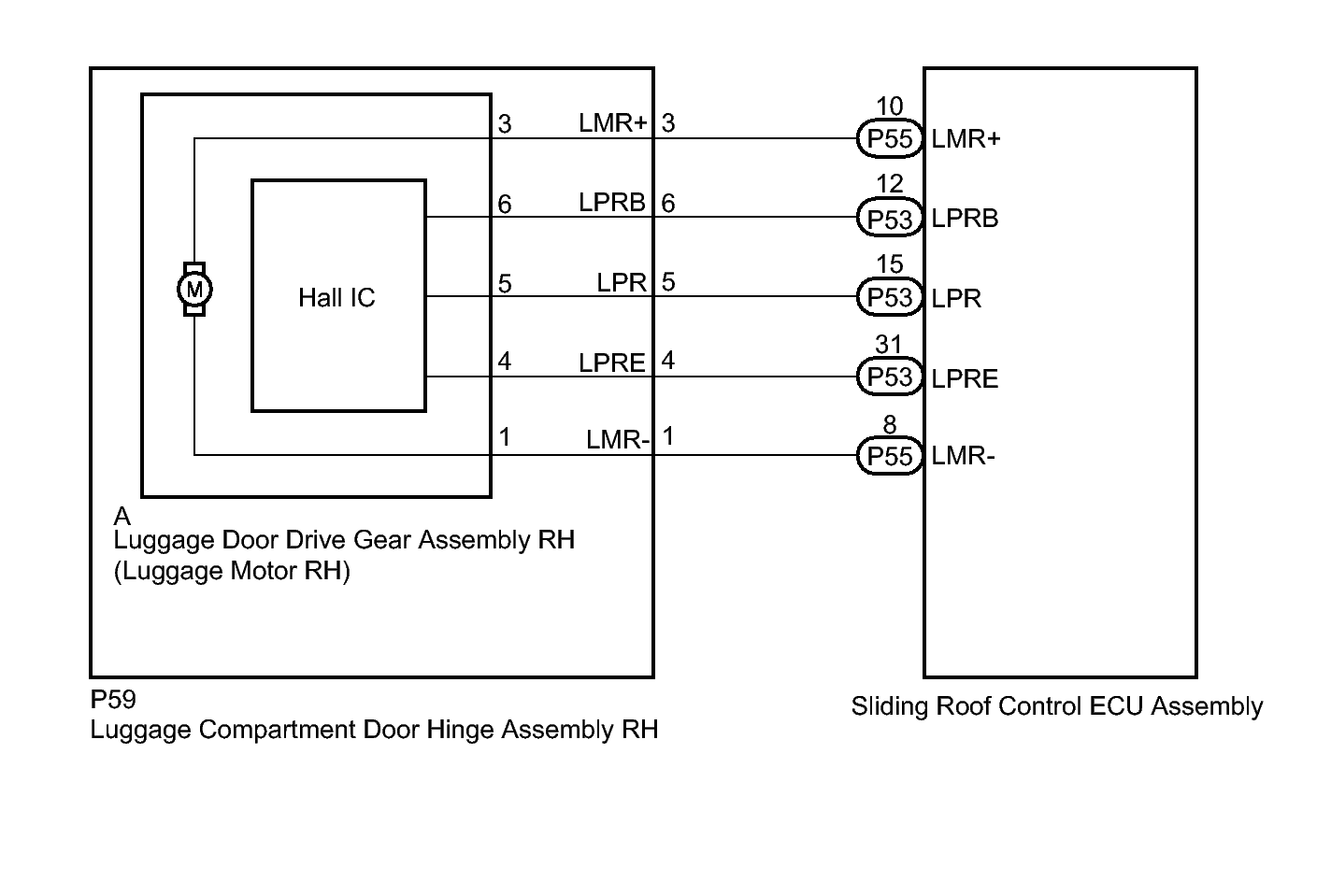

Fig 1: Identifying Motor Lock in Luggage Door Drive Motor (RH) - Wiring Diagram

GTY261781

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
