DTC B254D: Back Window Panel RH Pulse Sensor Abnormal Operation: Wiring Diagram

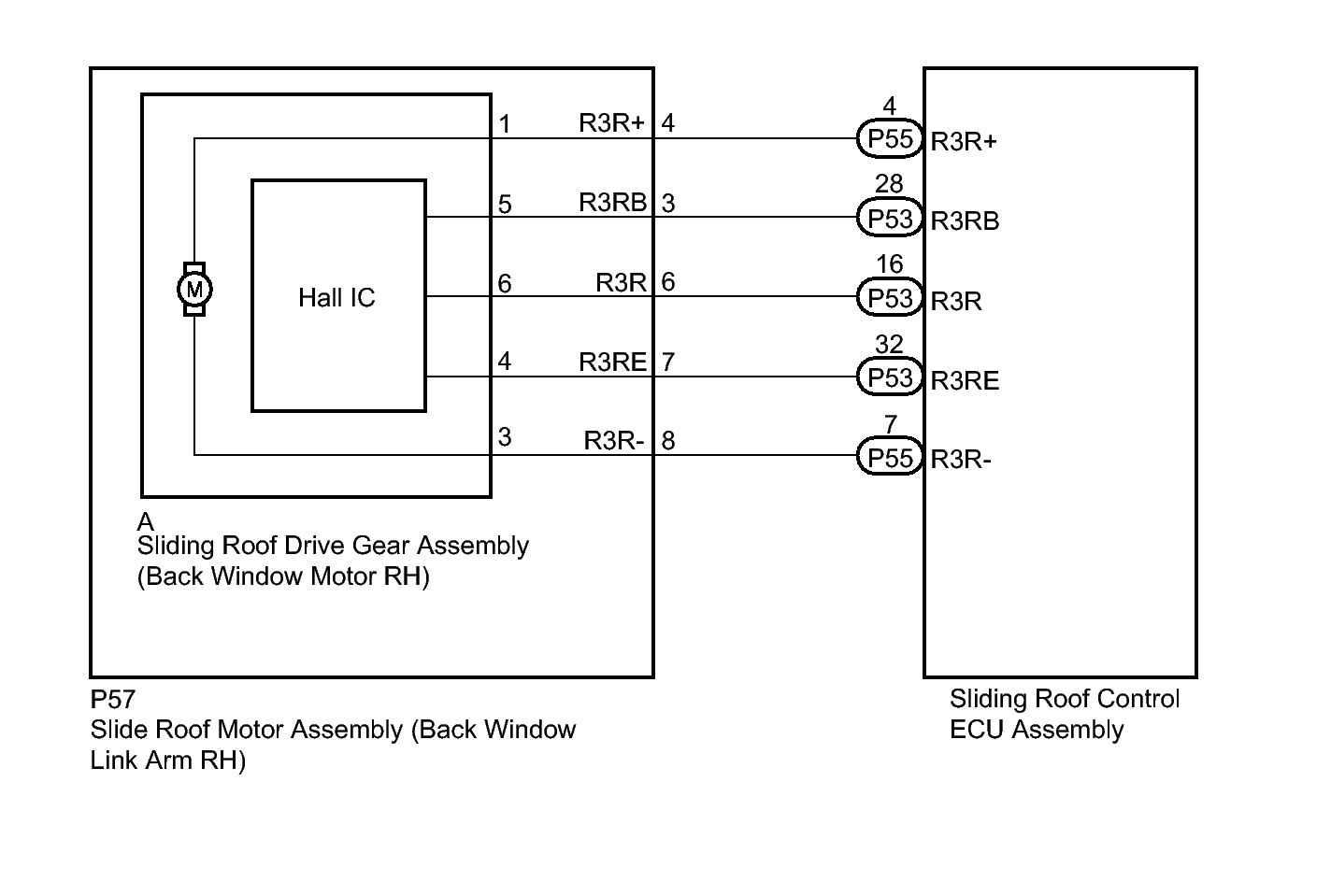

Fig 1: Identifying Back Window Panel RH Pulse Sensor Abnormal Operation - Wiring Diagram
GTY283291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
