DTC B2543: Abnormal Difference between RH and LH Luggage Door Drive Motor Pulse: Wiring Diagram

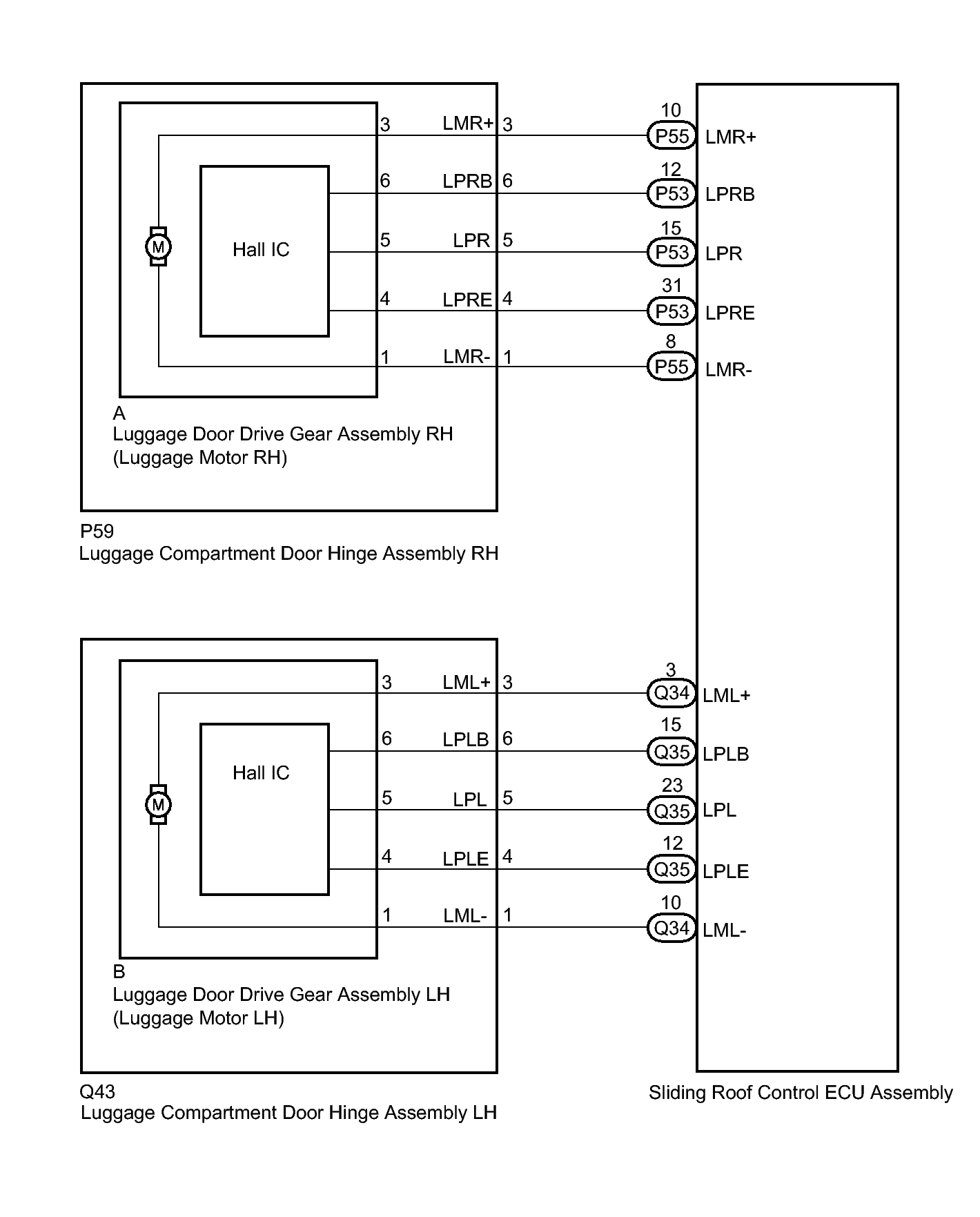

Fig 1: Identifying RH & LH Luggage Door Drive Motor - Wiring Diagram
GTY273243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
