DTC B2536: Luggage Courtesy Switch Malfunction: Wiring Diagram

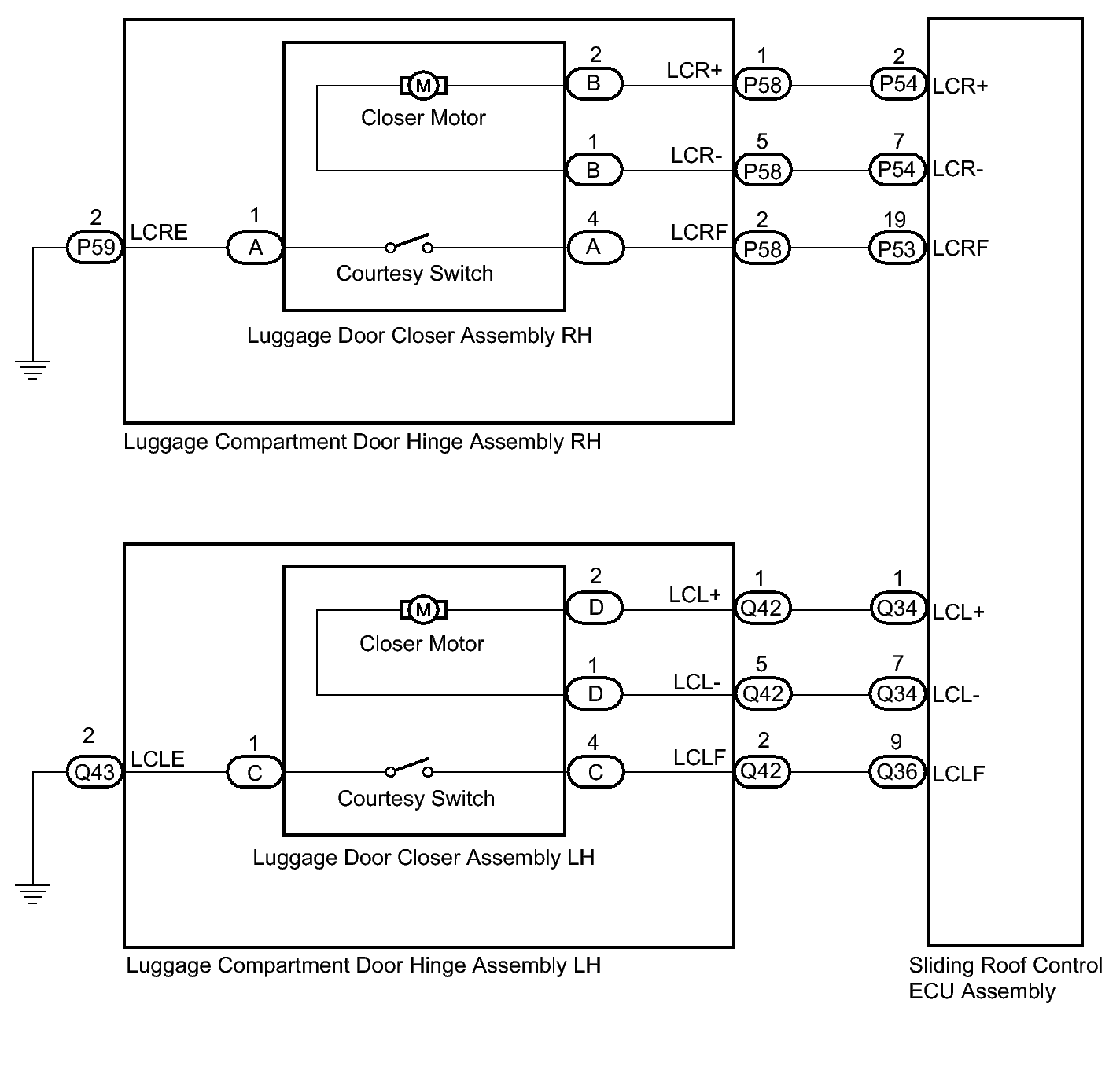

Fig 1: Identifying Luggage Courtesy Switch - Wiring Diagram

GTY283531

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
