Turn Signal Light Circuit: Wiring Diagram

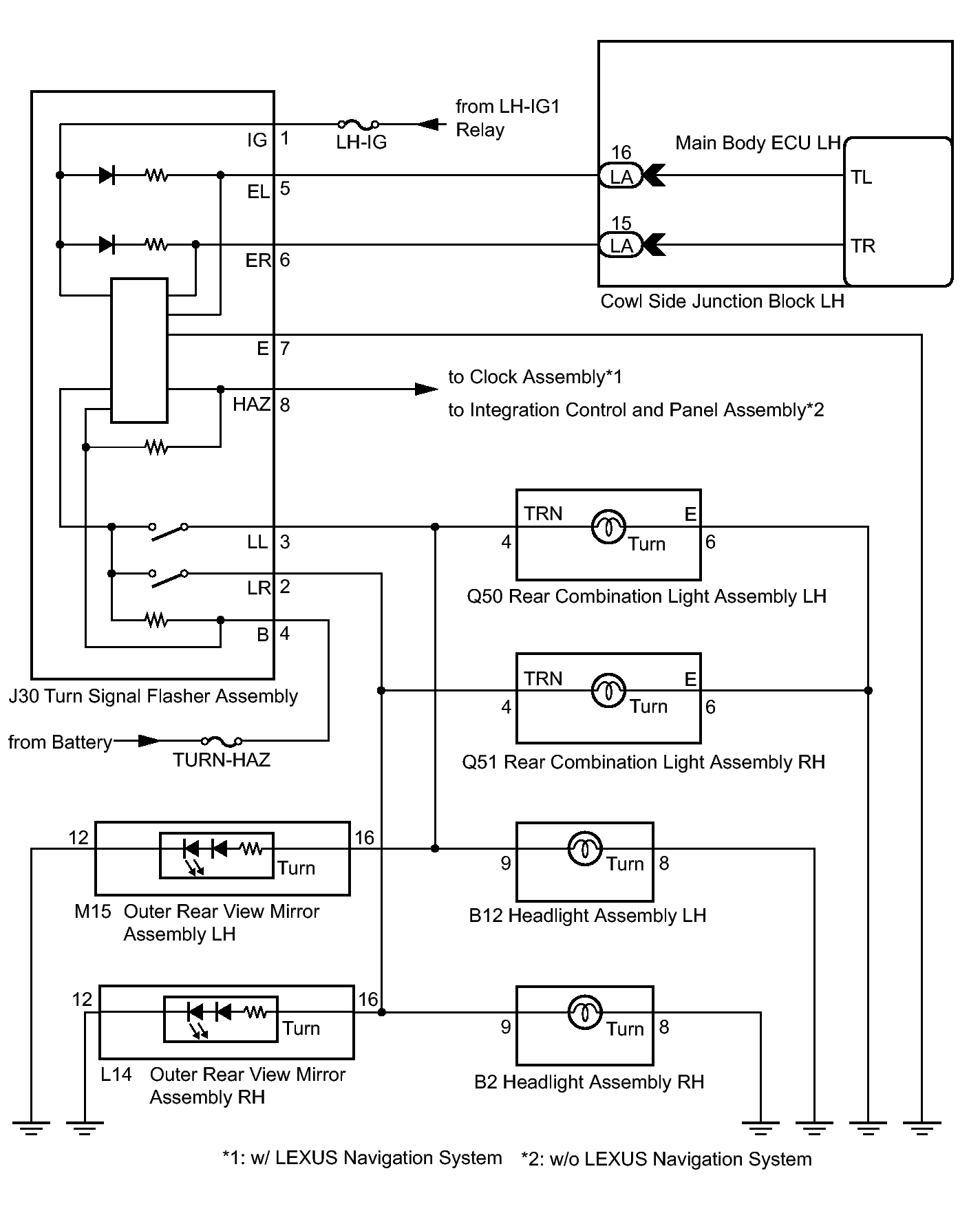

Fig 1: Turn Signal Light Circuit - Wiring Diagram

GTY273695

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
