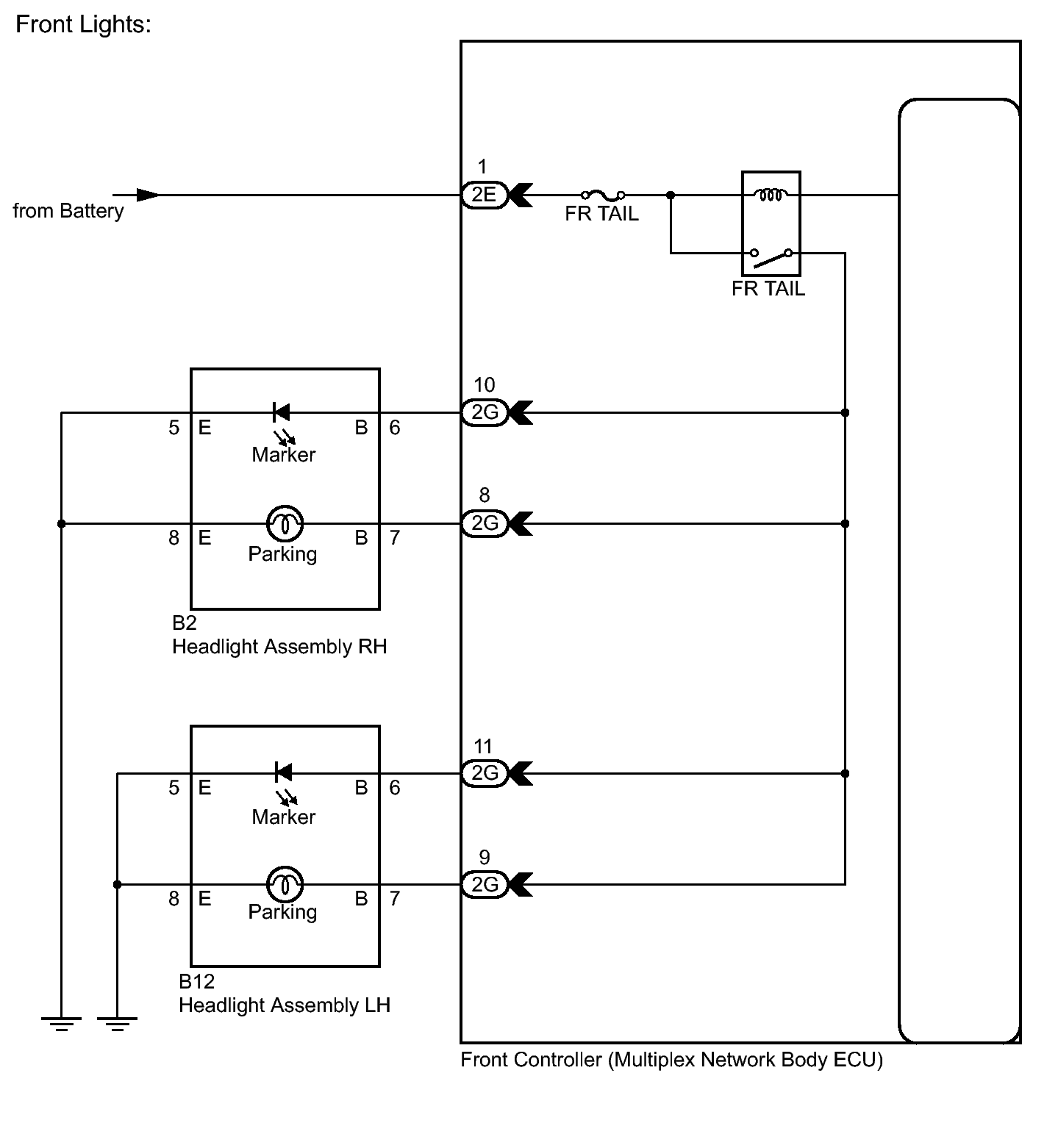

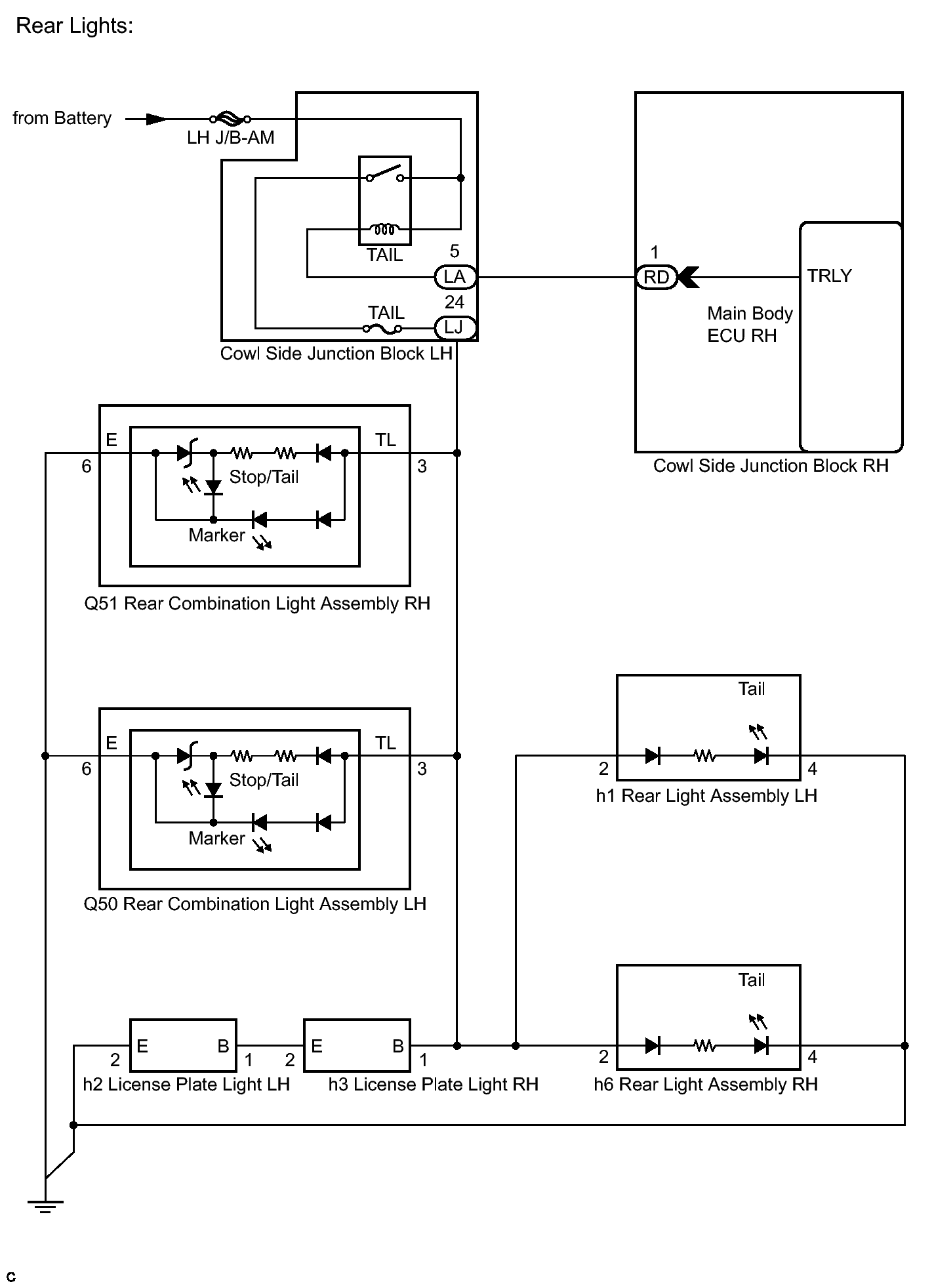

Home >> Lexus >> 2010 >> IS 250C Standard >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lighting (Exterior) (Diagnostic Codes & Circuit Tests) >> Lighting System >> Taillight Circuit >> Wiring Diagram
