High Beam Headlight Circuit: Wiring Diagram

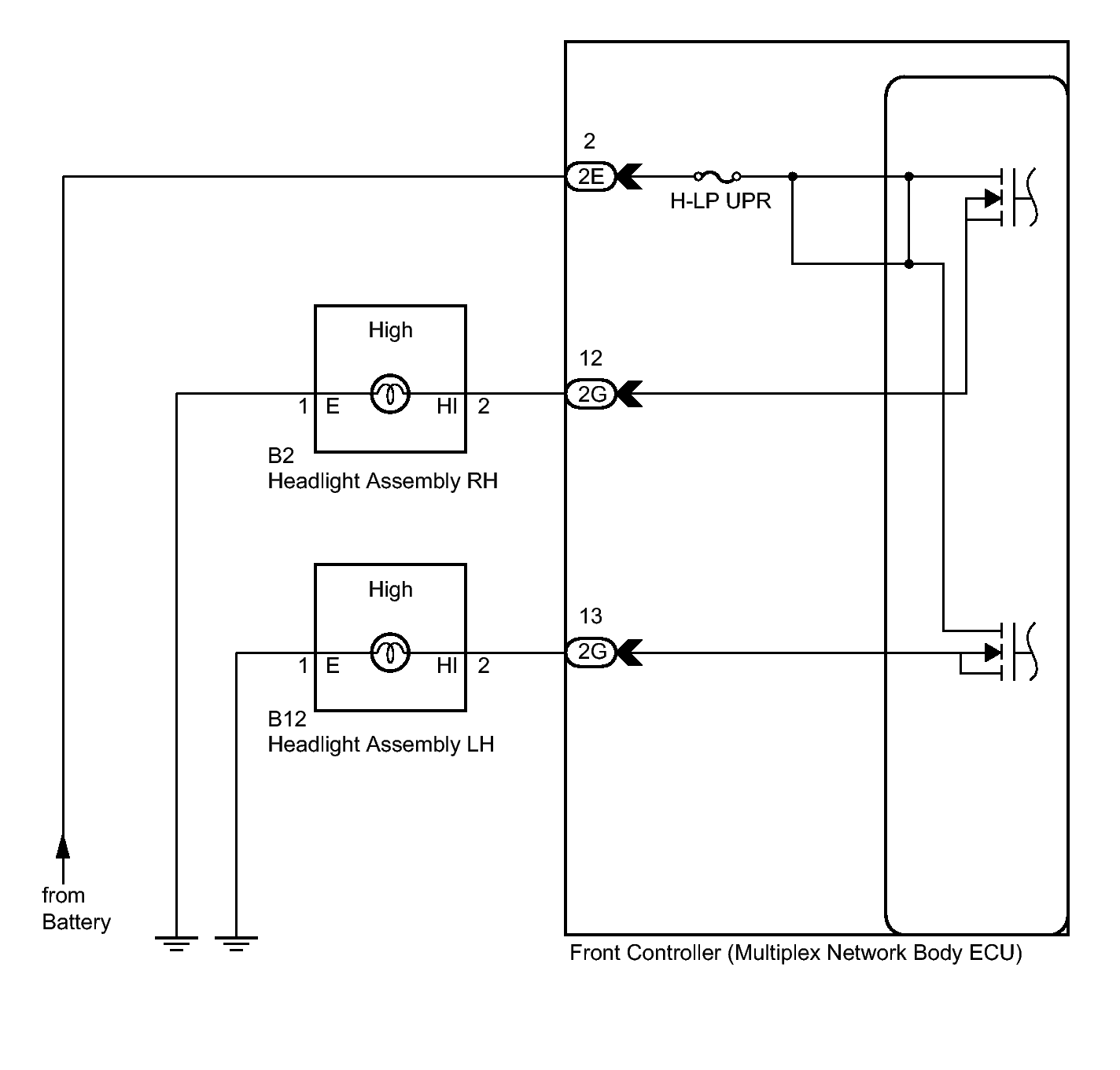

Fig 1: Headlight (Hi-Beam) Circuit - Wiring Diagram

GTY140222

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
