Luggage Compartment Door Opener does not Operate: Wiring Diagram

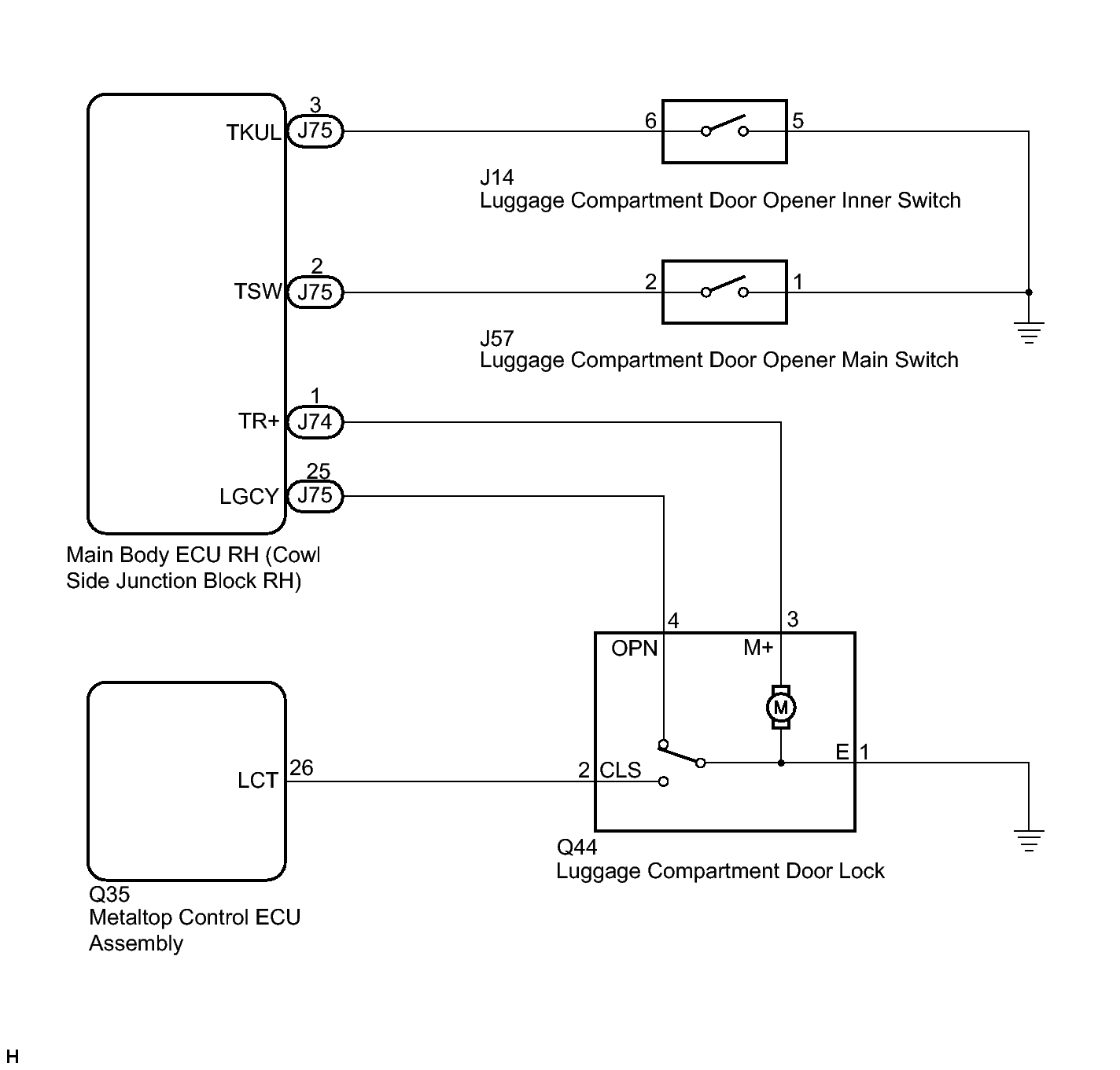

Fig 1: Luggage Compartment Door Opener - Wiring Diagram

GTY266644

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
