Luggage Compartment Door Opener Circuit: Wiring Diagram

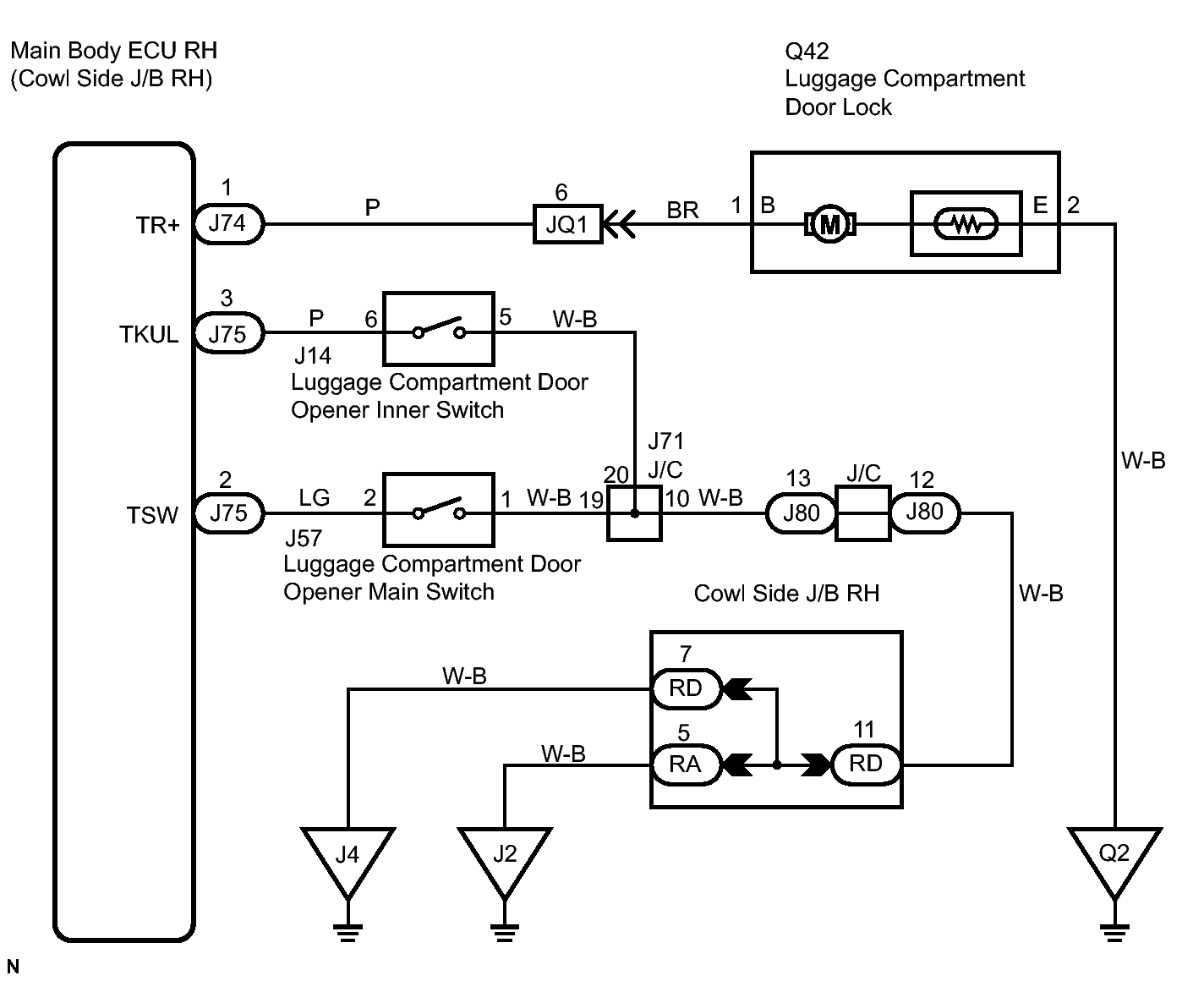

Fig 1: Luggage Compartment Door Lock & Switches -- Wiring Diagram

GTY143785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
