Combination Meter: Installation: Installation

INSTALL COMBINATION METER GLASS
1. Engage the 9 claws and install the combination meter glass.

  Fig 1: Identifying Combination Meter Glass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COMBINATION METER ASSEMBLY
1. Position the combination meter assembly on the steering column as shown in the illustration.

  Fig 2: Positioning Combination Meter Assembly On Steering Column
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not damage the instrument panel safety pad or combination meter assembly.
2. Connect the connectors.
3. Engage the 2 positioning pins of the combination meter assembly.

  Fig 3: Identifying Combination Meter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Engage the 2 claws and install the combination meter assembly.
5. Remove the protective tape.
INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
1. Install the 2 clips.

  Fig 4: Identifying Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the instrument cluster finish panel sub-assembly with the 2 screws.

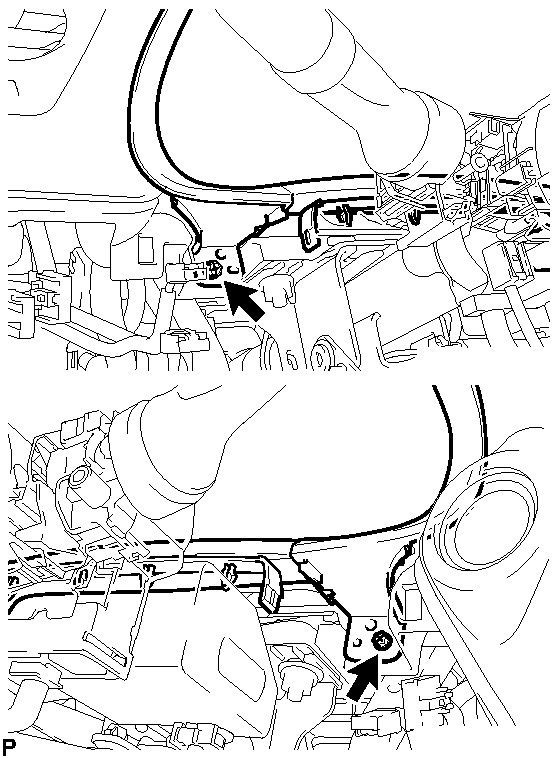

  Fig 5: Identifying Instrument Cluster Finish Panel Sub-Assembly With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 25
INSTALL SIDE INSTRUMENT PANEL LH . Refer to INSTALLATION - Step 27
INSTALL FRONT DOOR OPENING TRIM COVER LH . Refer to INSTALLATION - Step 28
INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination) . Refer to INSTALLATION - Step 88
INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination) . Refer to INSTALLATION - Step 90
INSTALL STEERING COLUMN COVER (for Manual Tilt and Manual Telescopic Steering Column) . Refer to INSTALLATION - Step 2
INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic Steering Column) . Refer to INSTALLATION - Step 3
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
