Shift Solenoid Valve: Components: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Shift Solenoid Valve Replacement Components With Torque Specifications (1 Of 3)
GTY139834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

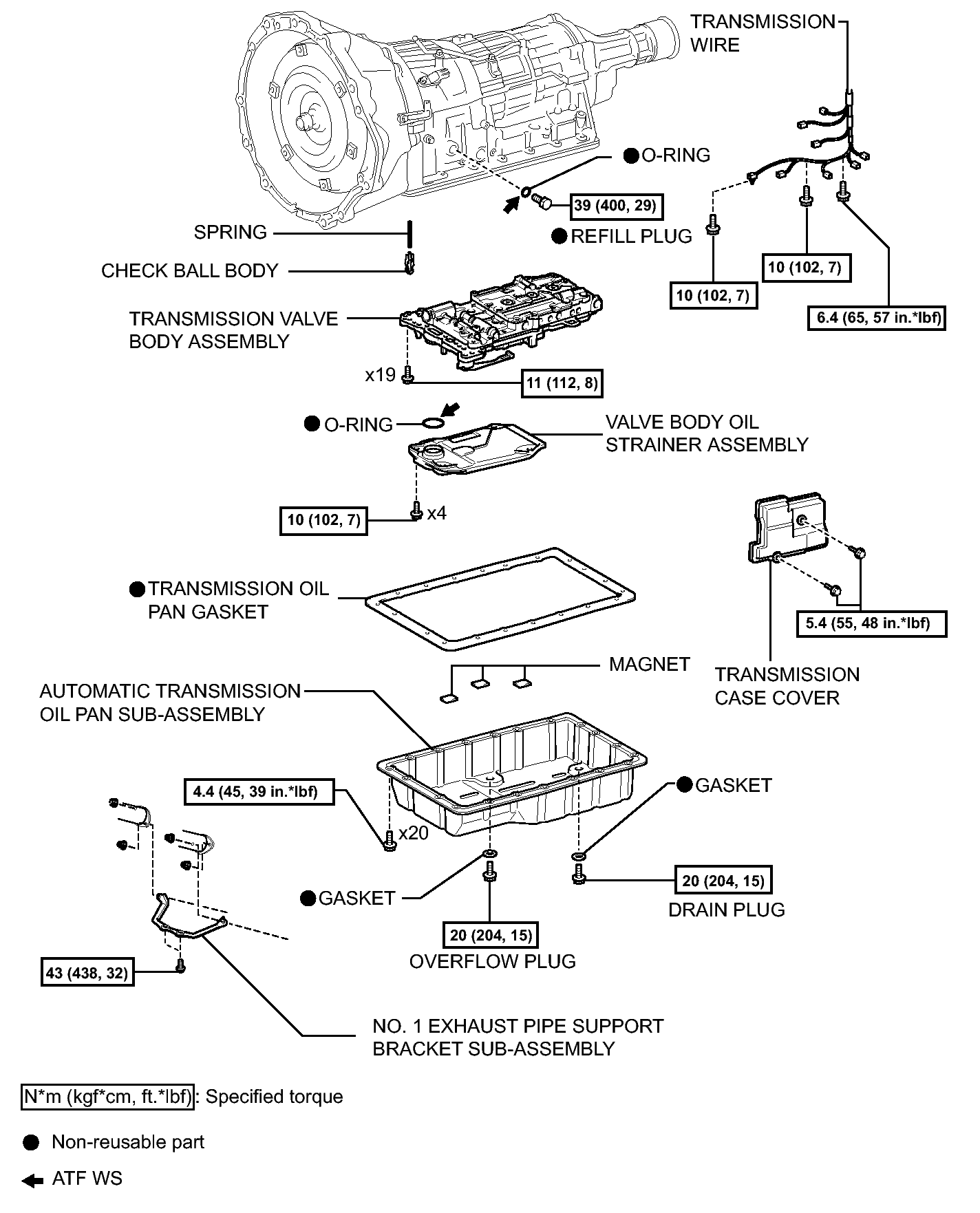

Fig 1: Identifying Shift Solenoid Valve Replacement Components With Torque Specifications (2 Of 3)
GTY112616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

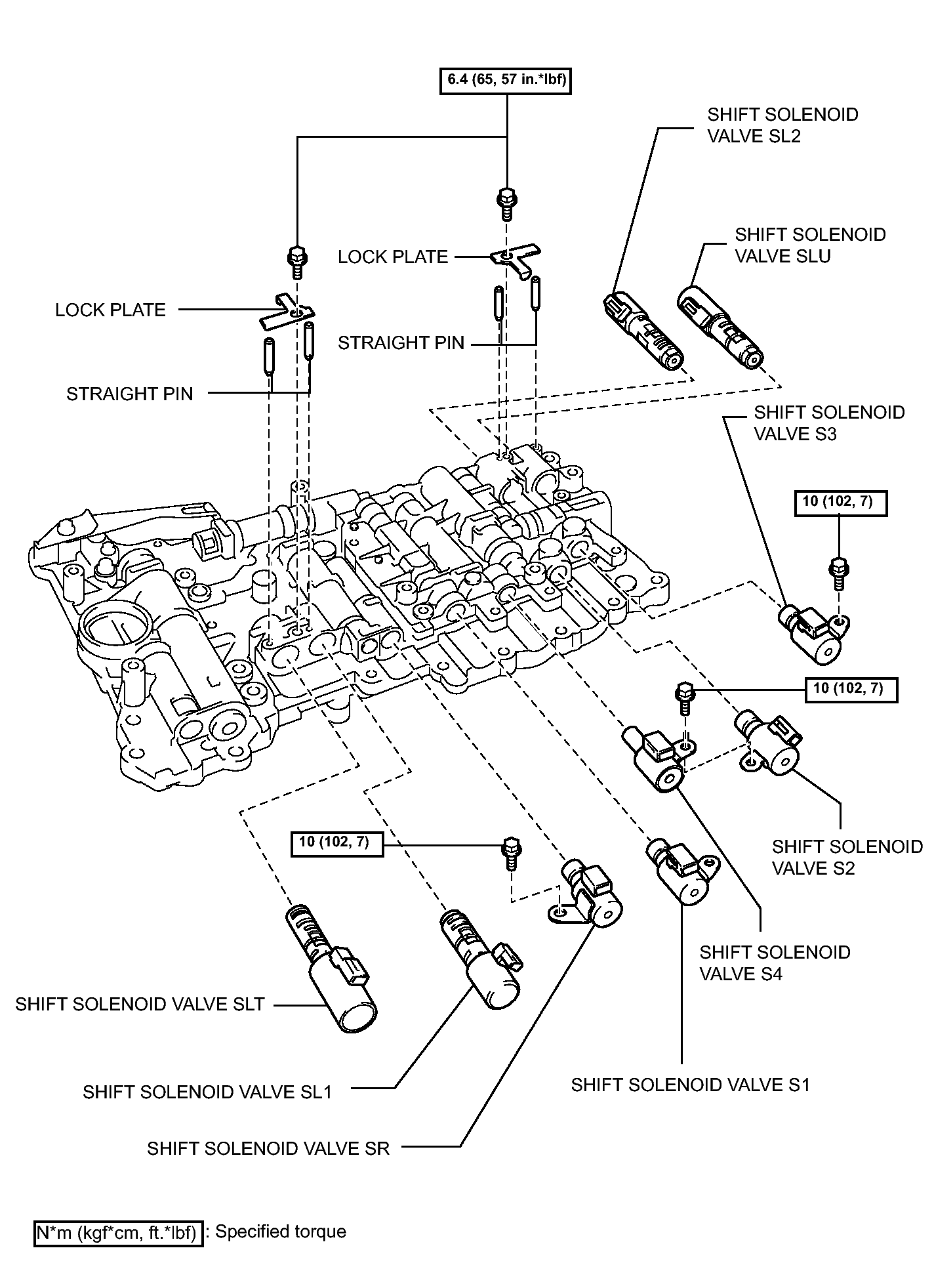

Fig 1: Identifying Shift Solenoid Valve Replacement Components With Torque Specifications (3 Of 3)
GTY112818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
