Section 2 (Automatic Transmission (A960E) (Service Information))
>>
Automatic Transmission Unit
>>
Components
>>
Illustration
Automatic Transmission Unit: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

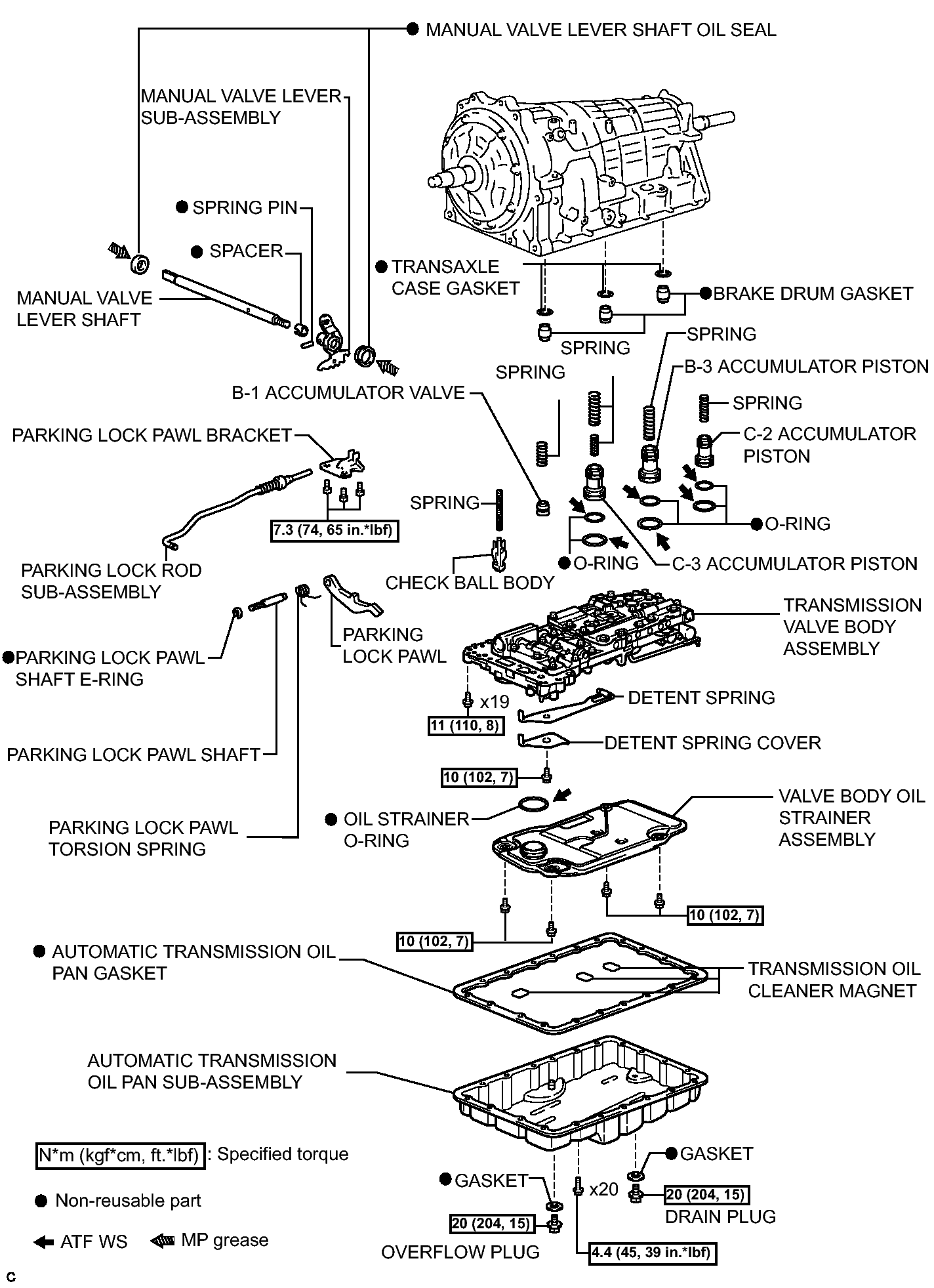

Fig 1: Exploded View Of Automatic Transmission Unit Replacement Components With Torque Specifications (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Exploded View Of Automatic Transmission Unit Replacement Components With Torque Specifications (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Exploded View Of Automatic Transmission Unit Replacement Components With Torque Specifications (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Exploded View Of Automatic Transmission Unit Replacement Components With Torque Specifications (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Exploded View Of Automatic Transmission Unit Replacement Components With Torque Specifications (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
