Cowl Side Junction Block RH Inner Circuit

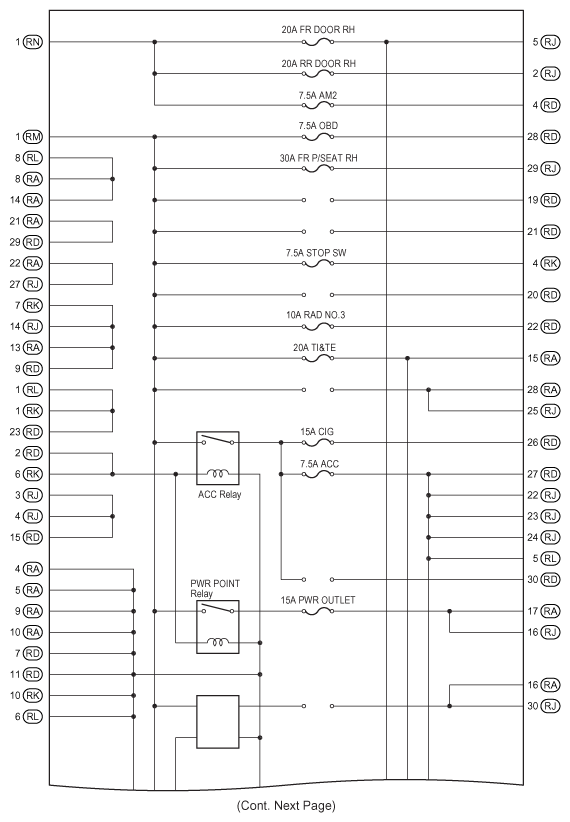

Fig 1: Cowl Side J/B RH Inner Circuit Diagram (1 Of 2) With Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COWL SIDE J/B RH INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
ACC Relay
PWR Point Relay

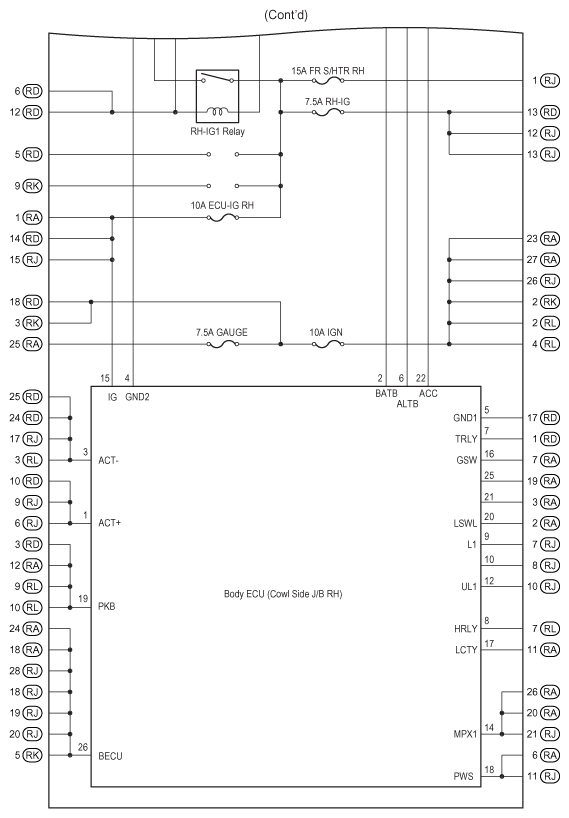

Fig 2: Cowl Side J/B RH Inner Circuit Diagram (2 Of 2) With Relays

COWL SIDE J/B RH INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
RH-IG1 Relay
