Cowl Side Junction Block LH Inner Circuit

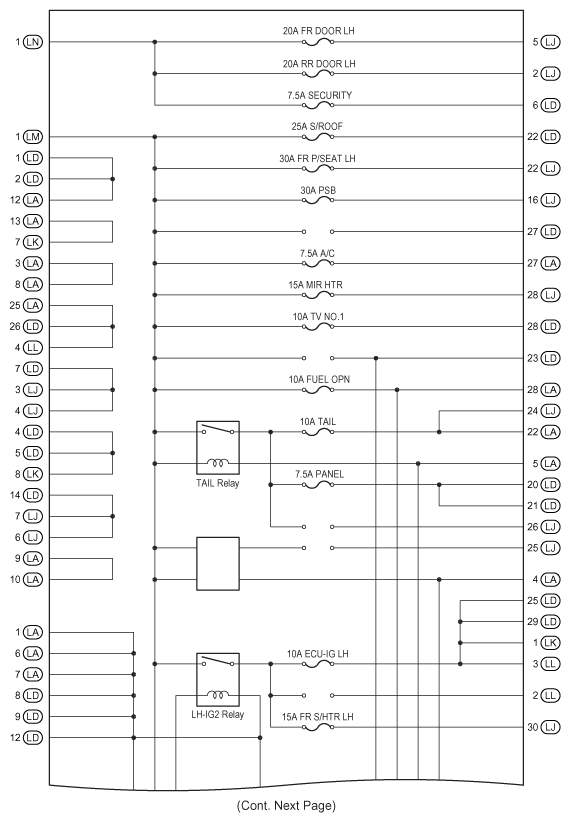

Fig 1: Cowl Side J/B LH Inner Circuit Diagram (1 Of 2) With Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COWL SIDE J/B LH INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
Tail Relay
LH-IG2 Relay

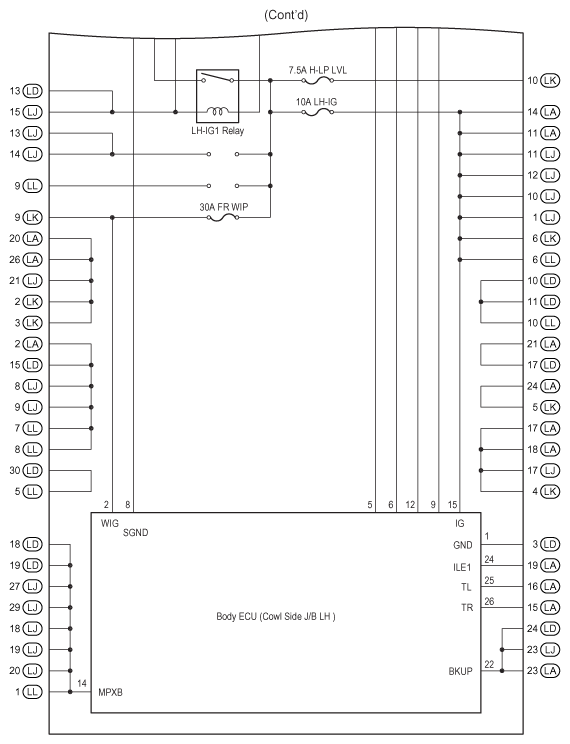

Fig 2: Cowl Side J/B LH Inner Circuit Diagram (2 Of 2) With Relays

COWL SIDE J/B LH INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
LH-IG1 Relay
