Front Crankshaft Oil Seal: Components: Illustration

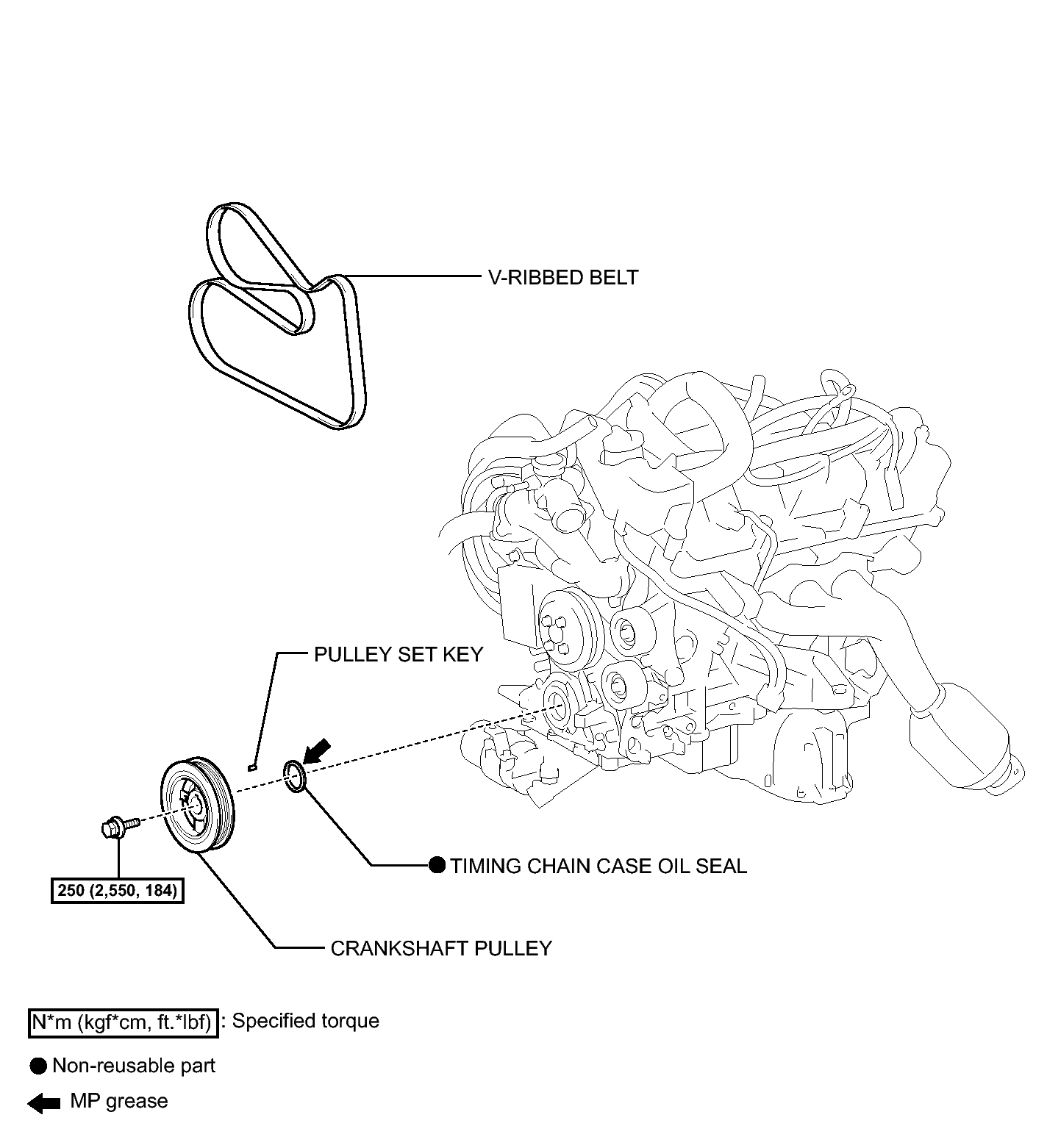

Fig 1: Identifying Front Crankshaft Oil Seal Replacement Components With Torque Specifications

GTY136163

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
