Home >> Lexus >> 2010 >> IS 250 AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Motors, Switches, Relays >> OEM Overall Electrical Wiring Diagram >> Overall Electrical Wiring Diagram >> Notes

Overall Electrical Wiring Diagram: Notes

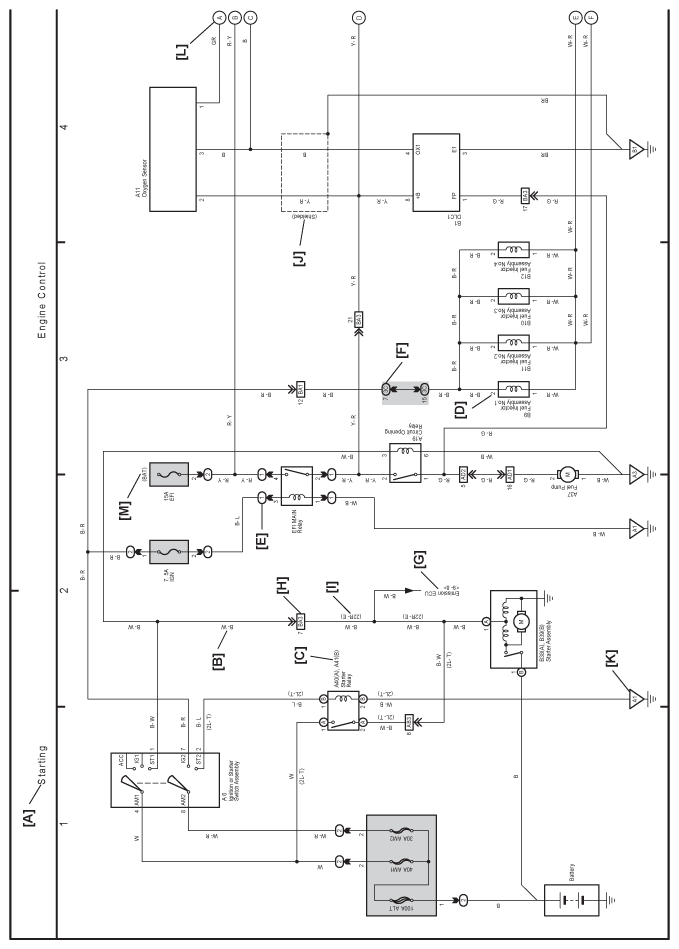

Fig 1: Example Of Electrical Wiring Diagram
G07559342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

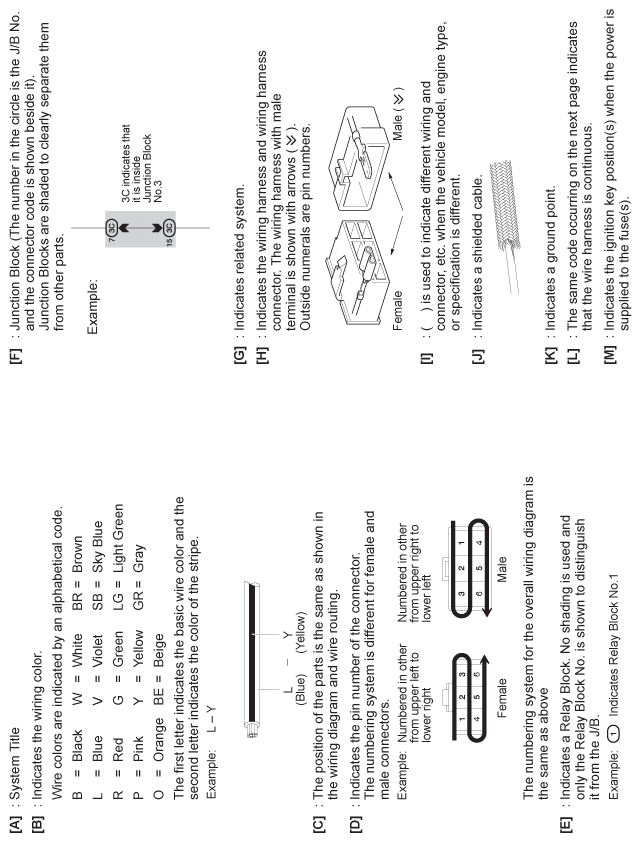

Fig 2: Electrical Wiring Diagram Legends
G07559343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
