Multiplex Communication System (AVC-LAN), Multiplex Communication System (CAN)

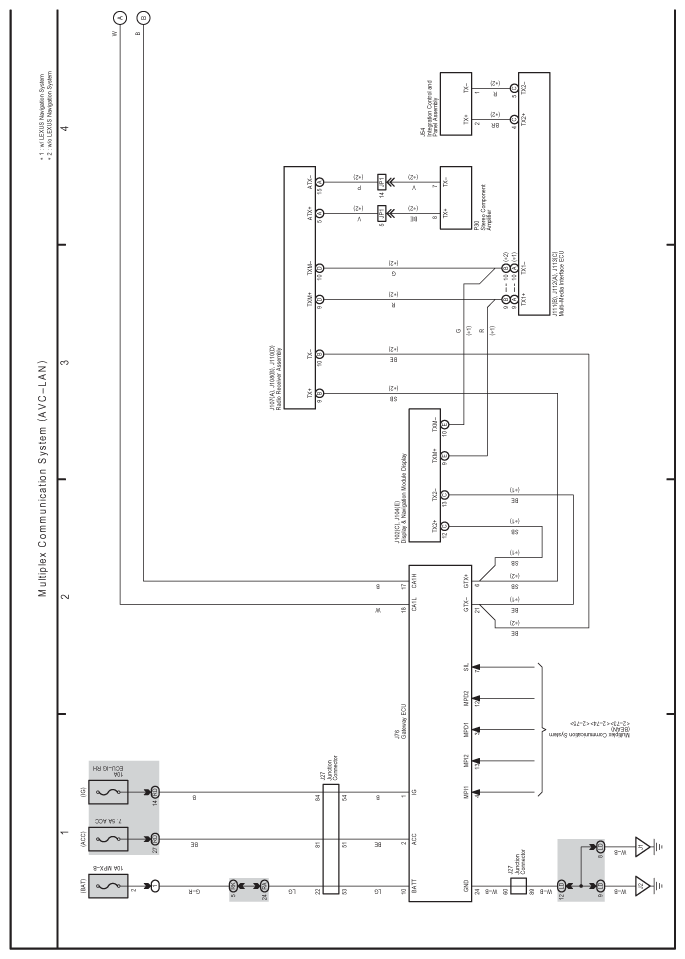

Fig 1: Multiplex Communication System (AVC-LAN) Electrical Wiring Diagram
G07559373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

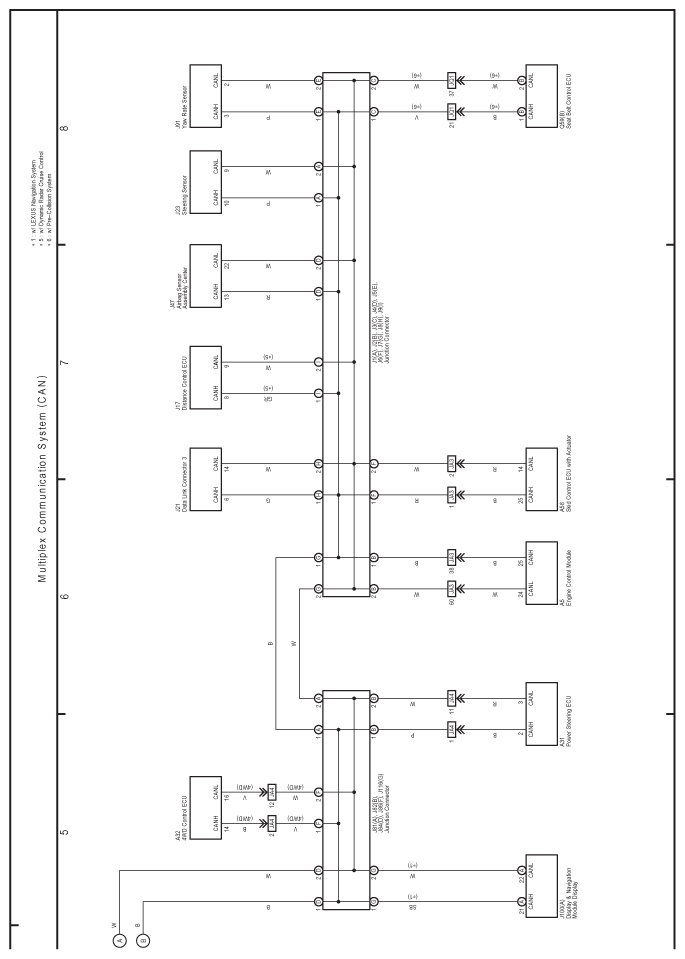

Fig 2: Multiplex Communication System (CAN) Electrical Wiring Diagram
G07559374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
