Audio System (w/o LEXUS Navigation System)

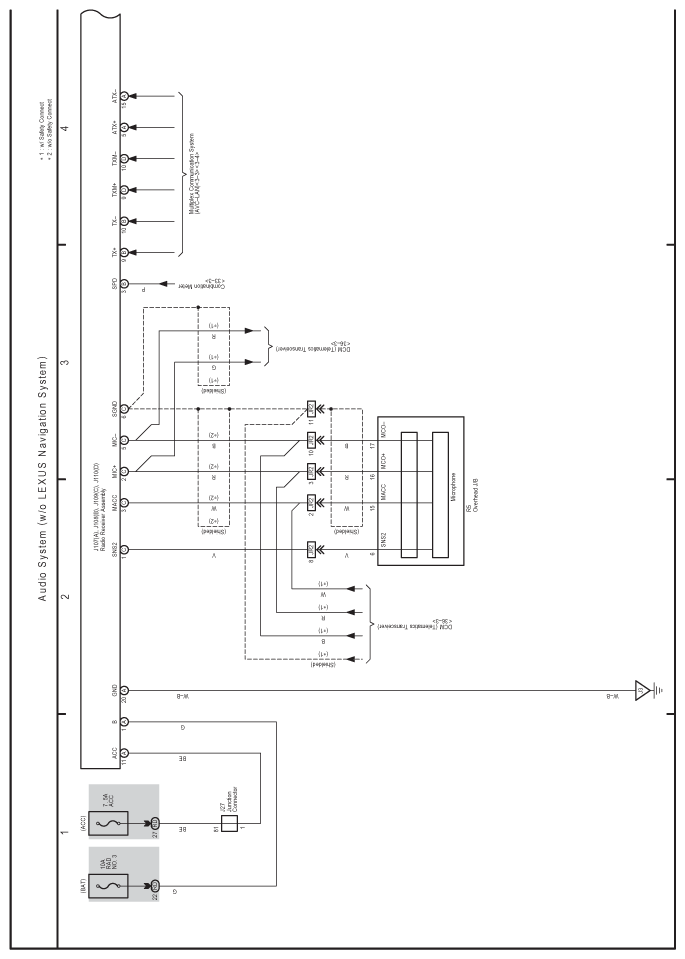

Fig 1: Audio System (W/O Lexus Navigation System) Electrical Wiring Diagram (1 Of 4)
G07559436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

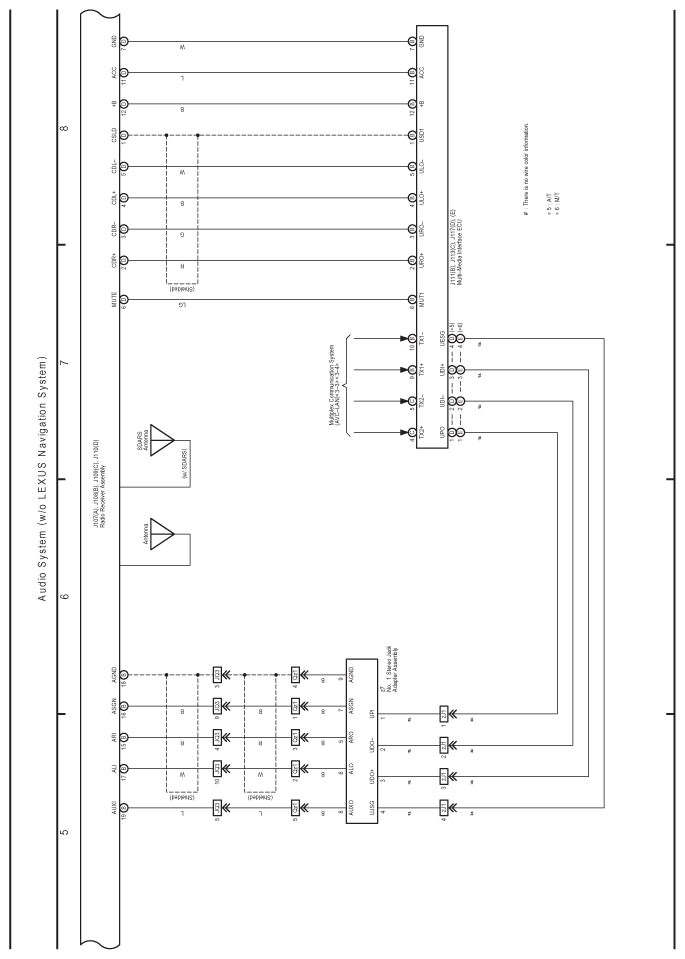

Fig 2: Audio System (W/O Lexus Navigation System) Electrical Wiring Diagram (2 Of 4)
G07559437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

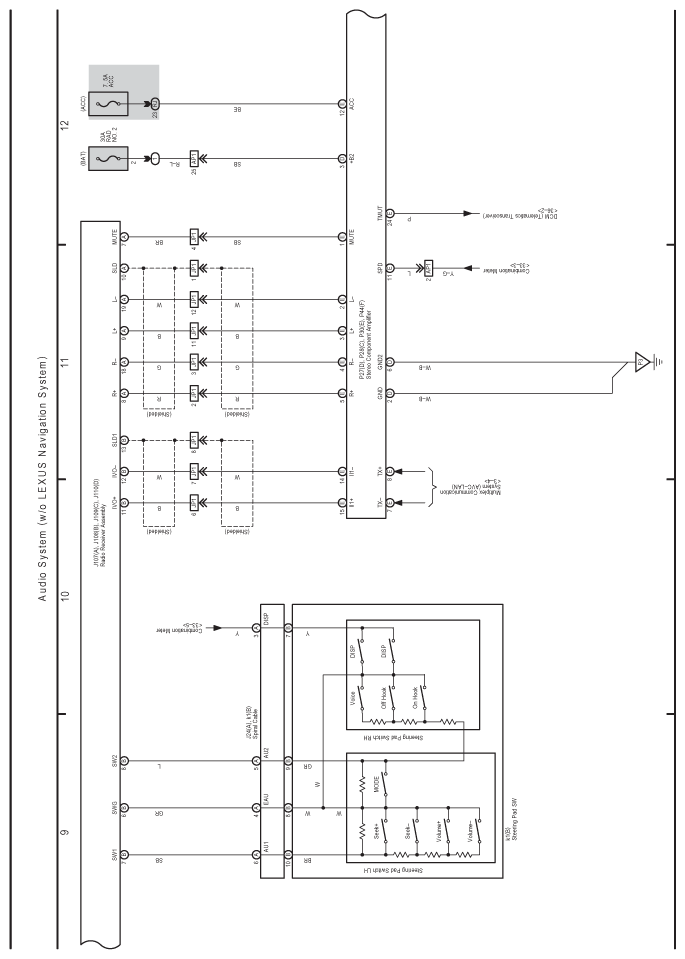

Fig 3: Audio System (W/O Lexus Navigation System) Electrical Wiring Diagram (3 Of 4)
G07559438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

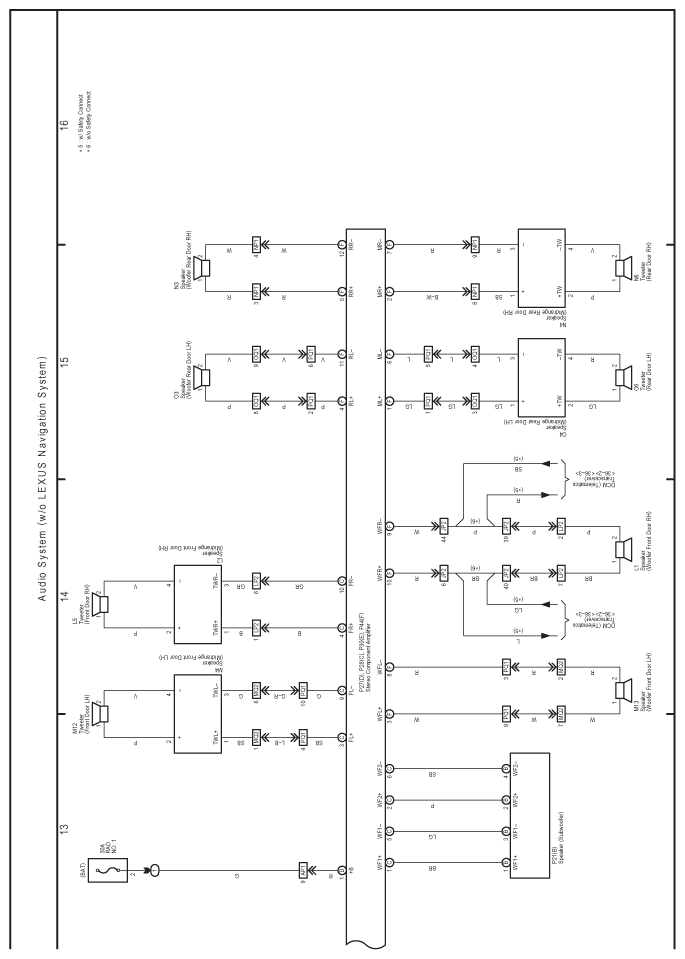

Fig 4: Audio System (W/O Lexus Navigation System) Electrical Wiring Diagram (4 Of 4)
G07559439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
