Adaptive Front-Lighting System

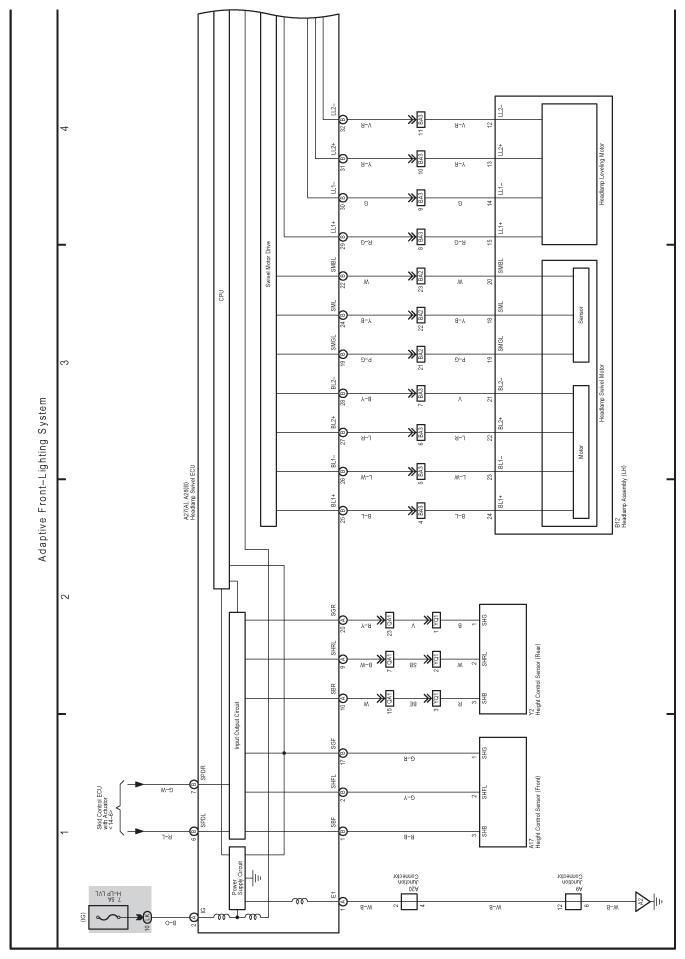

Fig 1: Adaptive Front-Lighting System Electrical Wiring Diagram (1 Of 2)
G07559407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

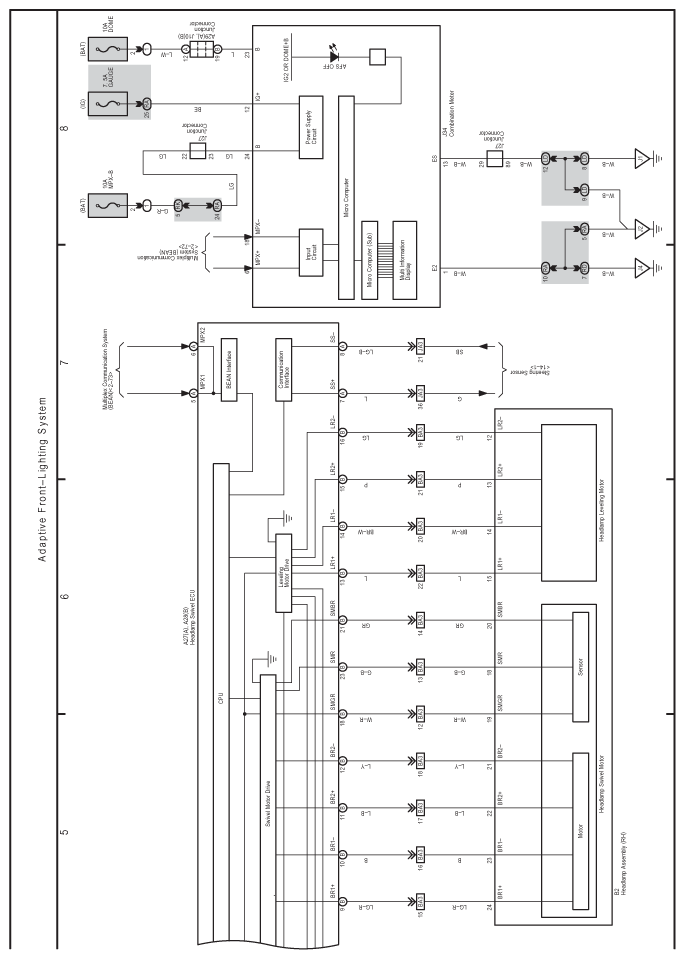

Fig 2: Adaptive Front-Lighting System Electrical Wiring Diagram (2 Of 2)
G07559408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
