Parts Location: Illustration

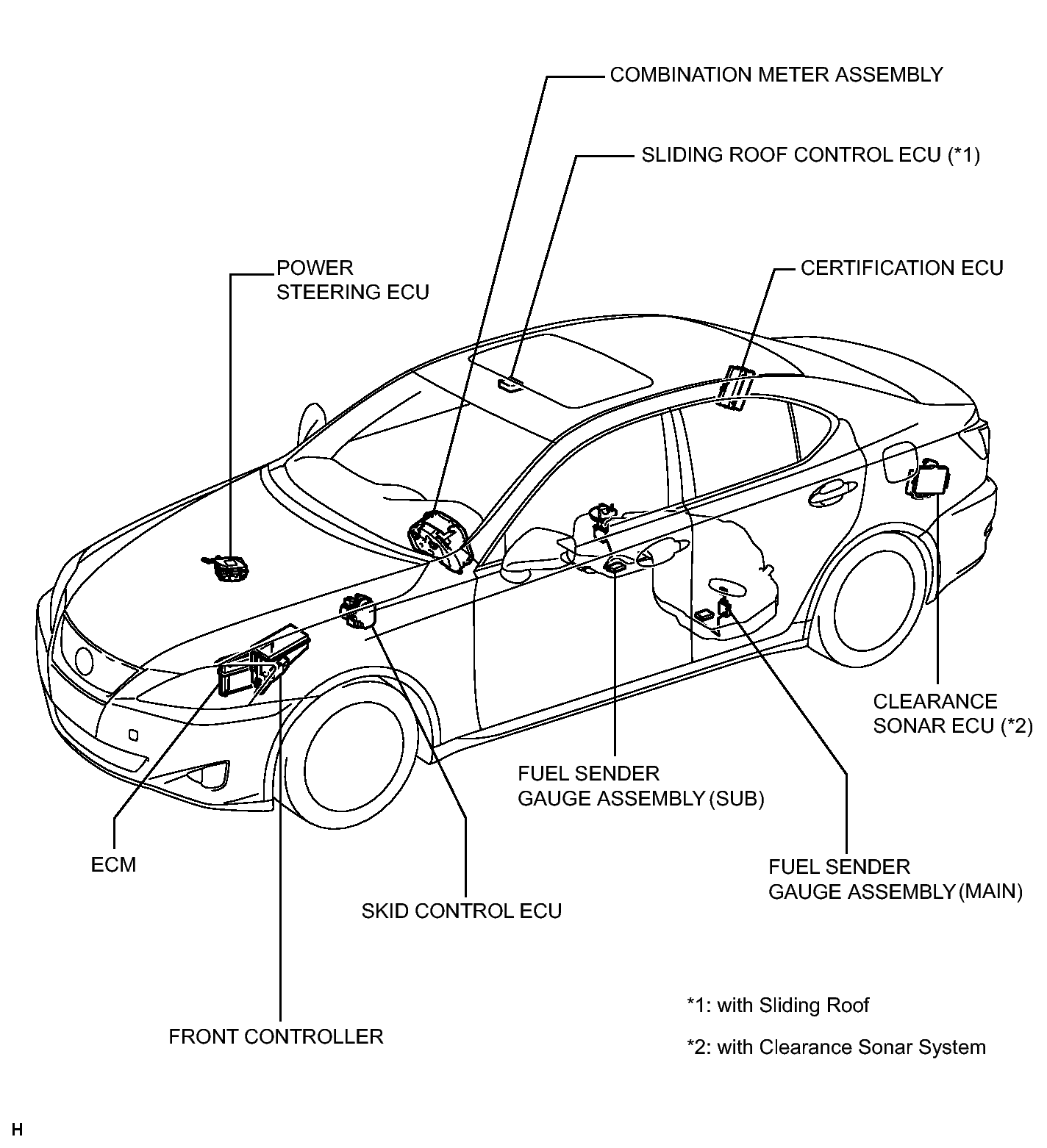

Fig 1: Identifying Meter/Gauge System Replacement Components (1 Of 3)
GTY121052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

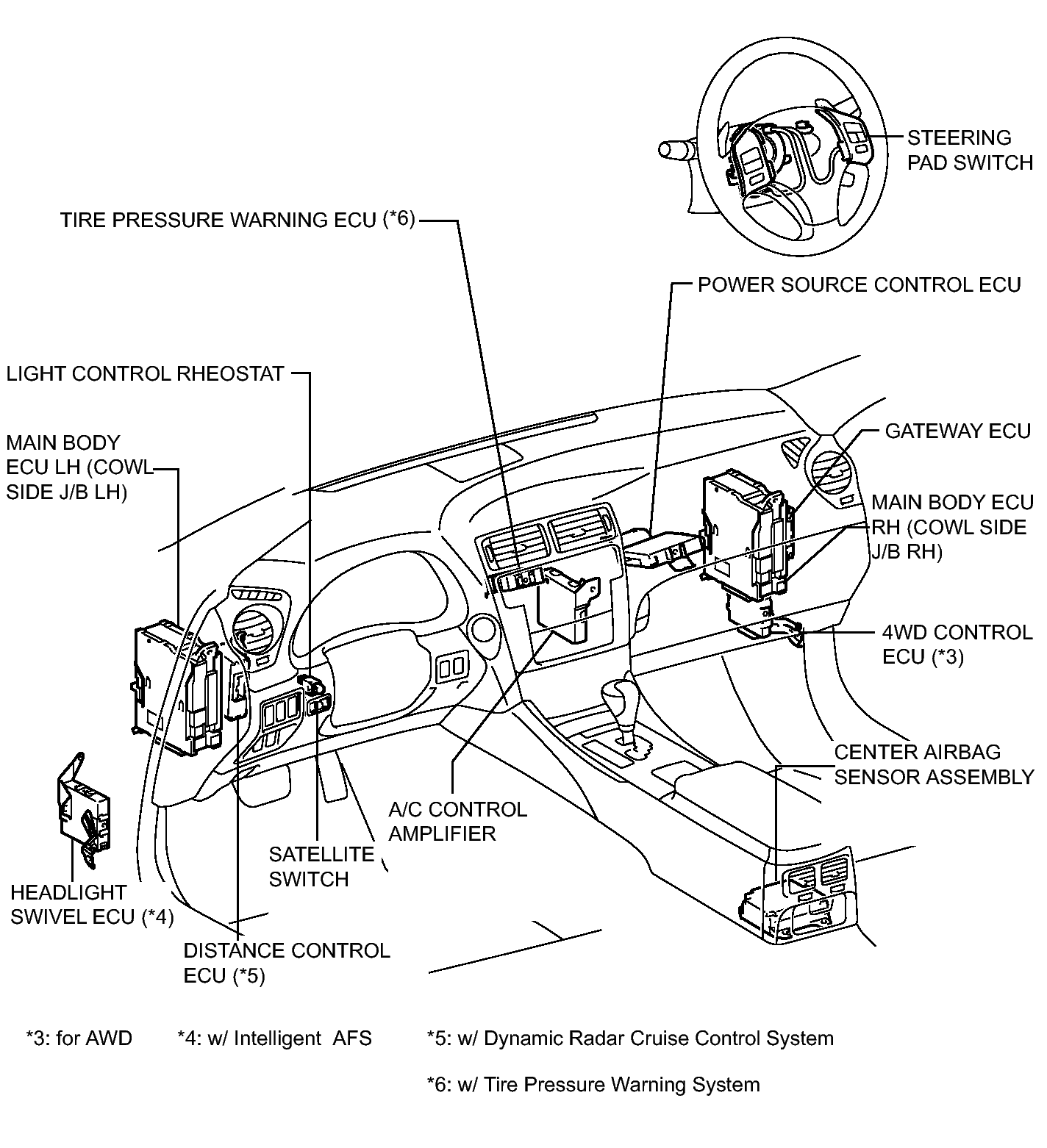

Fig 1: Identifying Meter/Gauge System Replacement Components (2 Of 3)
GTY287830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

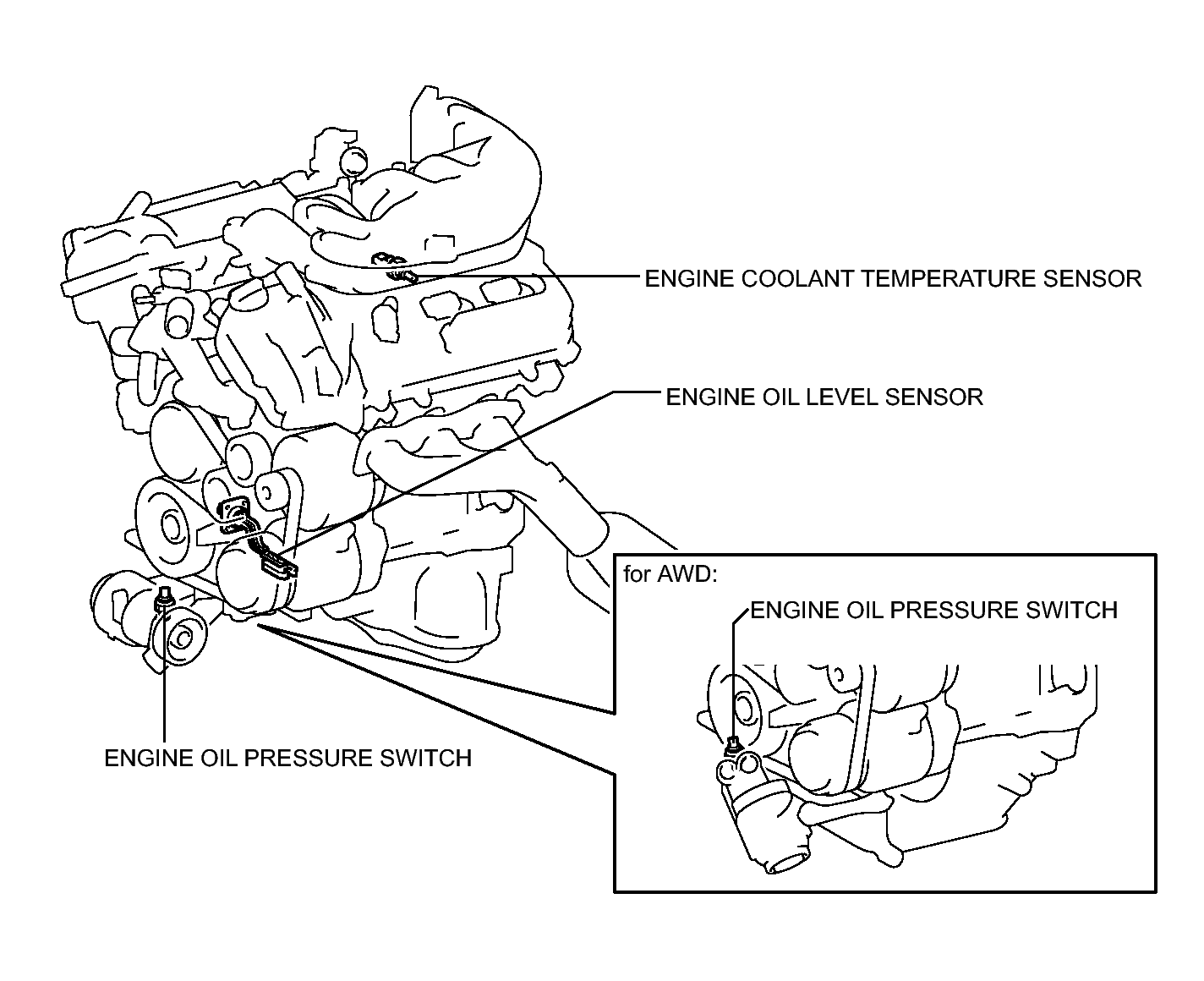

Fig 1: Identifying Meter/Gauge System Replacement Components (3 Of 3)
GTY267396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
