Fuel Receiver Gauge Malfunction: Wiring Diagram

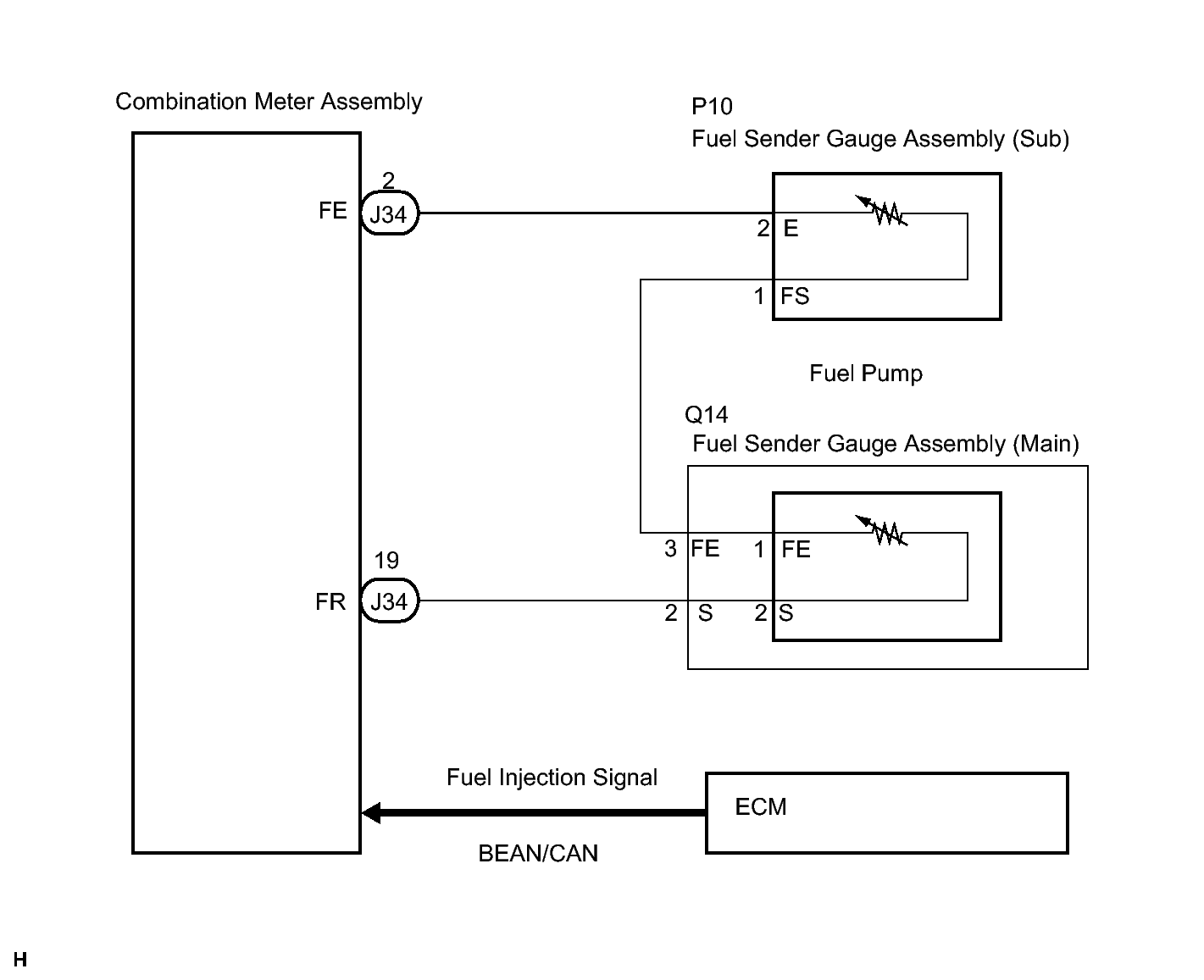

Fig 1: View Of Fuel Receiver Gauge Wiring Diagram

GTY150965

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
