Remote Control Mirror (w/o Seat Position Memory)

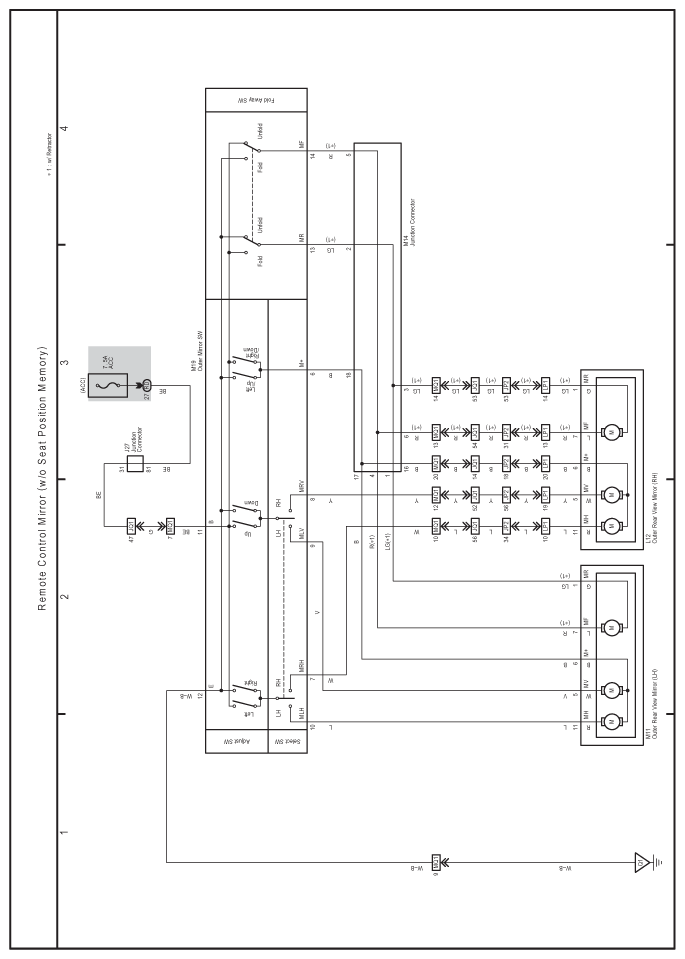

Fig 1: Remote Control Mirror (W/O Seat Position Memory) Electrical Wiring Diagram

G07559414

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
