Power Seat (Driver's Seat w/o Seat Position Memory)

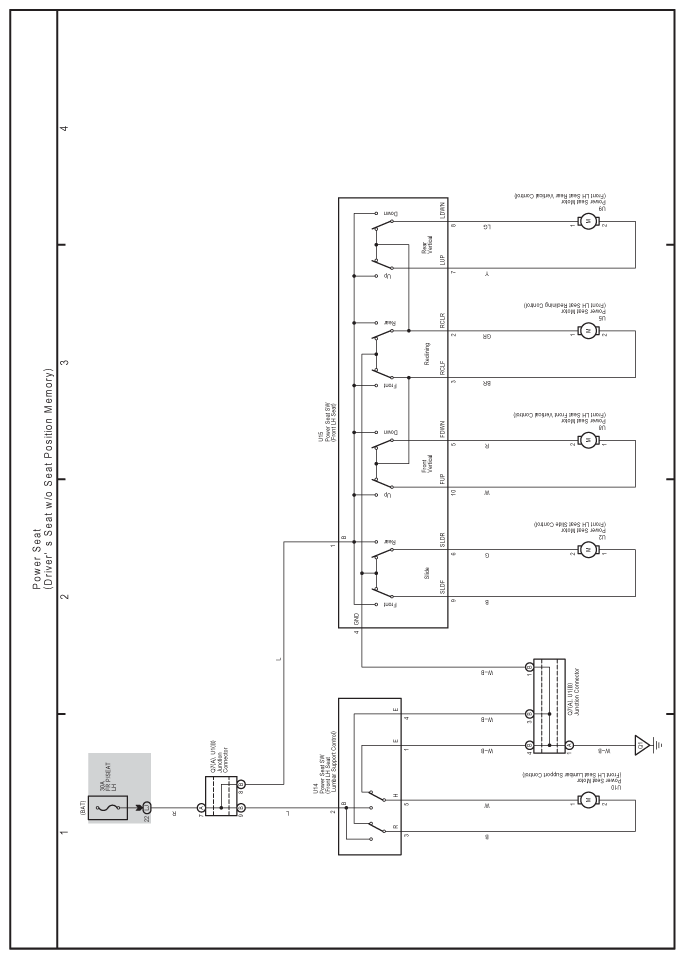

Fig 1: Power Seat (Driver's Seat W/O Seat Position Memory) Electrical Wiring Diagram

G07559416

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
