Power Seat (Driver's Seat w/ Seat Position Memory), Power Seat (Front Passenger's Seat w/ Seat Position Memory)

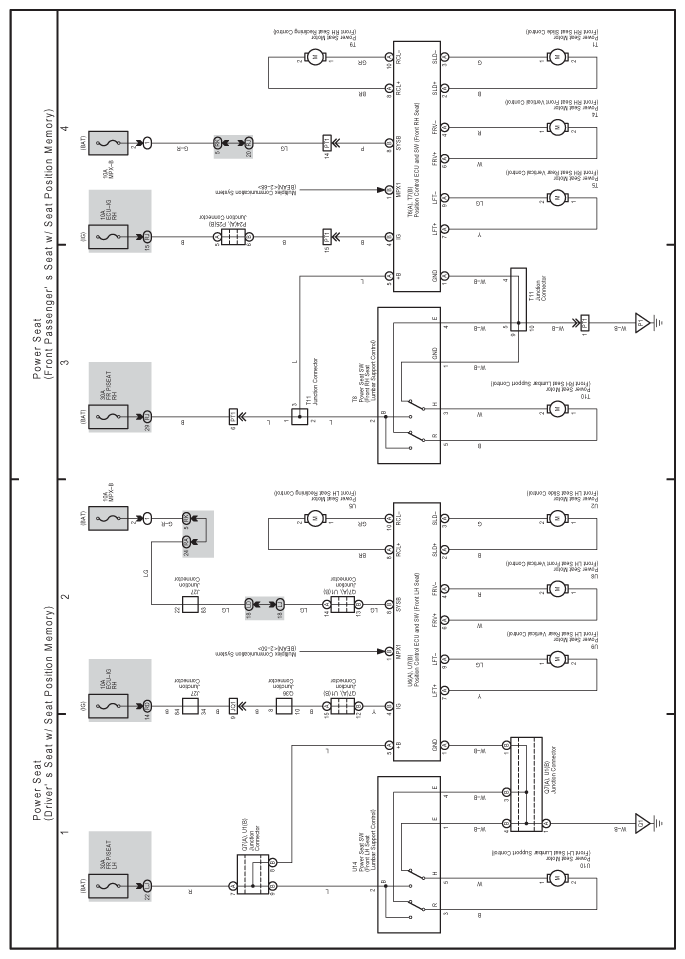

Fig 1: Power Seat (Driver's Seat And Front Passenger's W/ Seat Position Memory) Electrical Wiring Diagram
G07559415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
