Multiplex Communication System (BEAN)

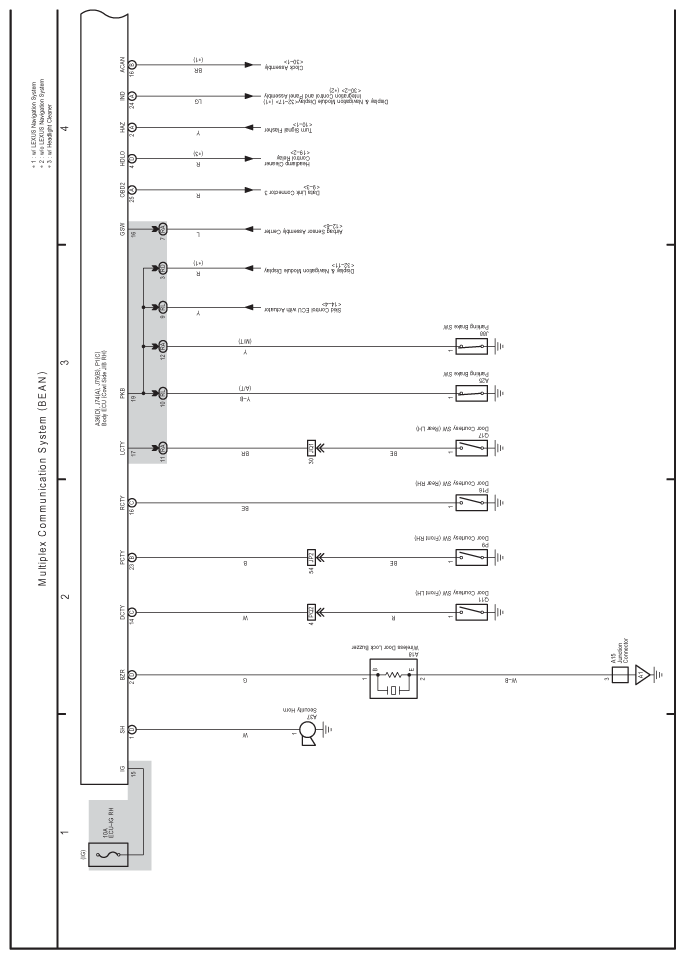

Fig 1: Multiplex Communication System (BEAN) Electrical Wiring Diagram (1 Of 26)

G07559347

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

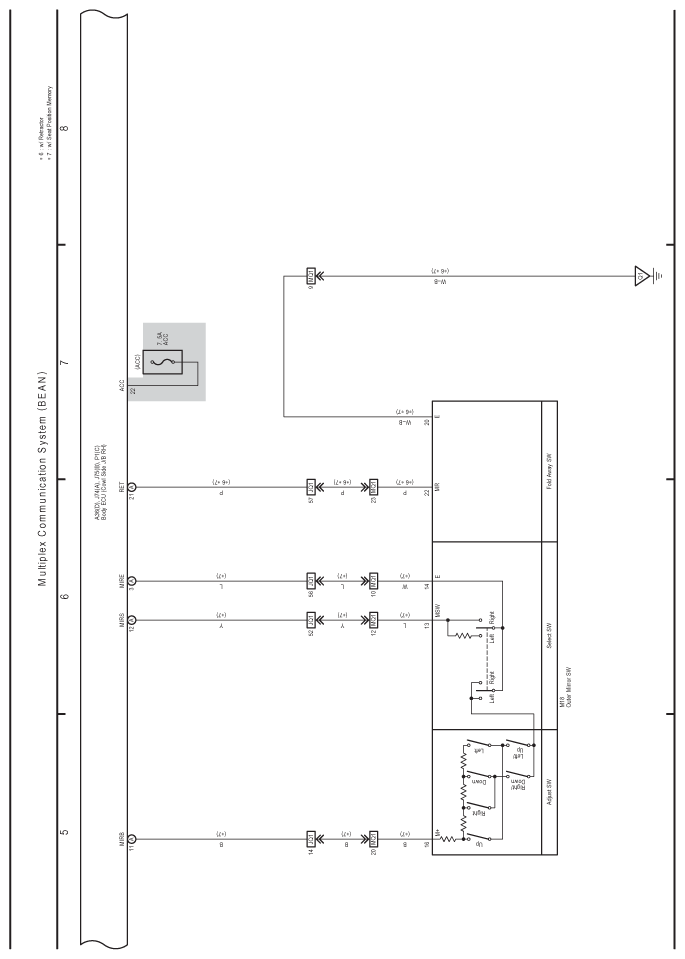

Fig 2: Multiplex Communication System (BEAN) Electrical Wiring Diagram (2 Of 26)

G07559348

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

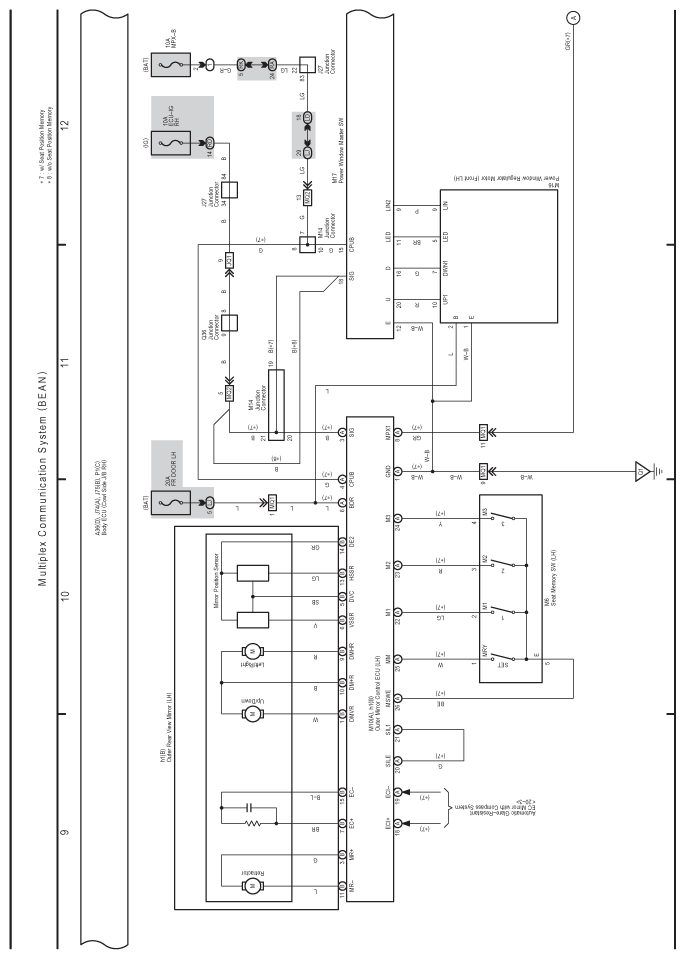

Fig 3: Multiplex Communication System (BEAN) Electrical Wiring Diagram (3 Of 26)

G07559349

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

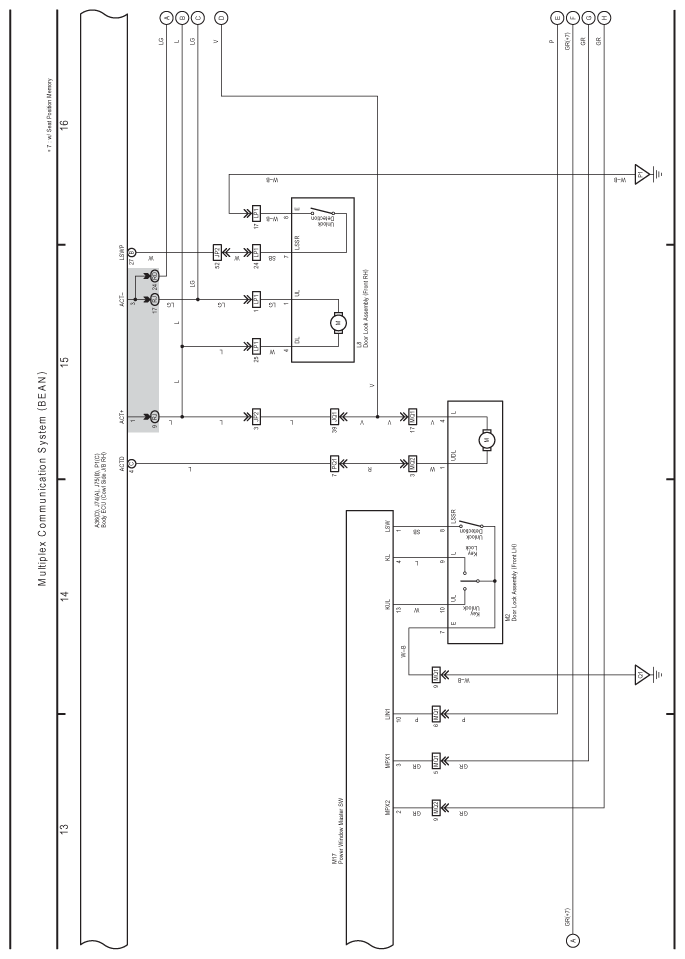

Fig 4: Multiplex Communication System (BEAN) Electrical Wiring Diagram (4 Of 26)

G07559350

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

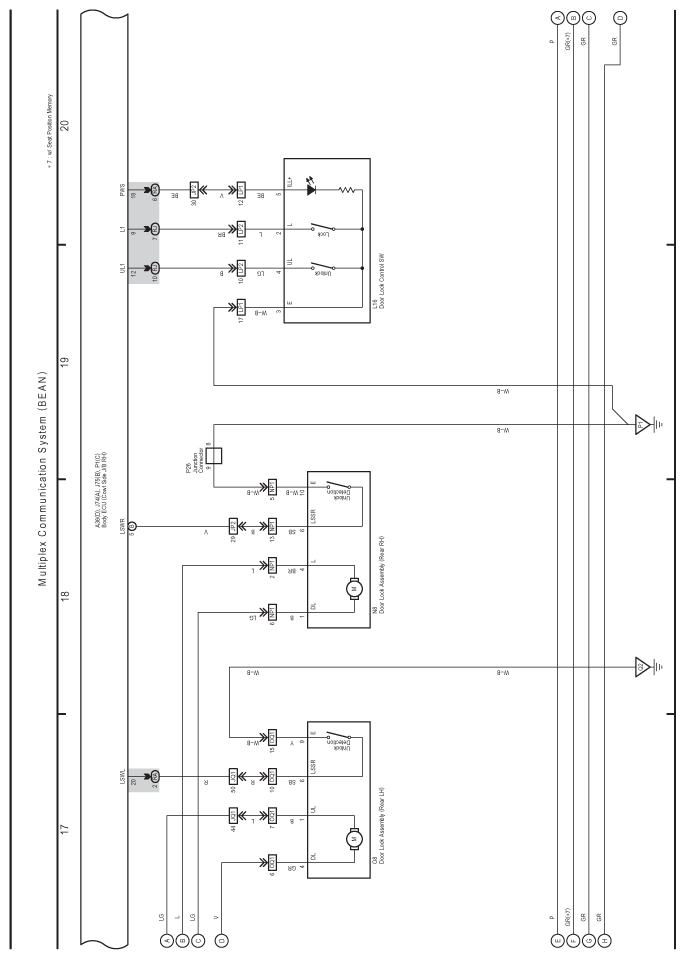

Fig 5: Multiplex Communication System (BEAN) Electrical Wiring Diagram (5 Of 26)

G07559351

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

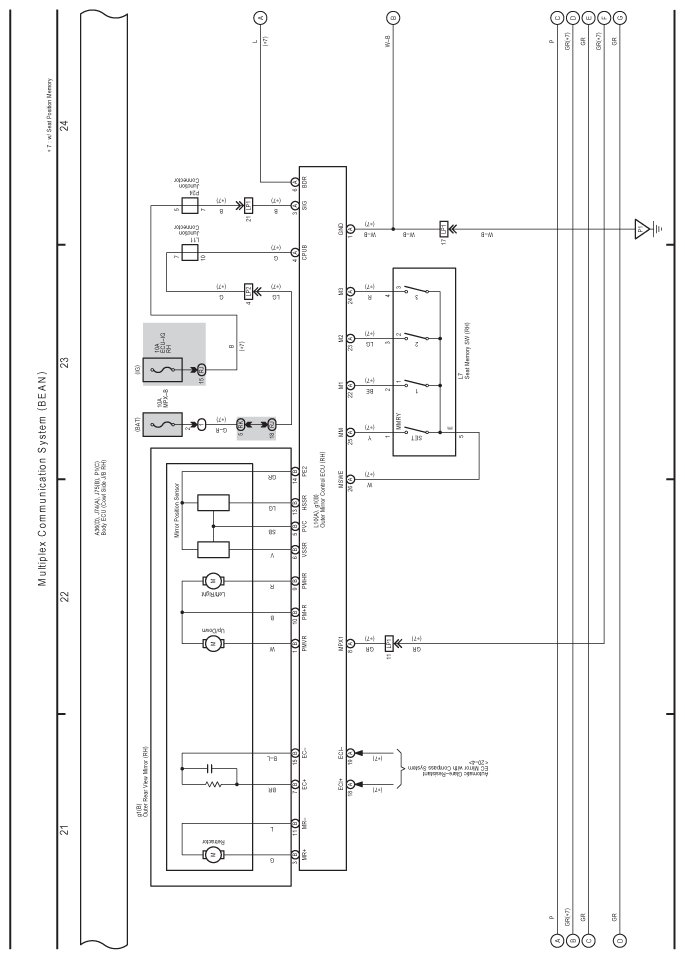

Fig 6: Multiplex Communication System (BEAN) Electrical Wiring Diagram (6 Of 26)

G07559352

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

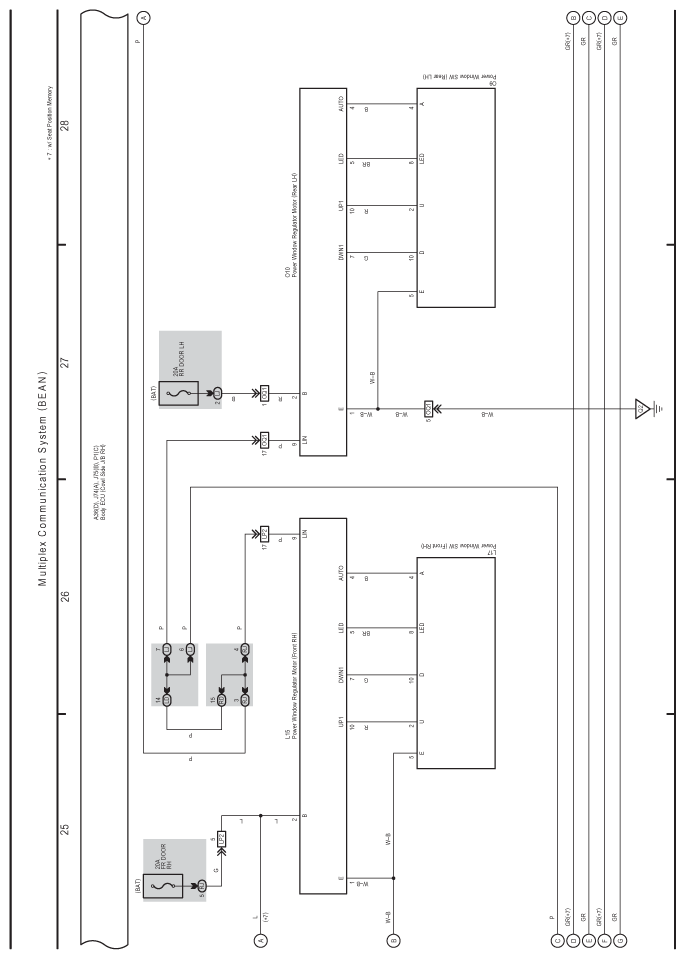

Fig 7: Multiplex Communication System (BEAN) Electrical Wiring Diagram (7 Of 26)

G07559353

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

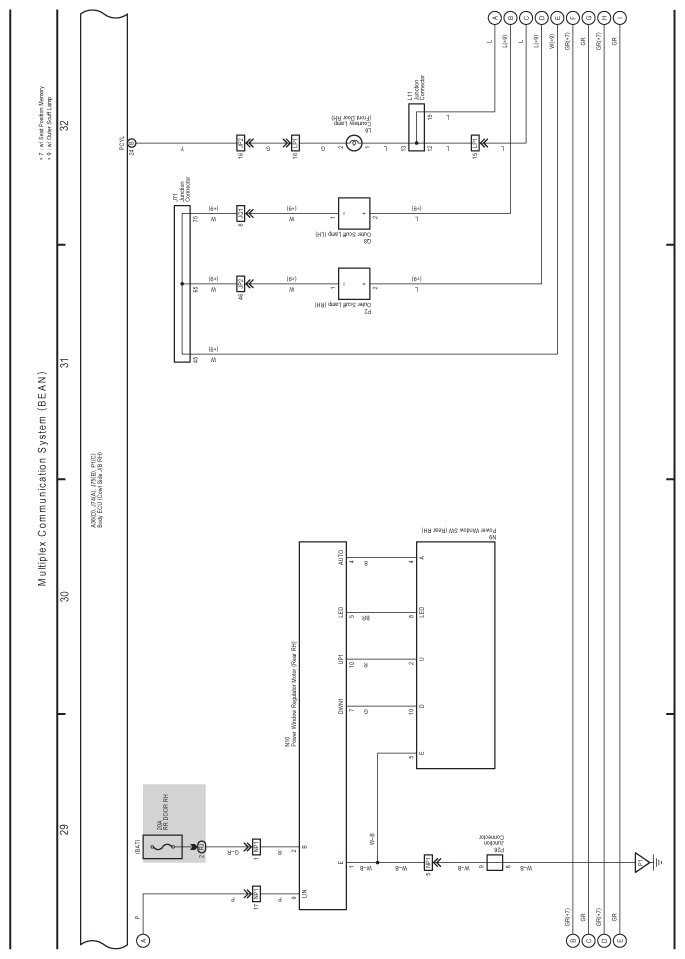

Fig 8: Multiplex Communication System (BEAN) Electrical Wiring Diagram (8 Of 26)

G07559354

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

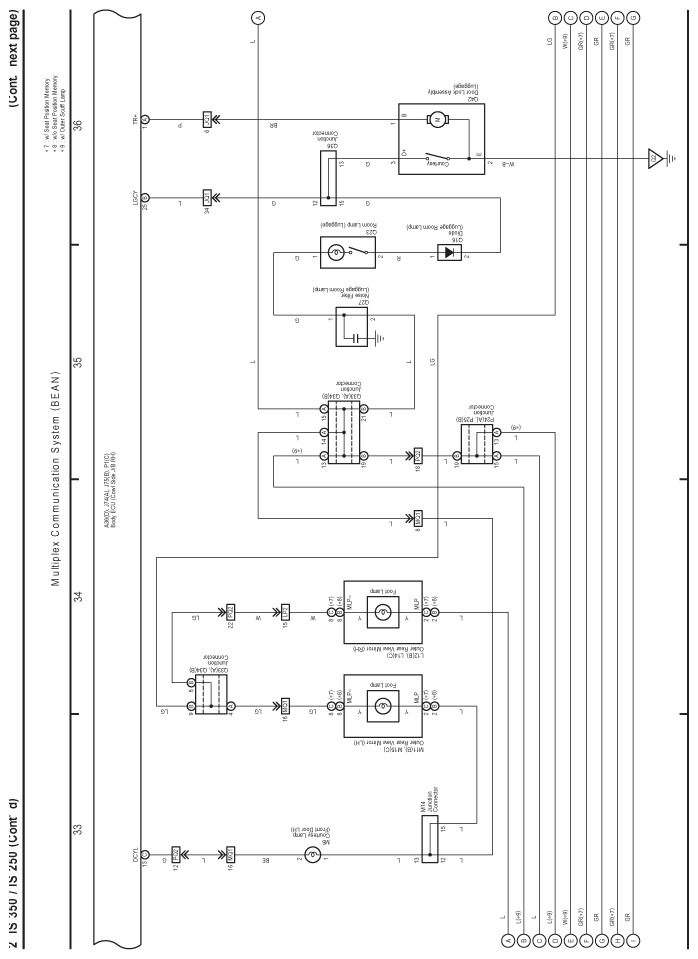

Fig 9: Multiplex Communication System (BEAN) Electrical Wiring Diagram (9 Of 26)

G07559355

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

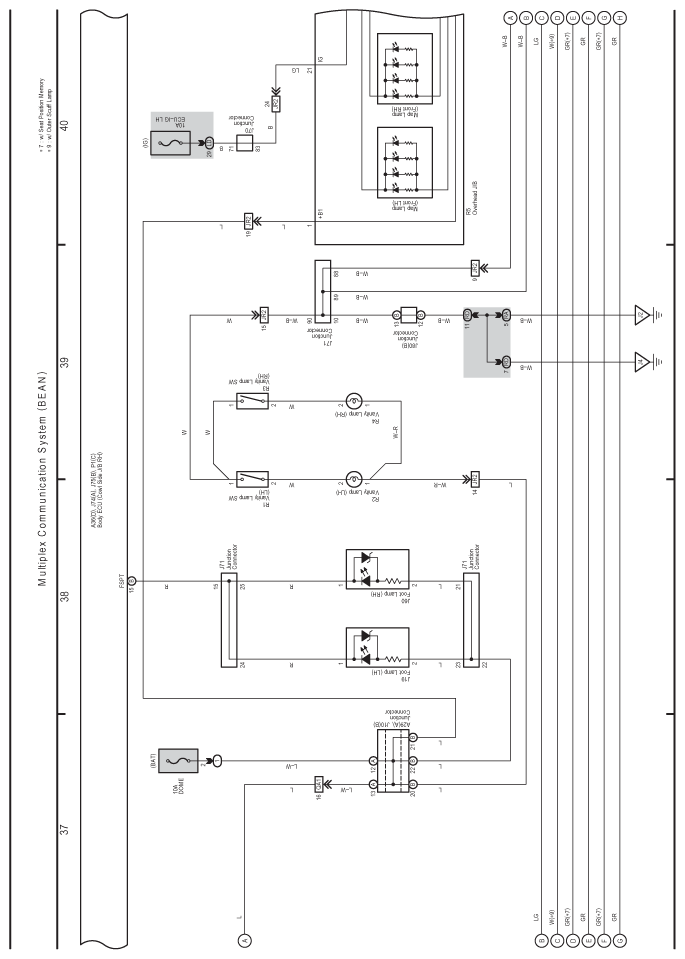

Fig 10: Multiplex Communication System (BEAN) Electrical Wiring Diagram (10 Of 26)

G07559356

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

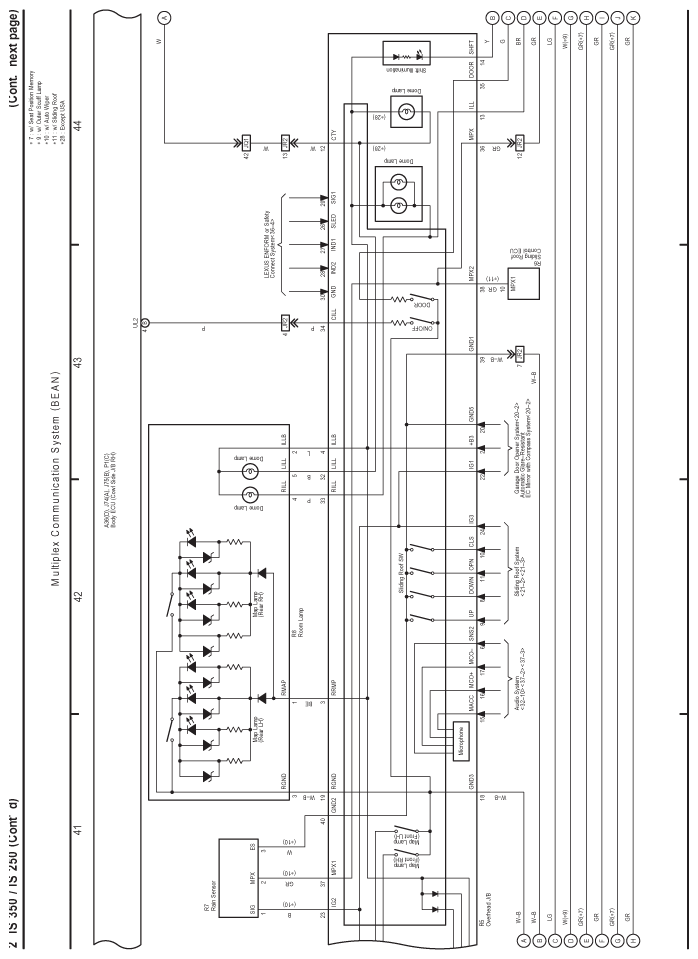

Fig 11: Multiplex Communication System (BEAN) Electrical Wiring Diagram (11 Of 26)

G07559357

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

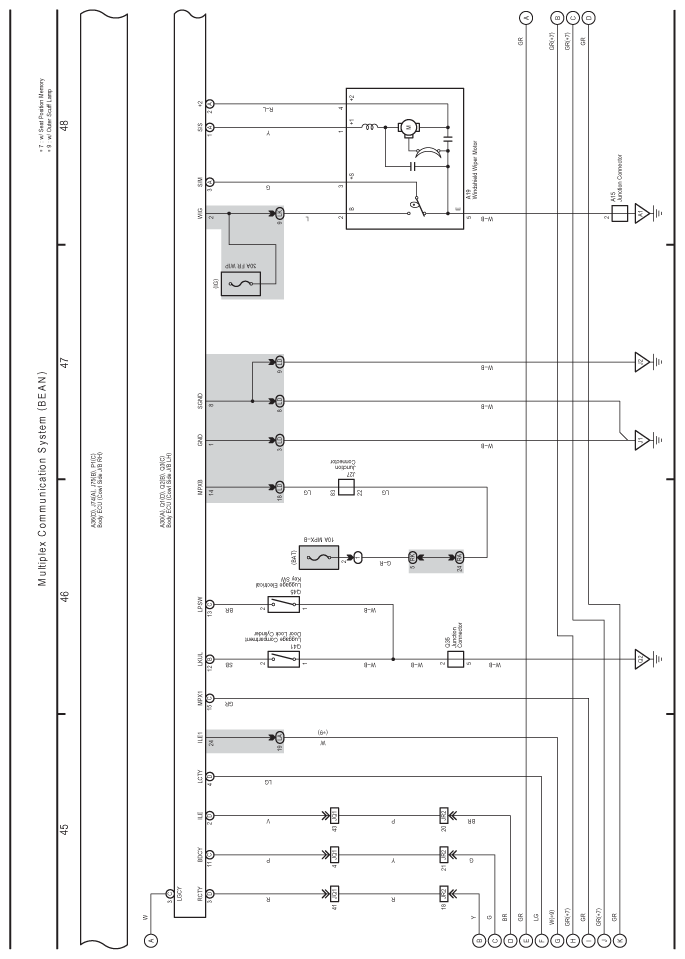

Fig 12: Multiplex Communication System (BEAN) Electrical Wiring Diagram (12 Of 26)

G07559358

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

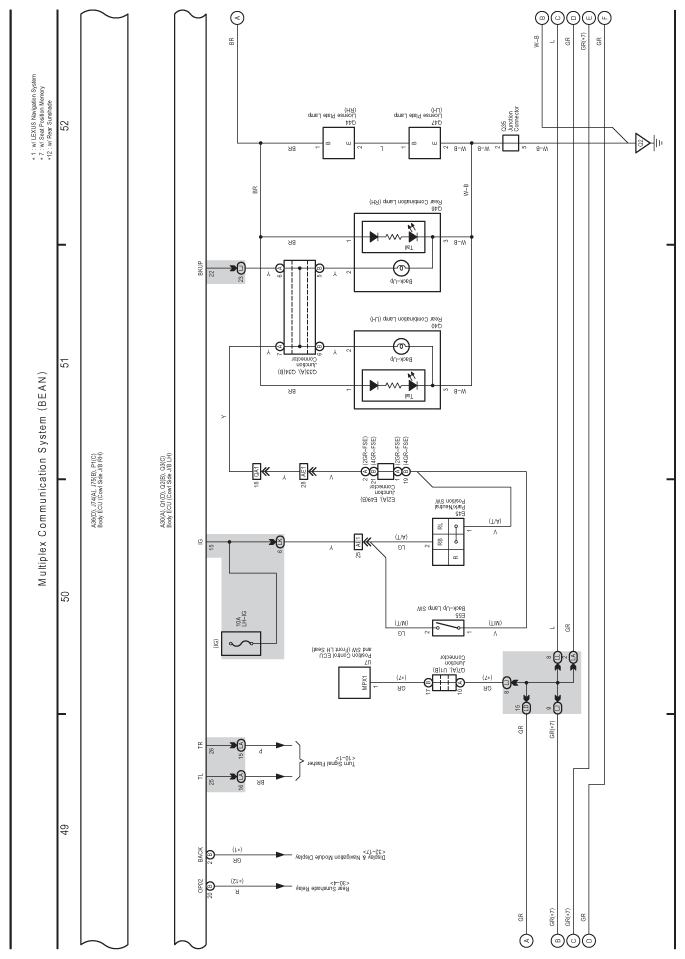

Fig 13: Multiplex Communication System (BEAN) Electrical Wiring Diagram (13 Of 26)

G07559359

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

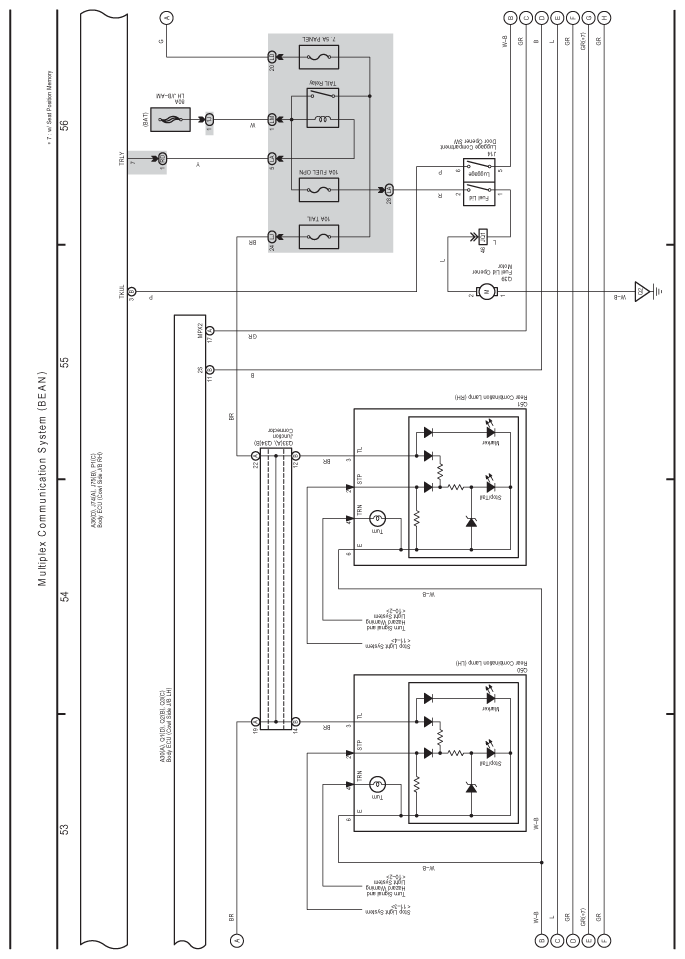

Fig 14: Multiplex Communication System (BEAN) Electrical Wiring Diagram (14 Of 26)

G07559360

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

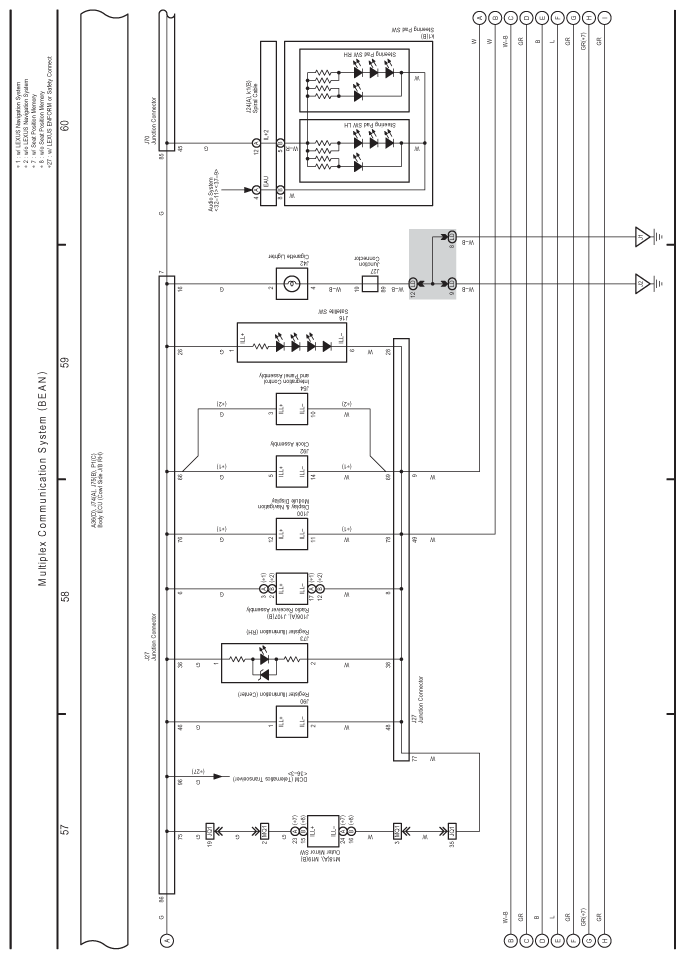

Fig 15: Multiplex Communication System (BEAN) Electrical Wiring Diagram (15 Of 26)

G07559361

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

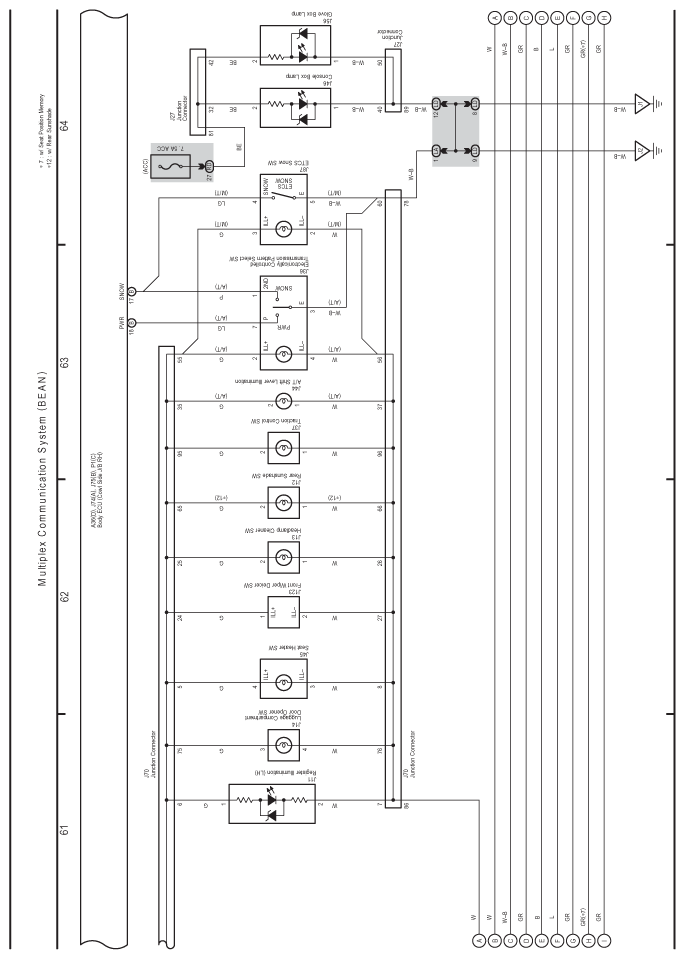

Fig 16: Multiplex Communication System (BEAN) Electrical Wiring Diagram (16 Of 26)

G07559362

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

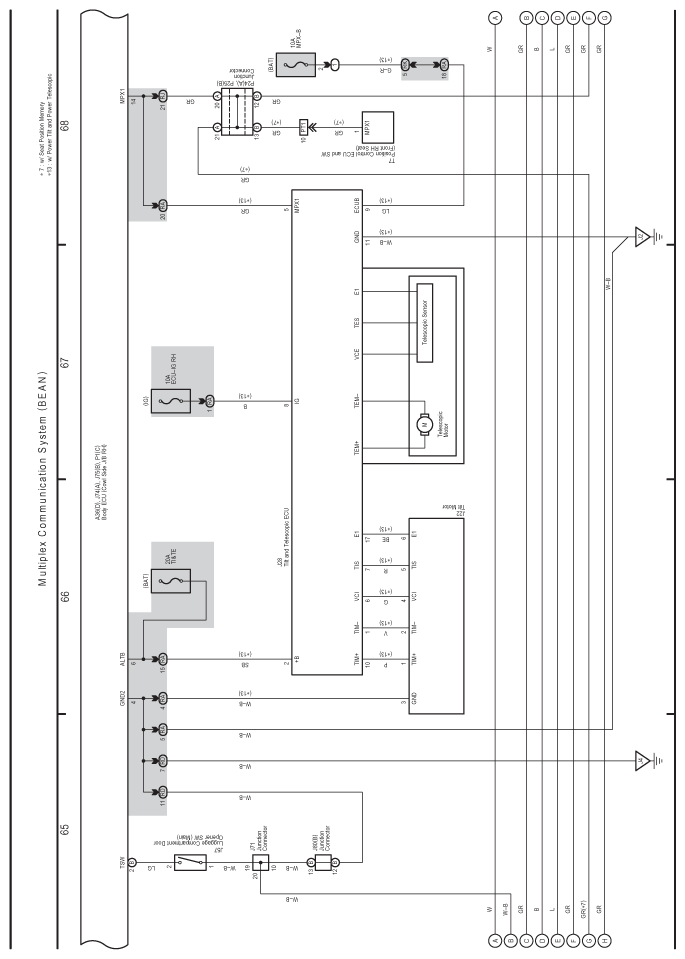

Fig 17: Multiplex Communication System (BEAN) Electrical Wiring Diagram (17 Of 26)

G07559363

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

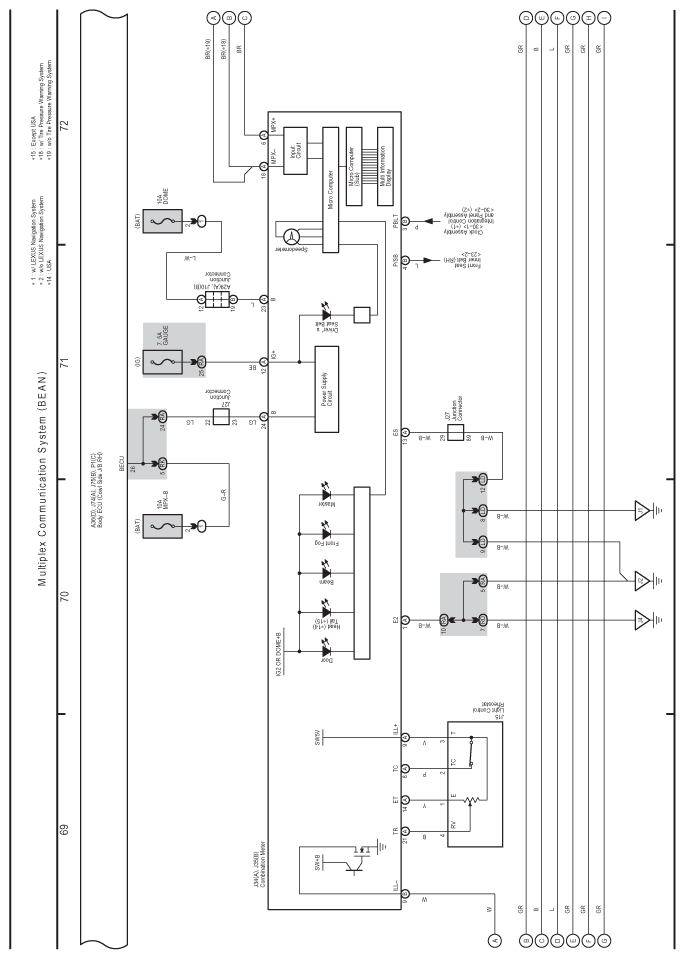

Fig 18: Multiplex Communication System (BEAN) Electrical Wiring Diagram (18 Of 26)

G07559364

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

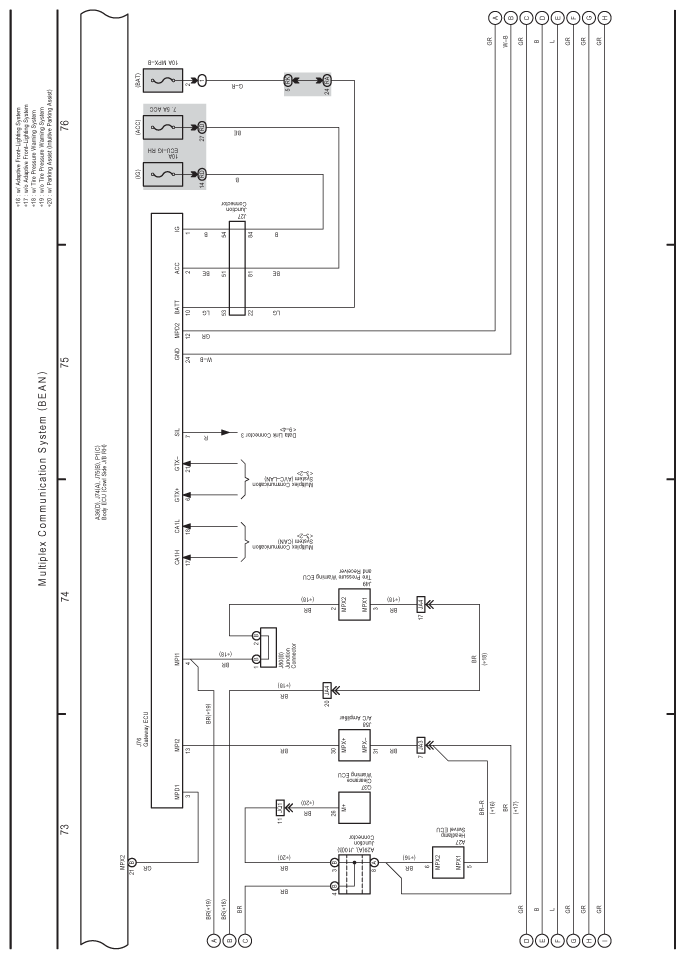

Fig 19: Multiplex Communication System (BEAN) Electrical Wiring Diagram (19 Of 26)

G07559365

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

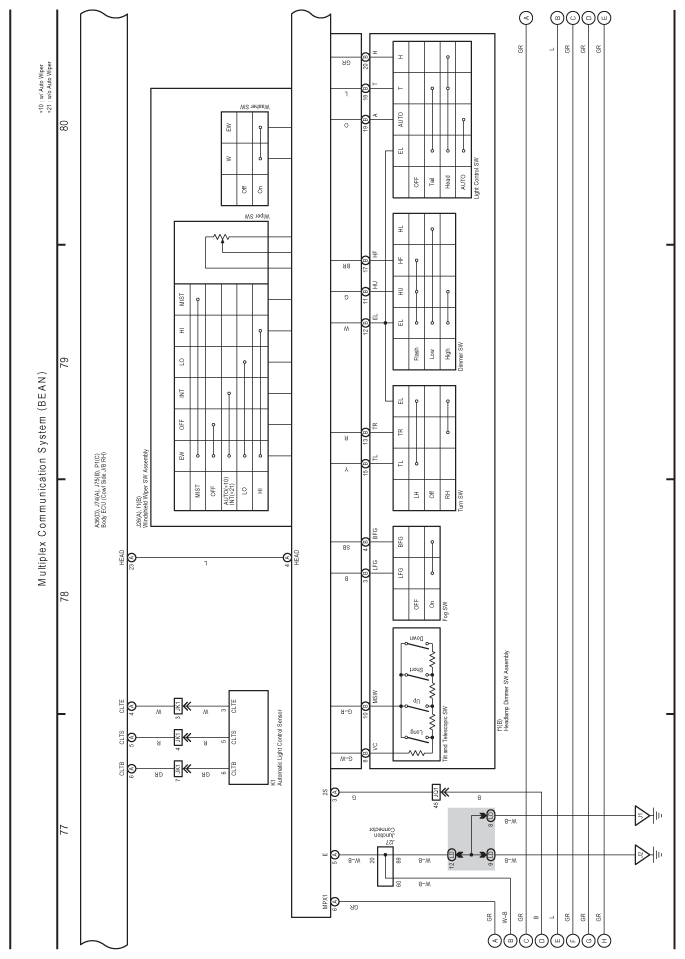

Fig 20: Multiplex Communication System (BEAN) Electrical Wiring Diagram (20 Of 26)

G07559366

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

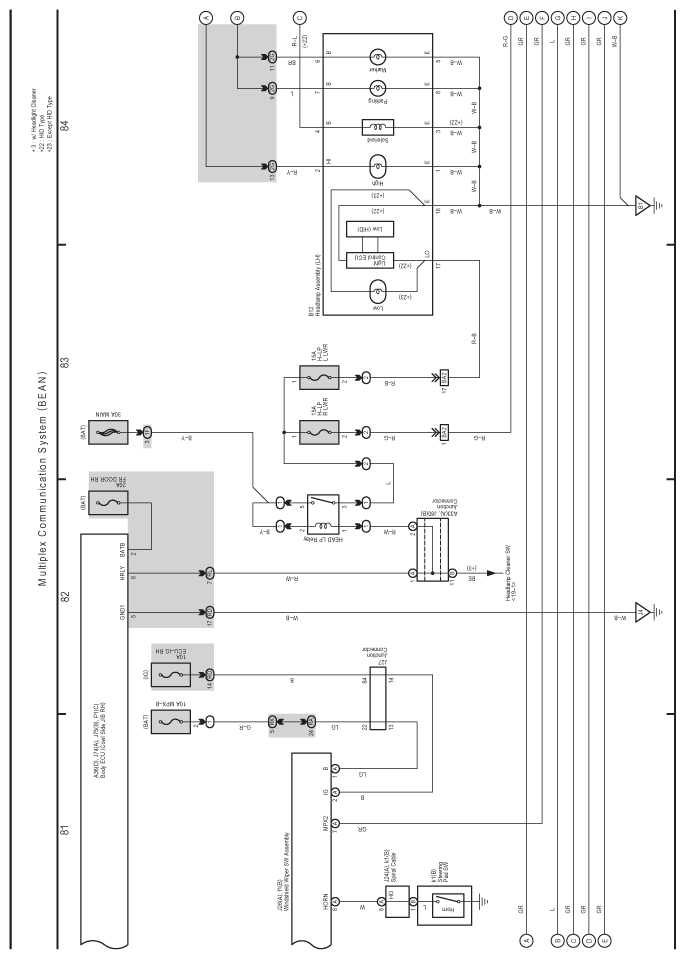

Fig 21: Multiplex Communication System (BEAN) Electrical Wiring Diagram (21 Of 26)

G07559367

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

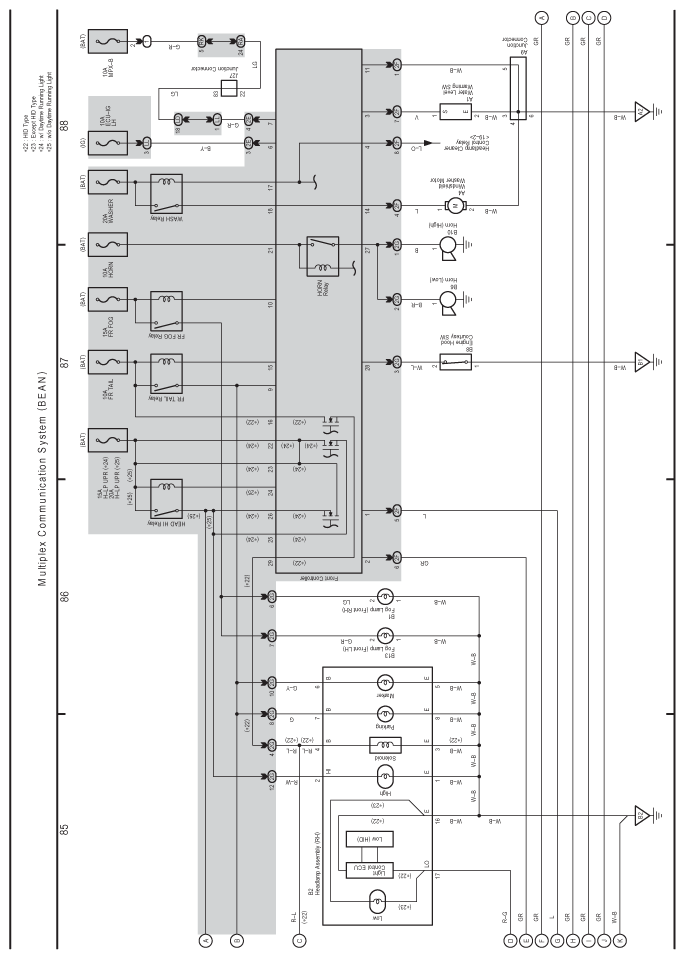

Fig 22: Multiplex Communication System (BEAN) Electrical Wiring Diagram (22 Of 26)

G07559368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

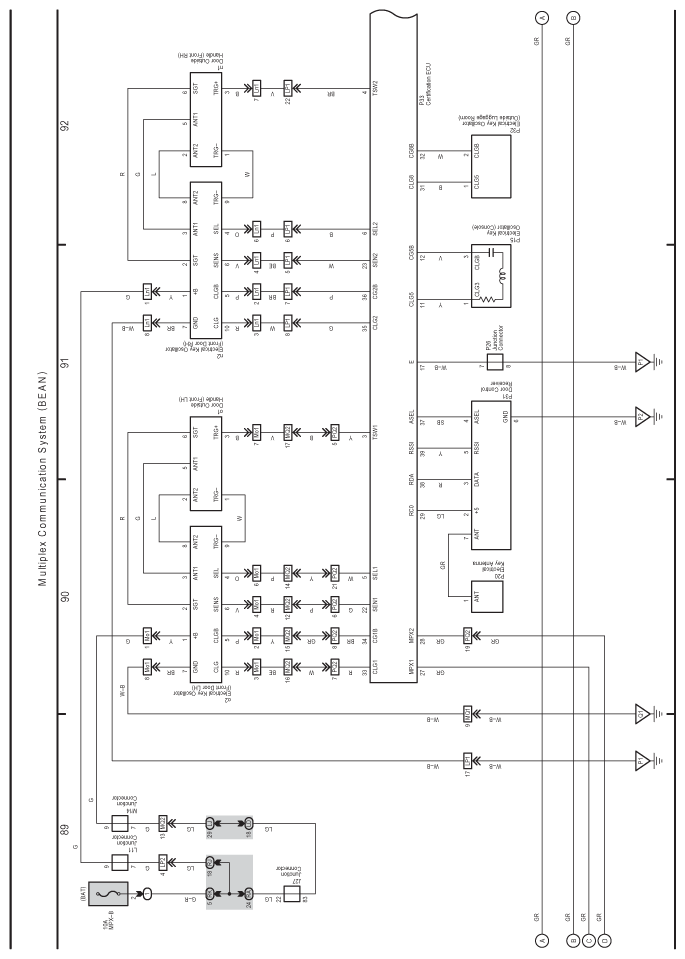

Fig 23: Multiplex Communication System (BEAN) Electrical Wiring Diagram (23 Of 26)

G07559369

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

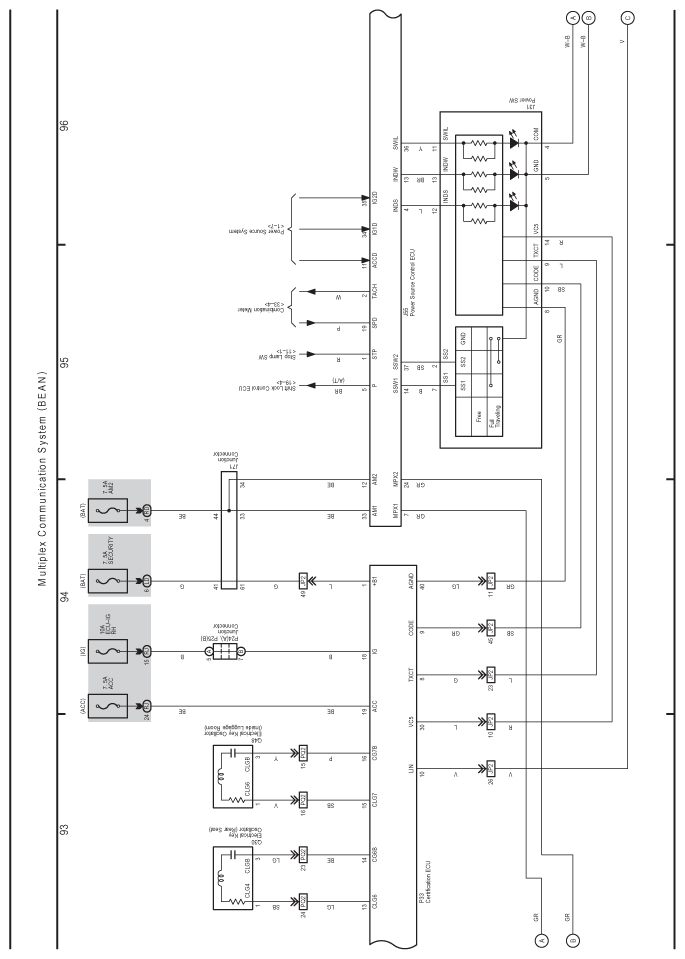

Fig 24: Multiplex Communication System (BEAN) Electrical Wiring Diagram (24 Of 26)

G07559370

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

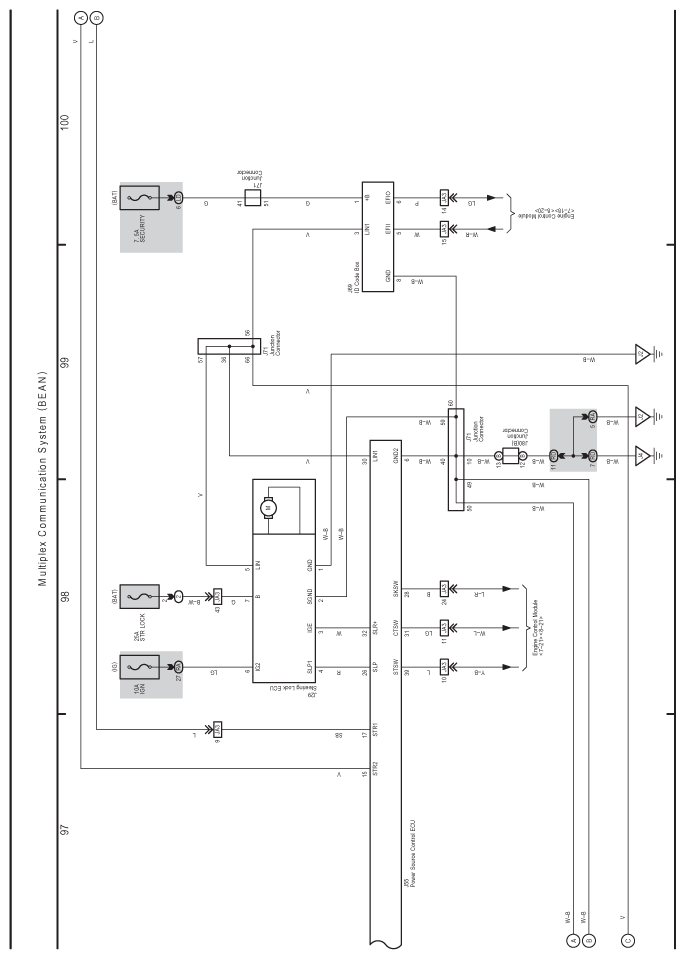

Fig 25: Multiplex Communication System (BEAN) Electrical Wiring Diagram (25 Of 26)

G07559371

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

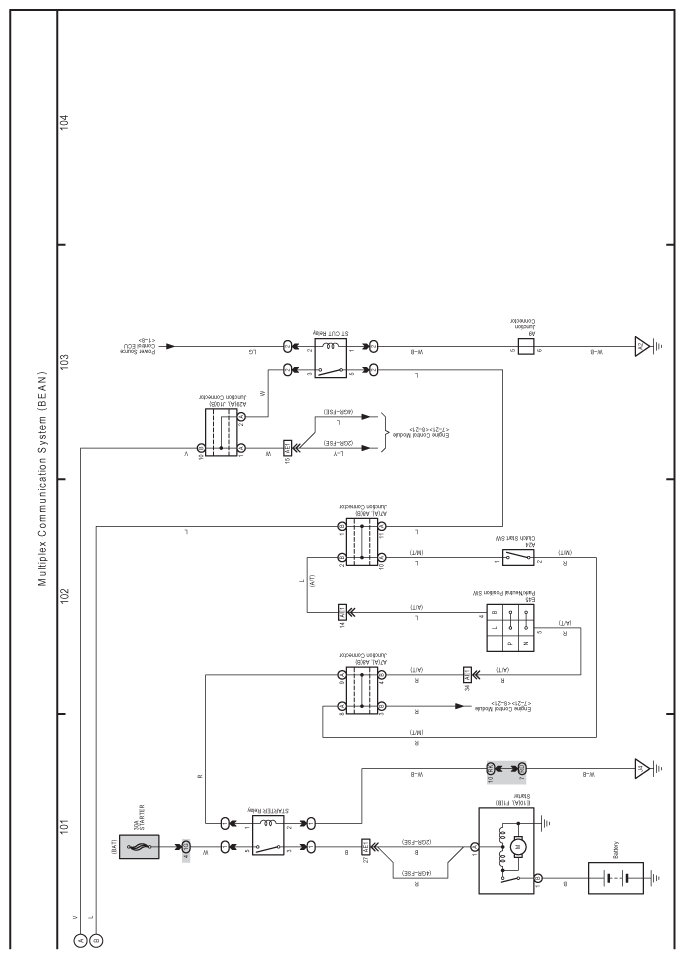

Fig 26: Multiplex Communication System (BEAN) Electrical Wiring Diagram (26 Of 26)

G07559372

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
