Front Window Deicer, Mirror Heater, Rear Window Defogger

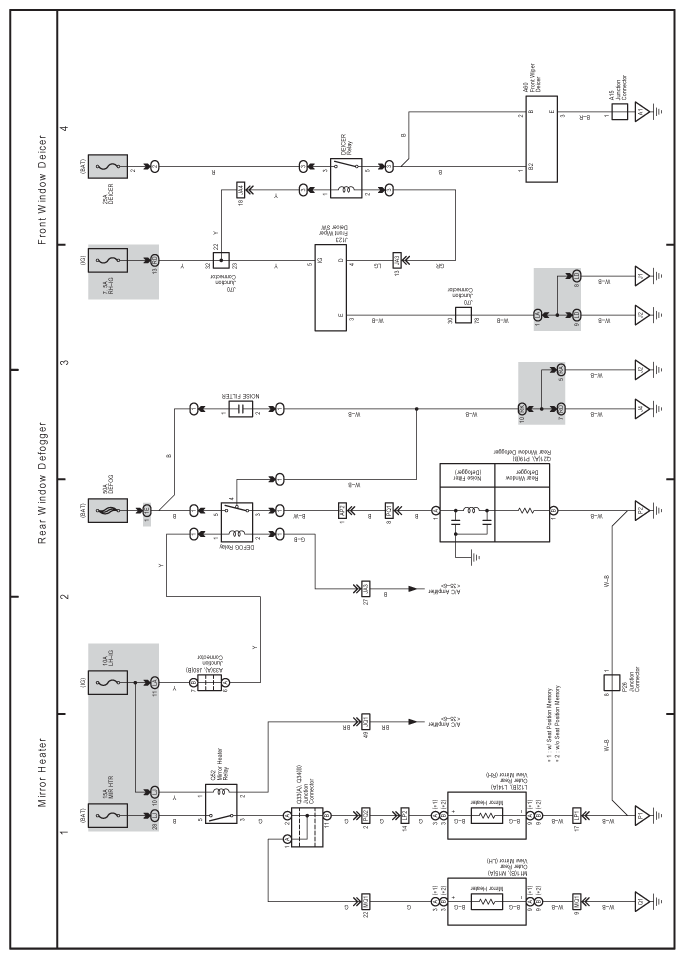

Fig 1: Rear Window Defogger Electrical Wiring Diagram

G07559412

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
