Cigarette Lighter, Electric Tension Reducer, Power Outlet

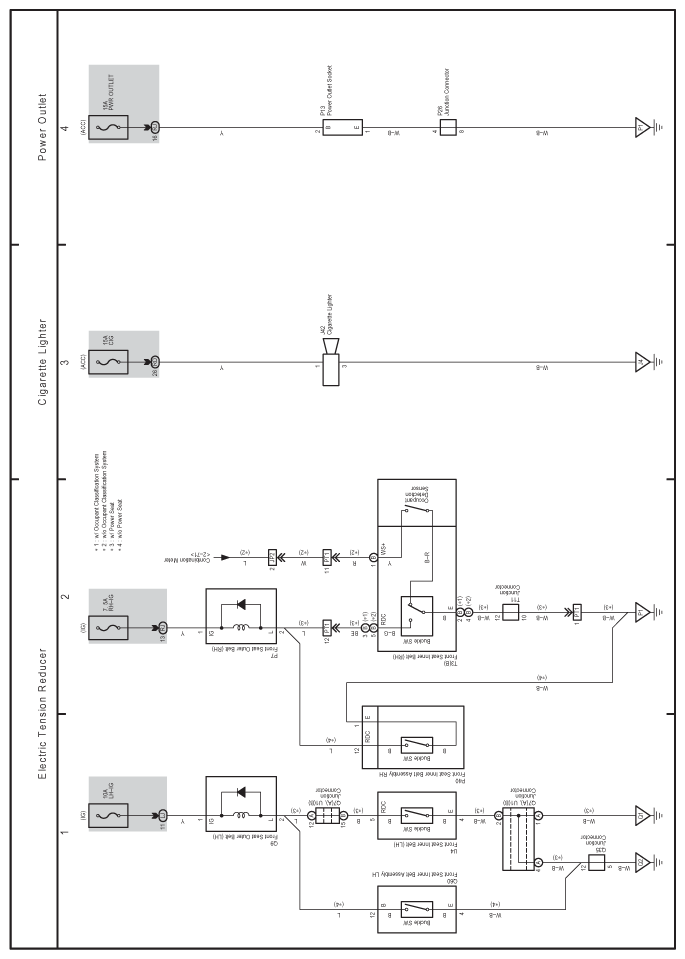

Fig 1: Cigarette Lighter Electrical Wiring Diagram

G07559413

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
