Automatic Glare-Resistant EC Mirror and Compass, Garage Door Opener

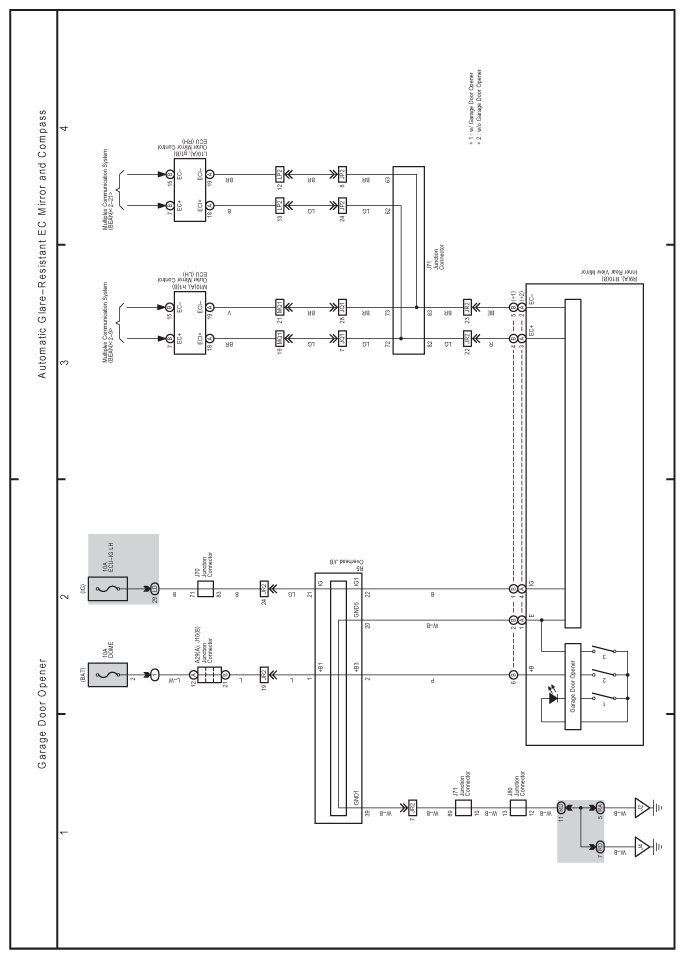

Fig 1: Garage Door Opener And Automatic Glare-Resistant EC Mirror And Compass Electrical Wiring Diagram
G07559410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
