Air Conditioning

Fig 1: Air Conditioning Electrical Wiring Diagram (1 Of 3)
G07559432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

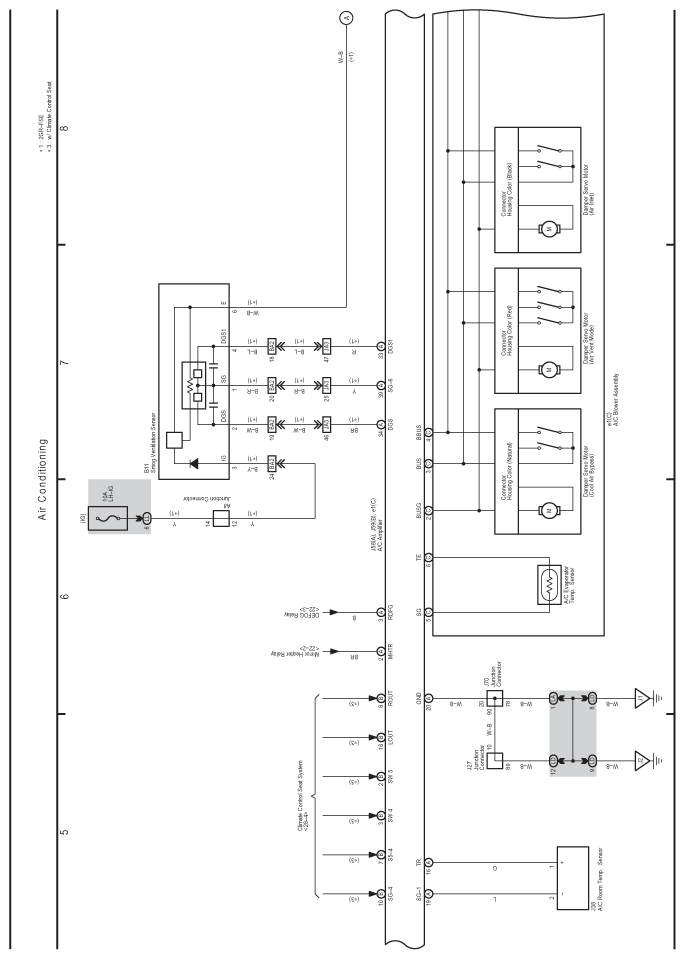

Fig 2: Air Conditioning Electrical Wiring Diagram (2 Of 3)
G07559433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Air Conditioning Electrical Wiring Diagram (3 Of 3)
G07559434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
