Overall Electrical Wiring Diagram: 4WD

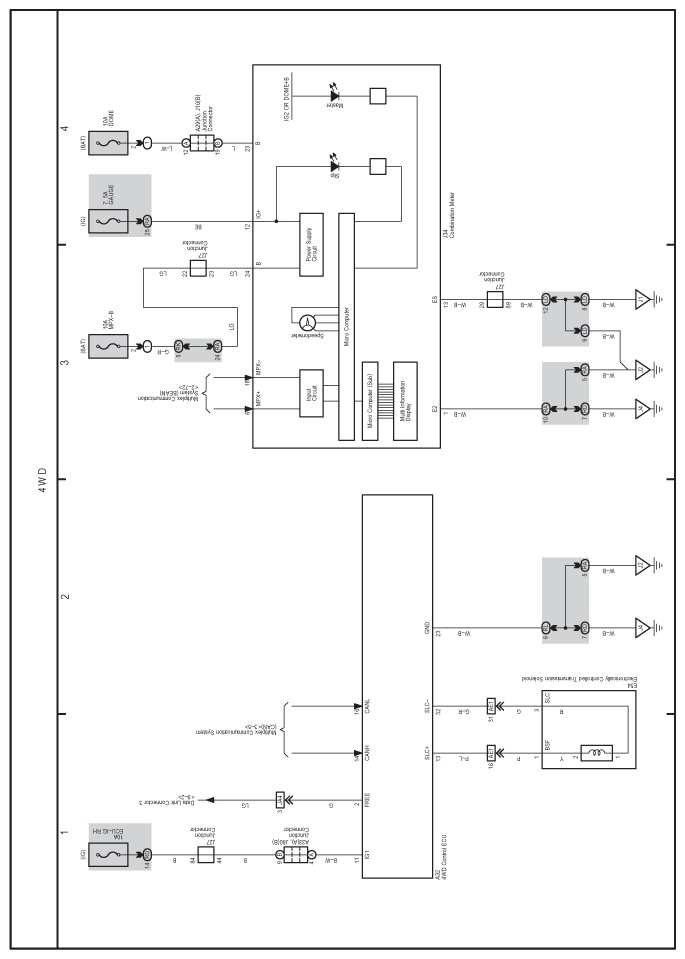

Fig 1: 4WD Electrical Wiring Diagram

G07559406

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
