Position of Parts in Engine Compartment

[2GR-FSE]

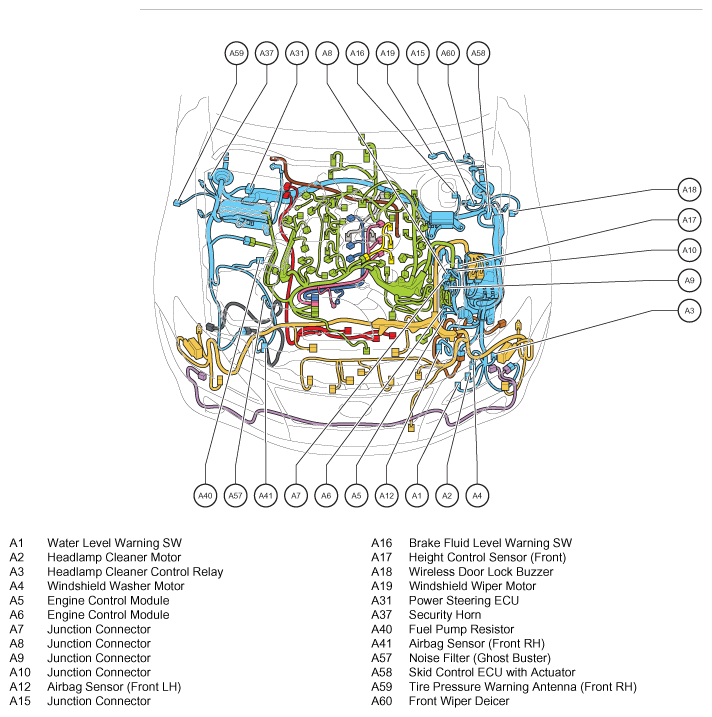

Fig 1: Engine Compartment Parts (2GR-FSE; 1 Of 4)

G07558902

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

[2GR-FSE]

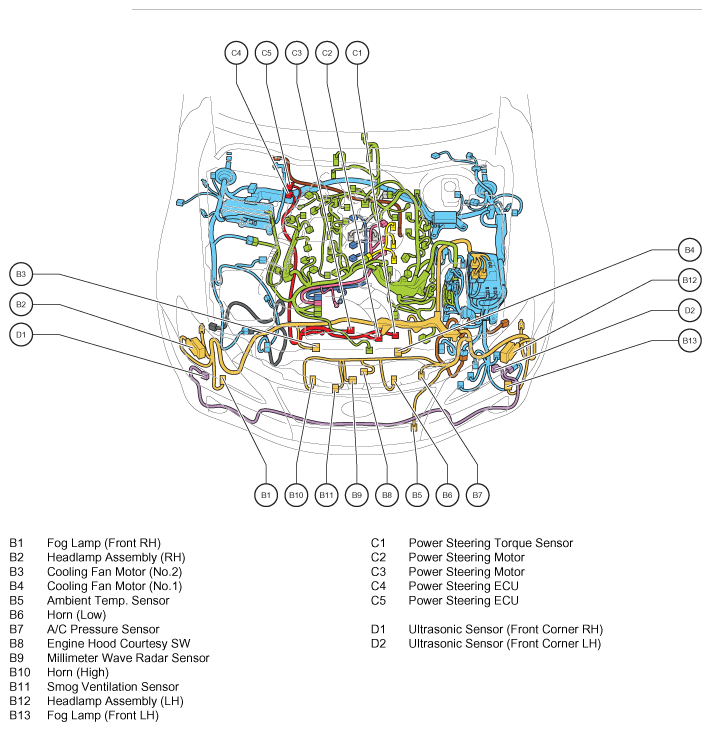

Fig 2: Engine Compartment Parts (2GR-FSE; 2 Of 4)

G07558903

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

[2GR-FSE]

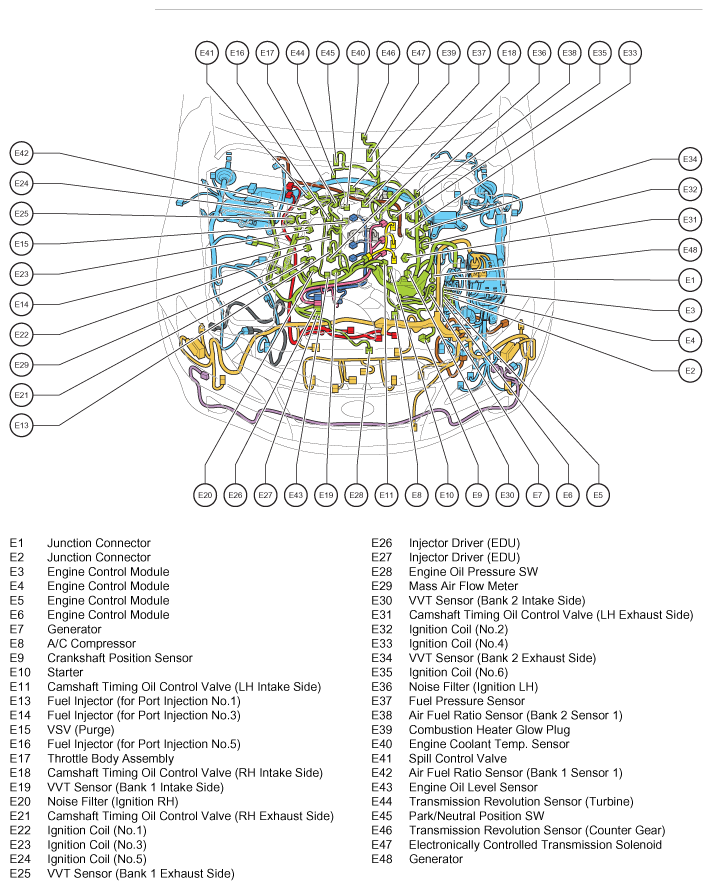

Fig 3: Engine Compartment Parts (2GR-FSE; 3 Of 4)

G07558904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

[2GR-FSE]

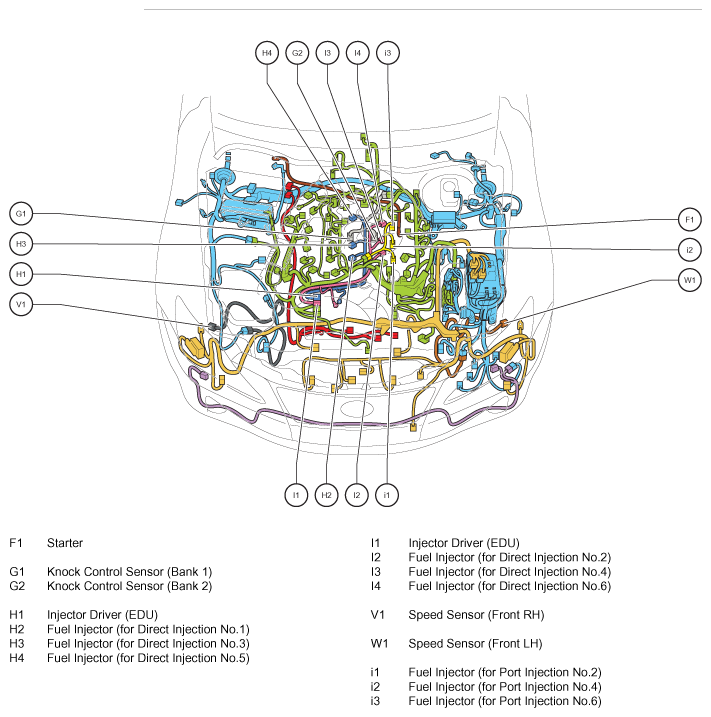

Fig 4: Engine Compartment Parts (2GR-FSE; 4 Of 4)

G07558905

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

[4GR-FSE]

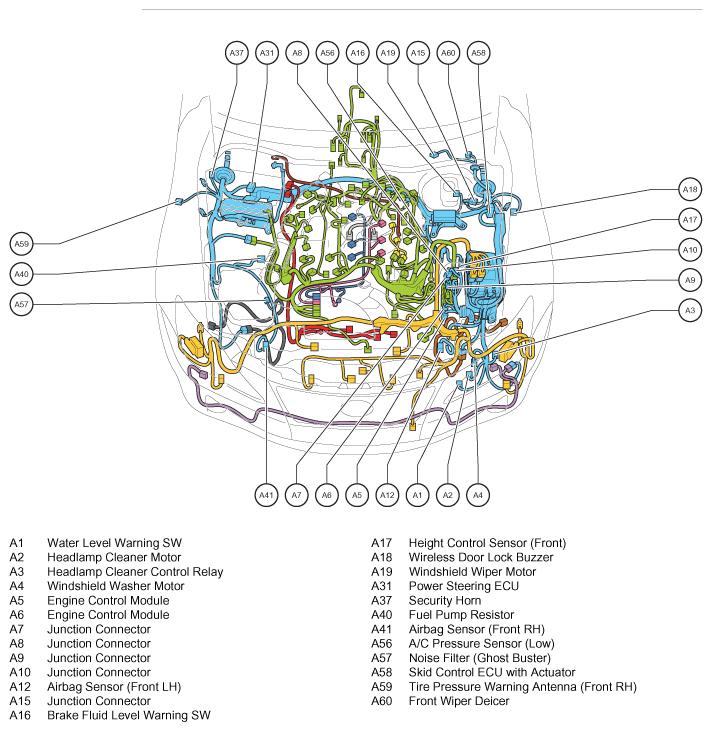

Fig 5: Engine Compartment Parts (4GR-FSE; 1 Of 4)

G07558906

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

[4GR-FSE]

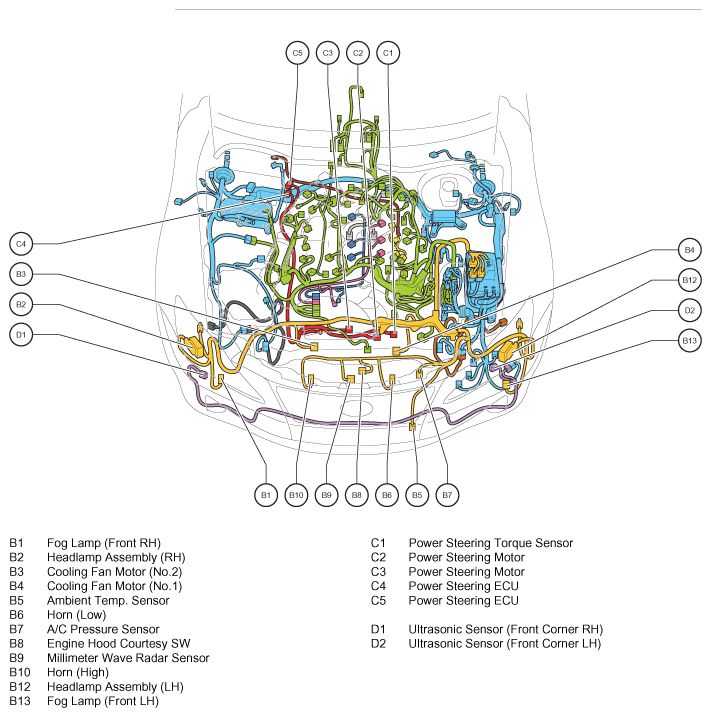

Fig 6: Engine Compartment Parts (4GR-FSE; 2 Of 4)

G07558907

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

[4GR-FSE]

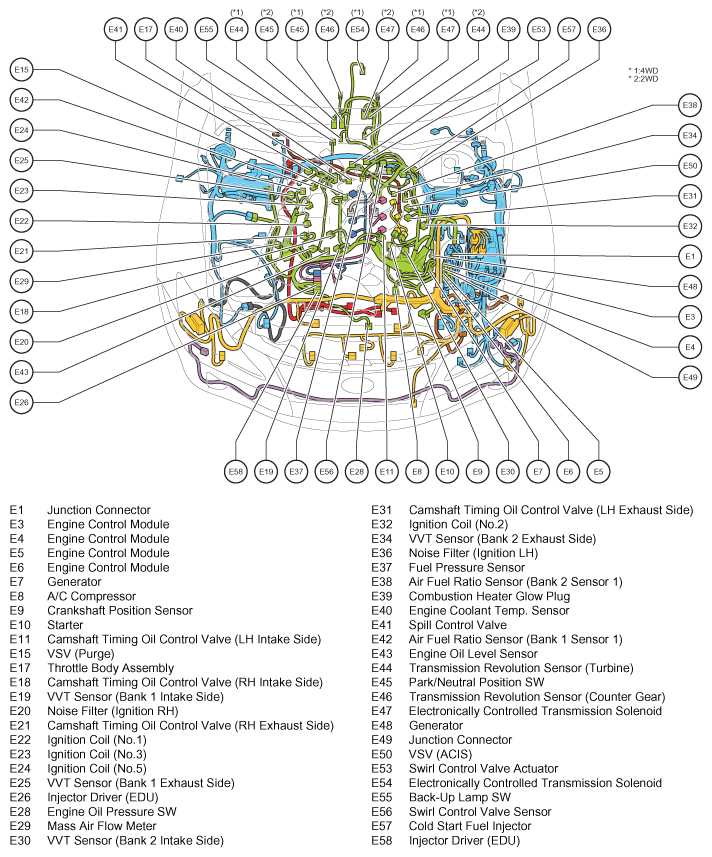

Fig 7: Engine Compartment Parts (4GR-FSE; 3 Of 4)

G07558908

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

[4GR-FSE]

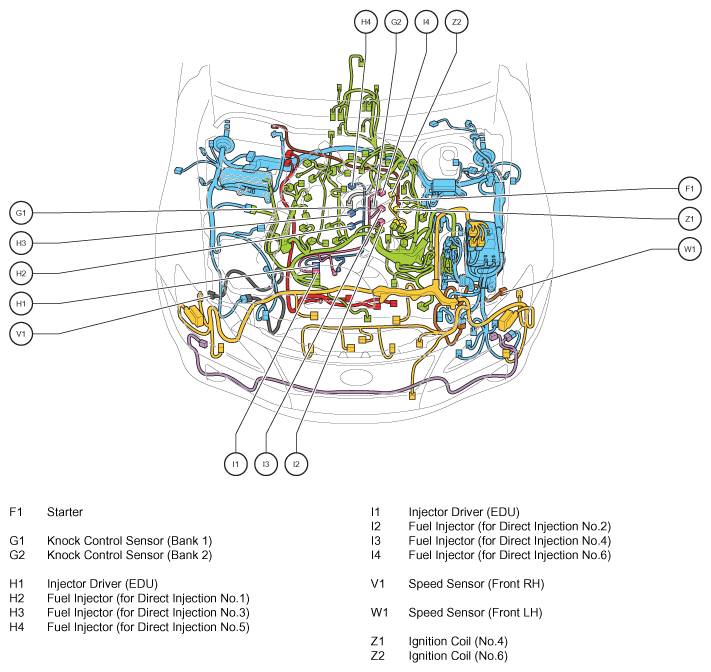

Fig 8: Engine Compartment Parts (4GR-FSE; 4 Of 4)

G07558909

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
