Position of Parts in Body

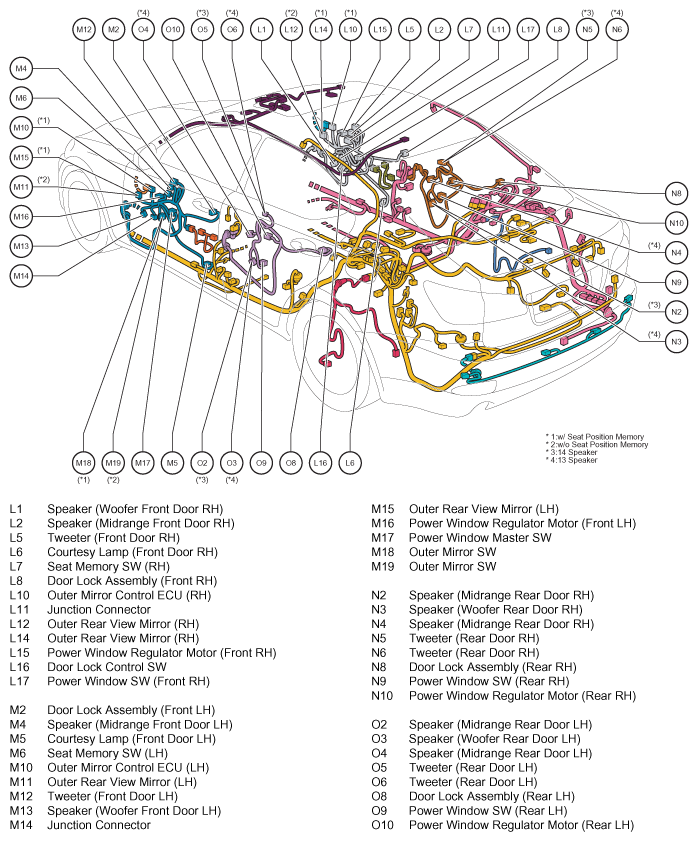

Fig 1: Body Parts (1 Of 4)
G07558914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

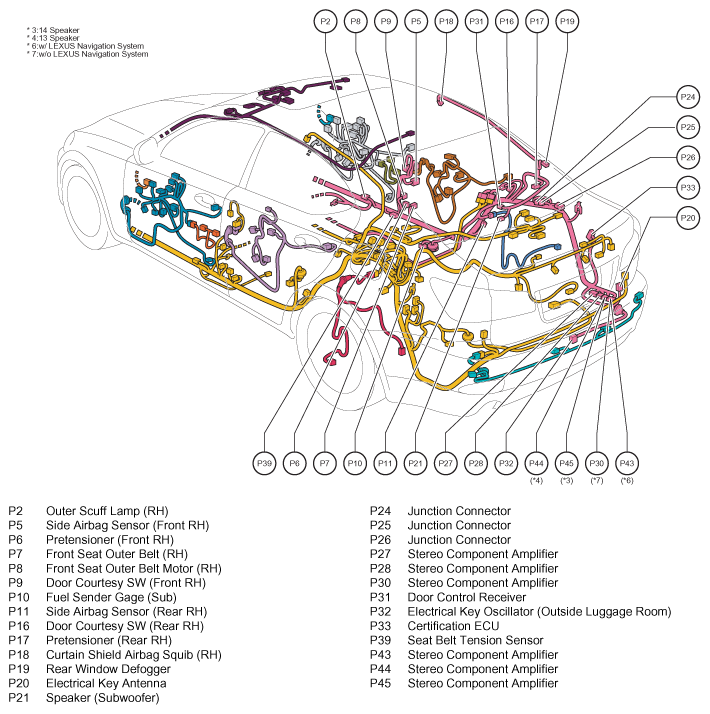

Fig 2: Body Parts (2 Of 4)
G07558915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

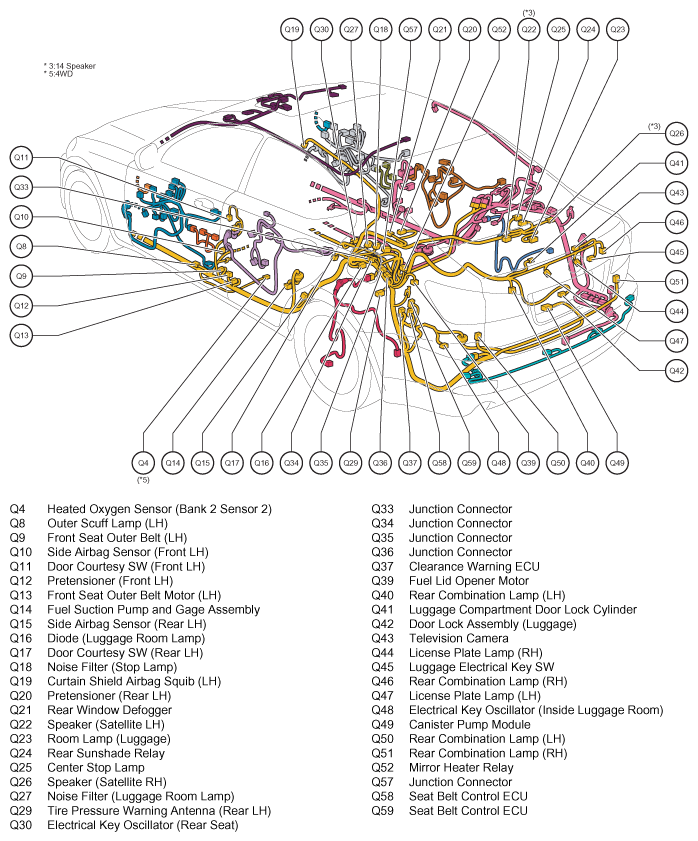

Fig 3: Body Parts (3 Of 4)
G07558916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

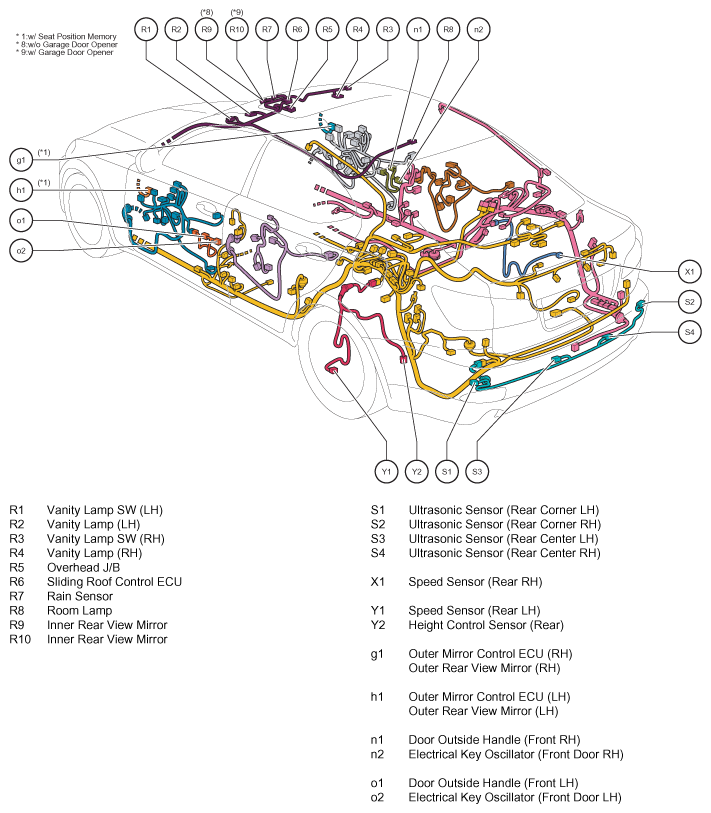

Fig 4: Body Parts (4 Of 4)
G07558917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
