Location of Connector Joining Wire Harness and Wire Harness

[2GR-FSE]

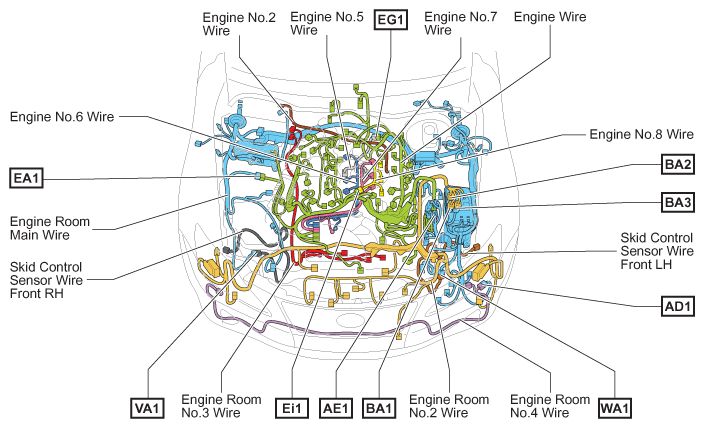

Fig 1: Locating Wire Harnesses Points (2GR-FSE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

[4GR-FSE]

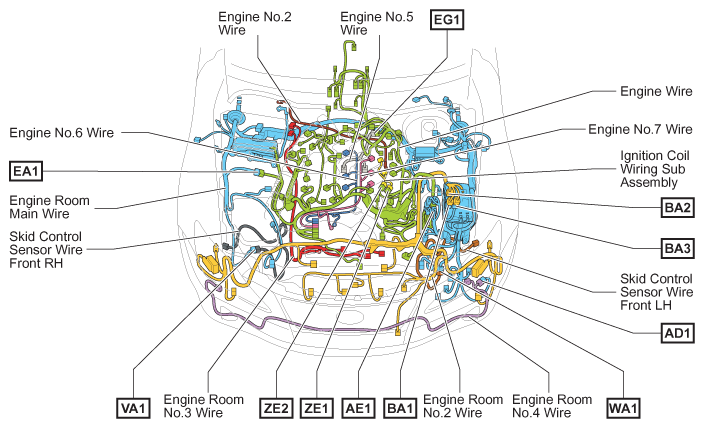

Fig 1: Locating Wire Harnesses Points (4GR-FSE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

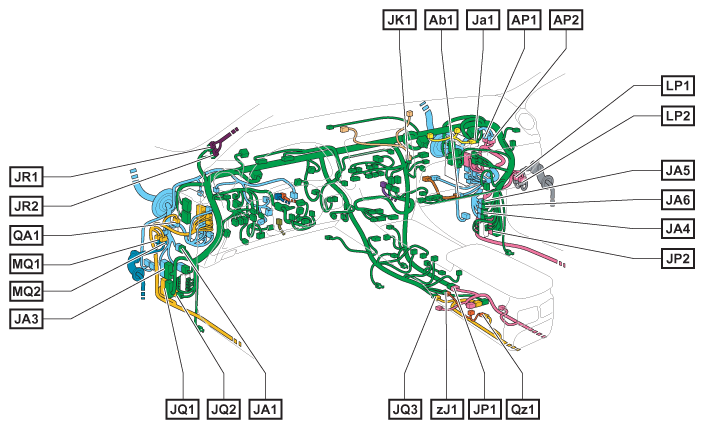

Fig 1: Locating Wire Harnesses Points

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

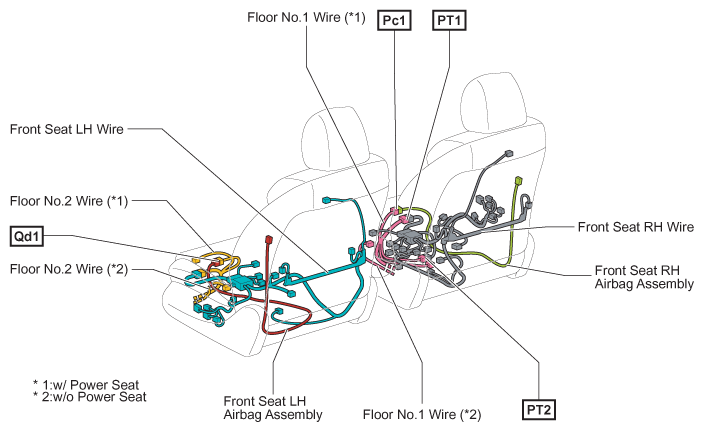

Fig 1: Locating Wire Harnesses Points

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

[Antenna]

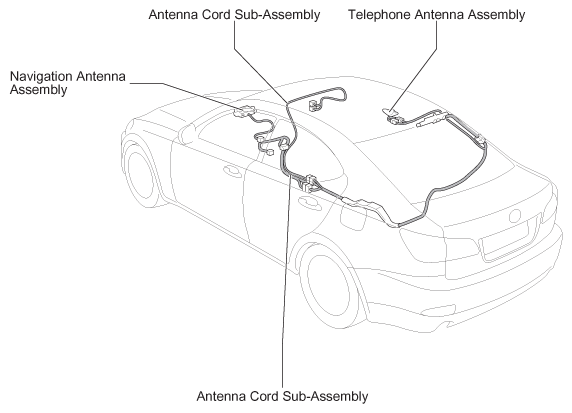

Fig 2: Locating Wire Harnesses Points (Antenna)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
