OEM Electrical Wiring Harness Routing
>>
Electrical Wiring Routing
>>
Location of Connector Joining Wire Harness and Wire Harness; Location of Ground Points
Location of Connector Joining Wire Harness and Wire Harness; Location of Ground Points

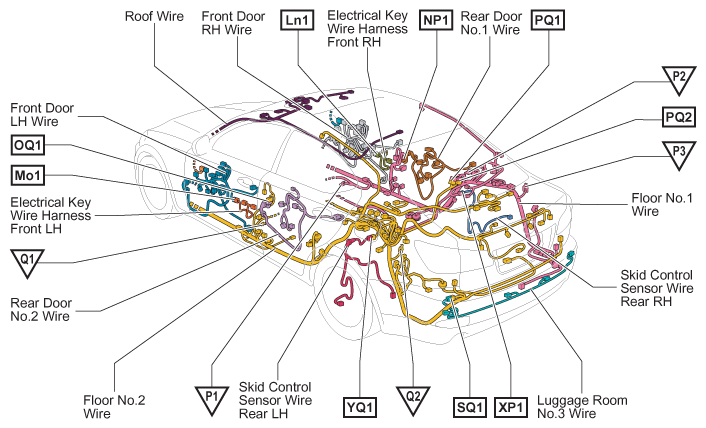

Fig 1: Locating Wire Harnesses And Ground Points
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
