Glossary Of Terms And Symbols

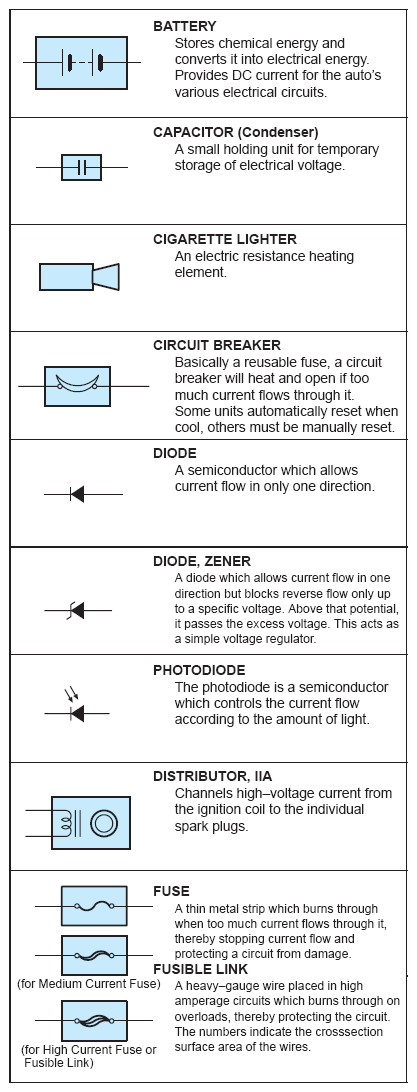

Fig 1: Identifying Symbols For Electric Circuit Diagrams (1 Of 4)
G07557627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

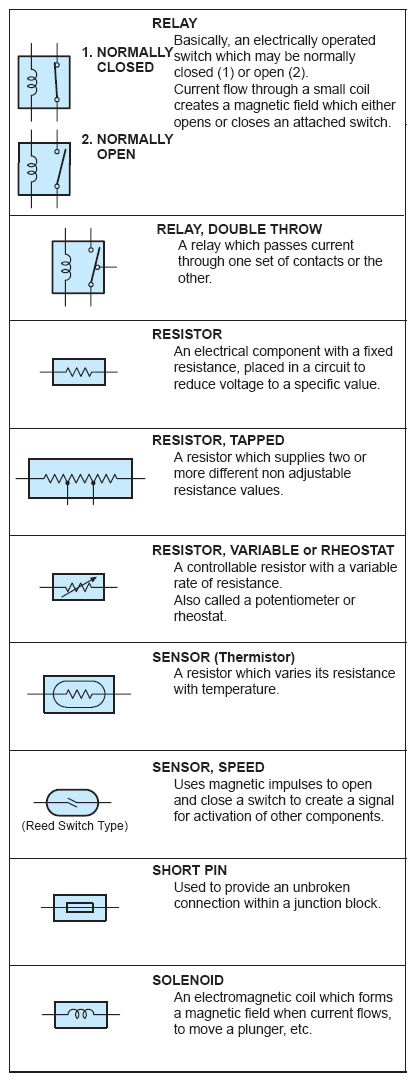

Fig 2: Identifying Symbols For Electric Circuit Diagrams (2 Of 4)
G07557628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

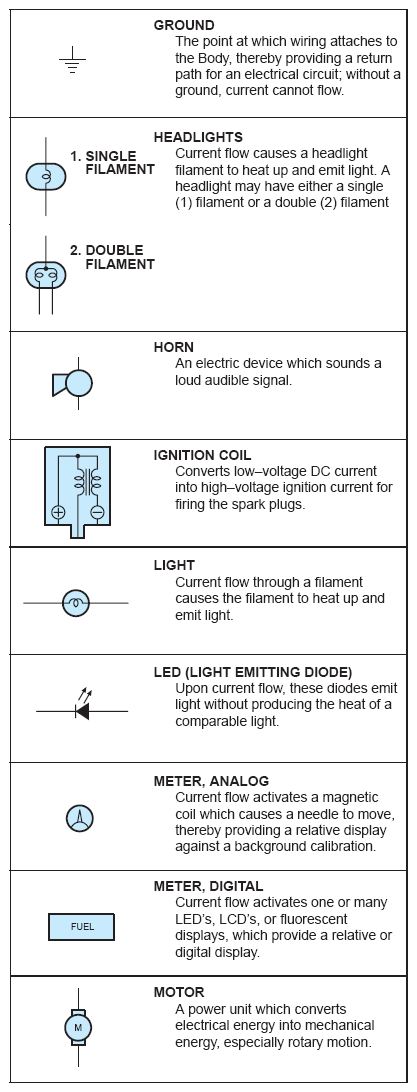

Fig 3: Identifying Symbols For Electric Circuit Diagrams (3 Of 4)
G07557629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

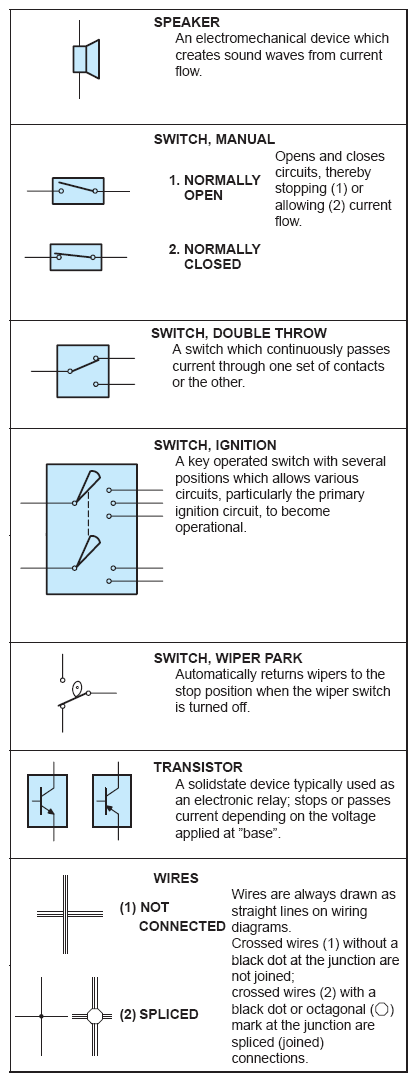

Fig 4: Identifying Symbols For Electric Circuit Diagrams (4 Of 4)
G07557630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
