PROPELLER SHAFT ASSEMBLY (for 4GR-FSE): Components: Illustration

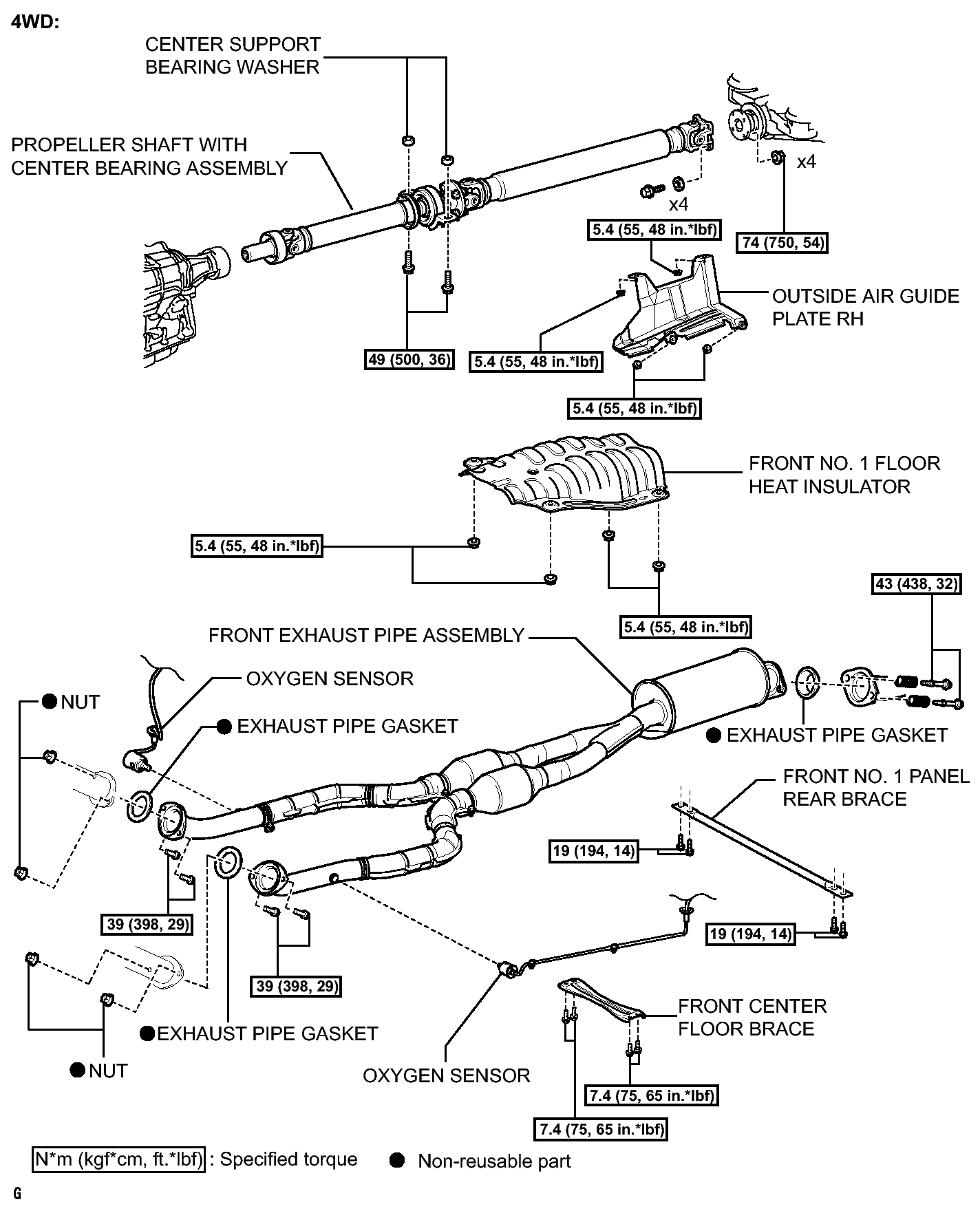

Fig 1: Identifying Rear Propeller Shaft Assembly (For 4GR-FSE) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

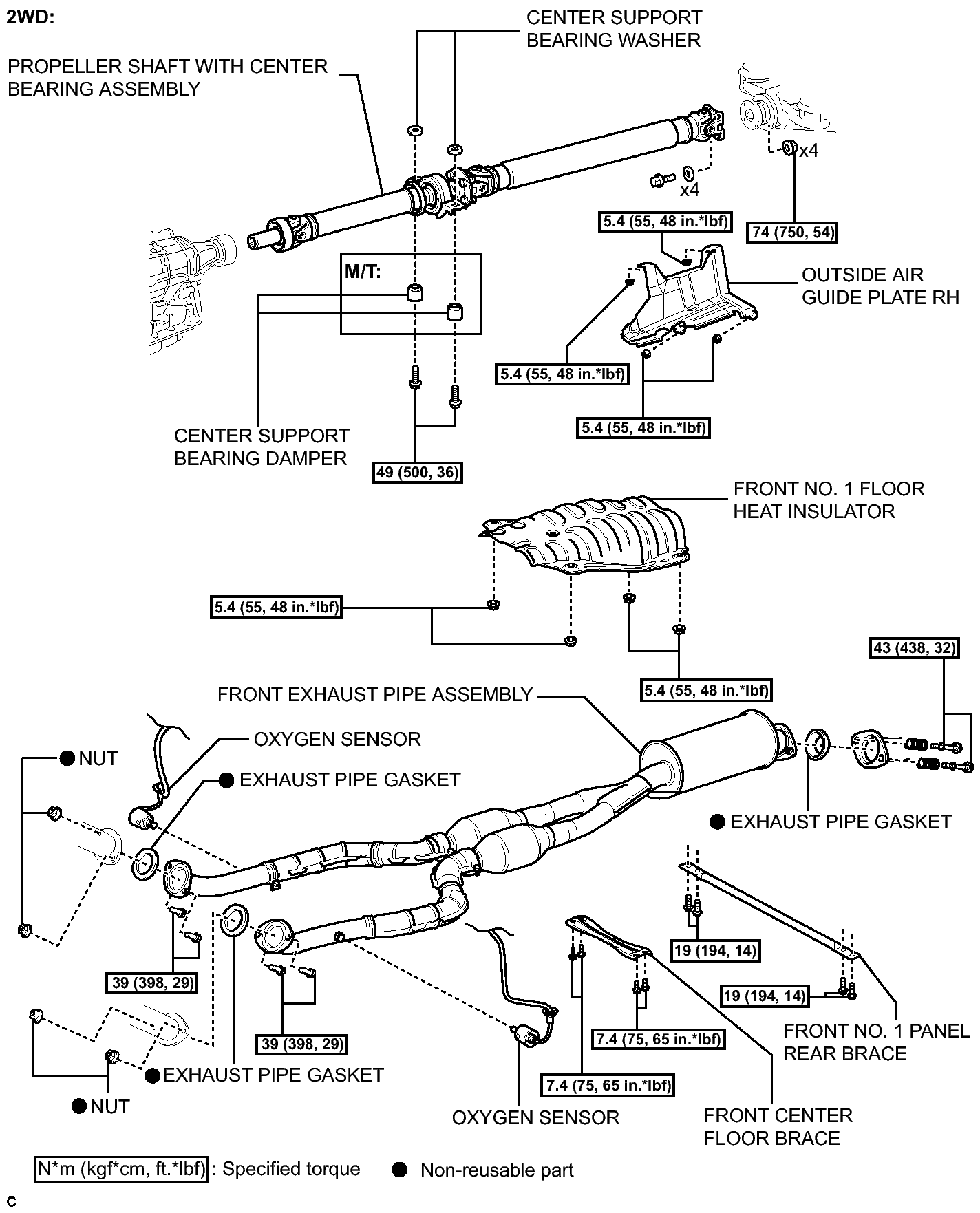

Fig 1: Identifying Rear Propeller Shaft Assembly (For 4GR-FSE) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

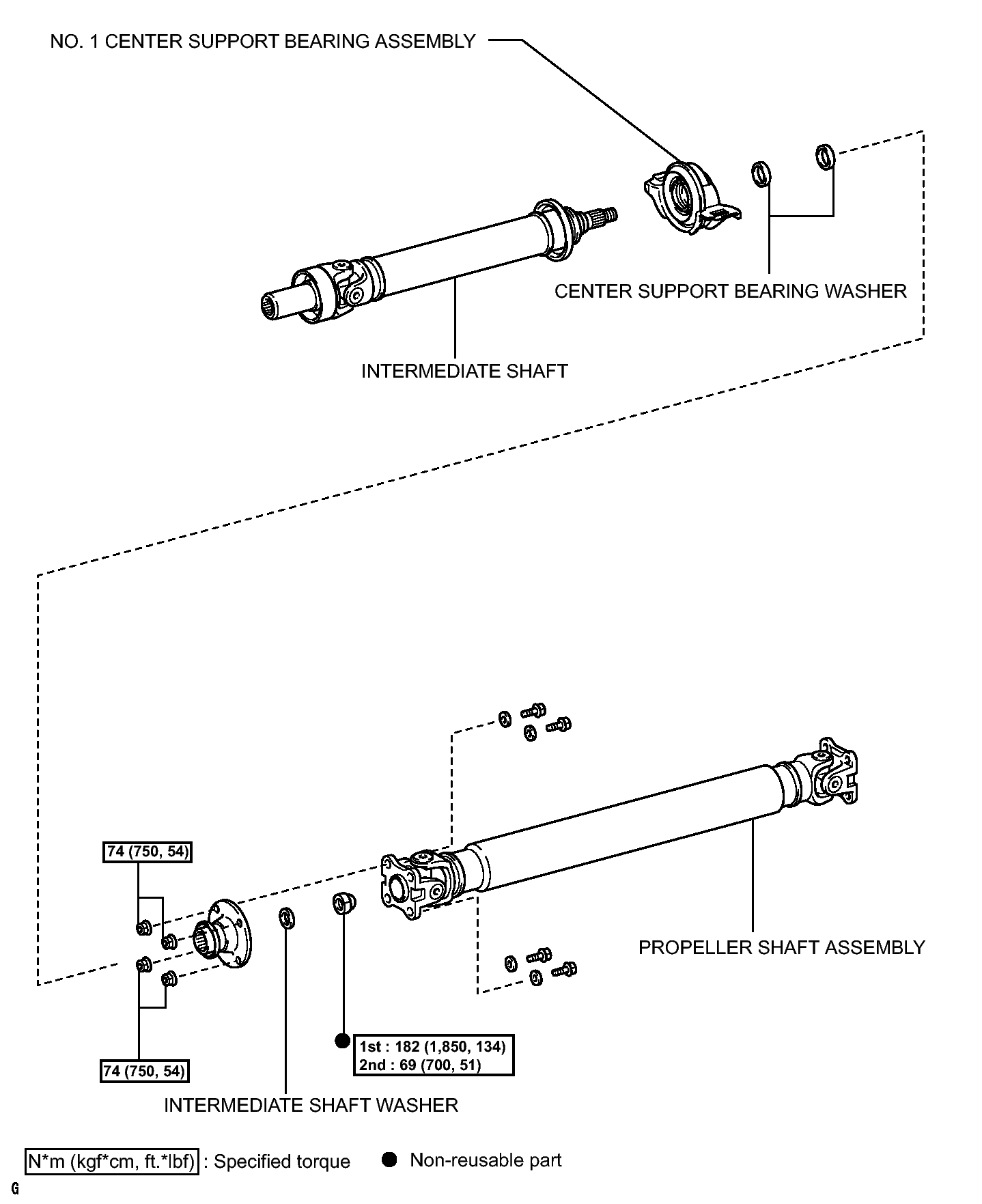

Fig 1: Identifying Rear Propeller Shaft Assembly (For 4GR-FSE) Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
