PROPELLER SHAFT ASSEMBLY (for 2GR-FSE): Components: Illustration

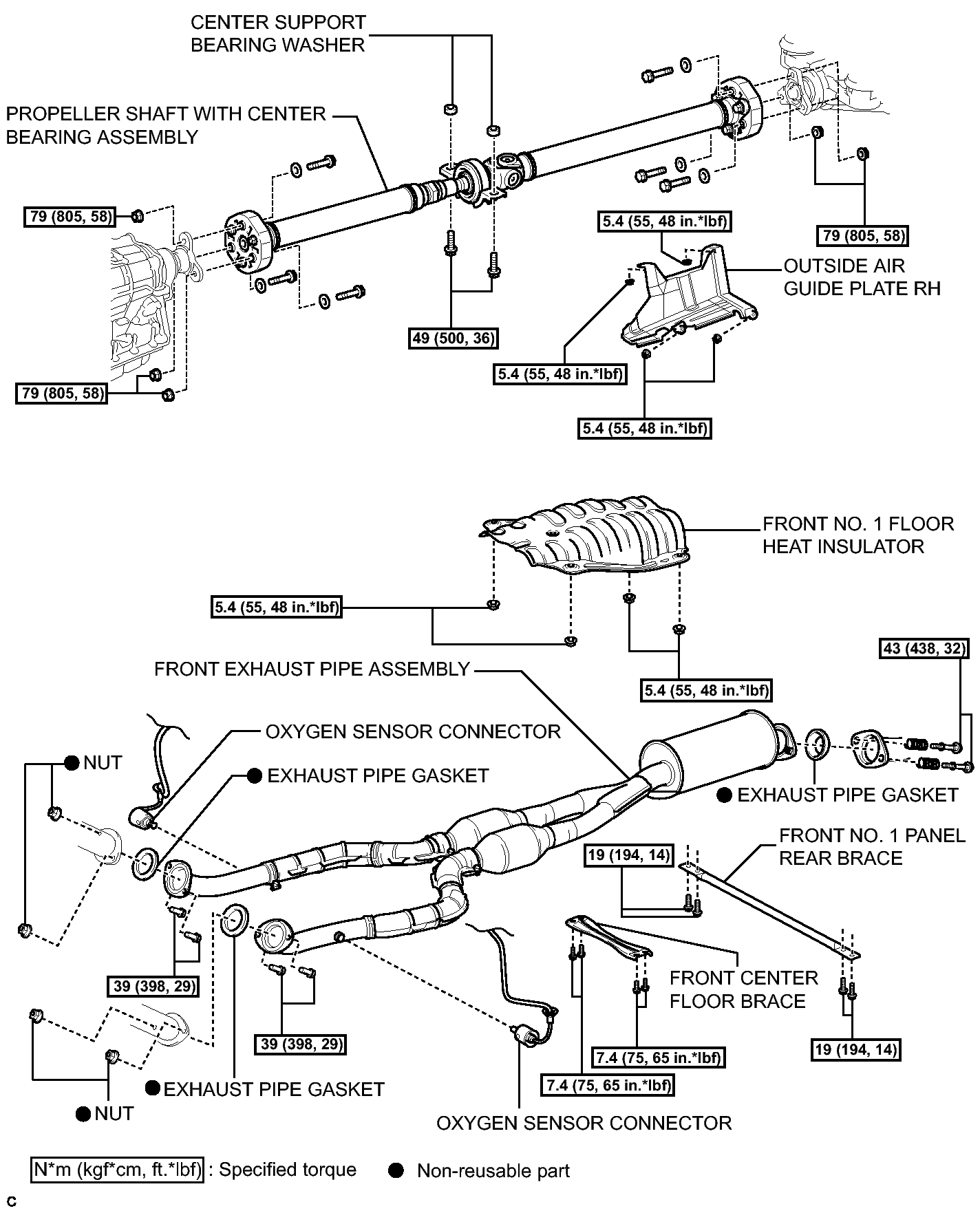

Fig 1: Identifying Rear Propeller Shaft Assembly (For 2GR-FSE) Replacement Components With Torque Specifications (1 Of 2)
GTY108948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

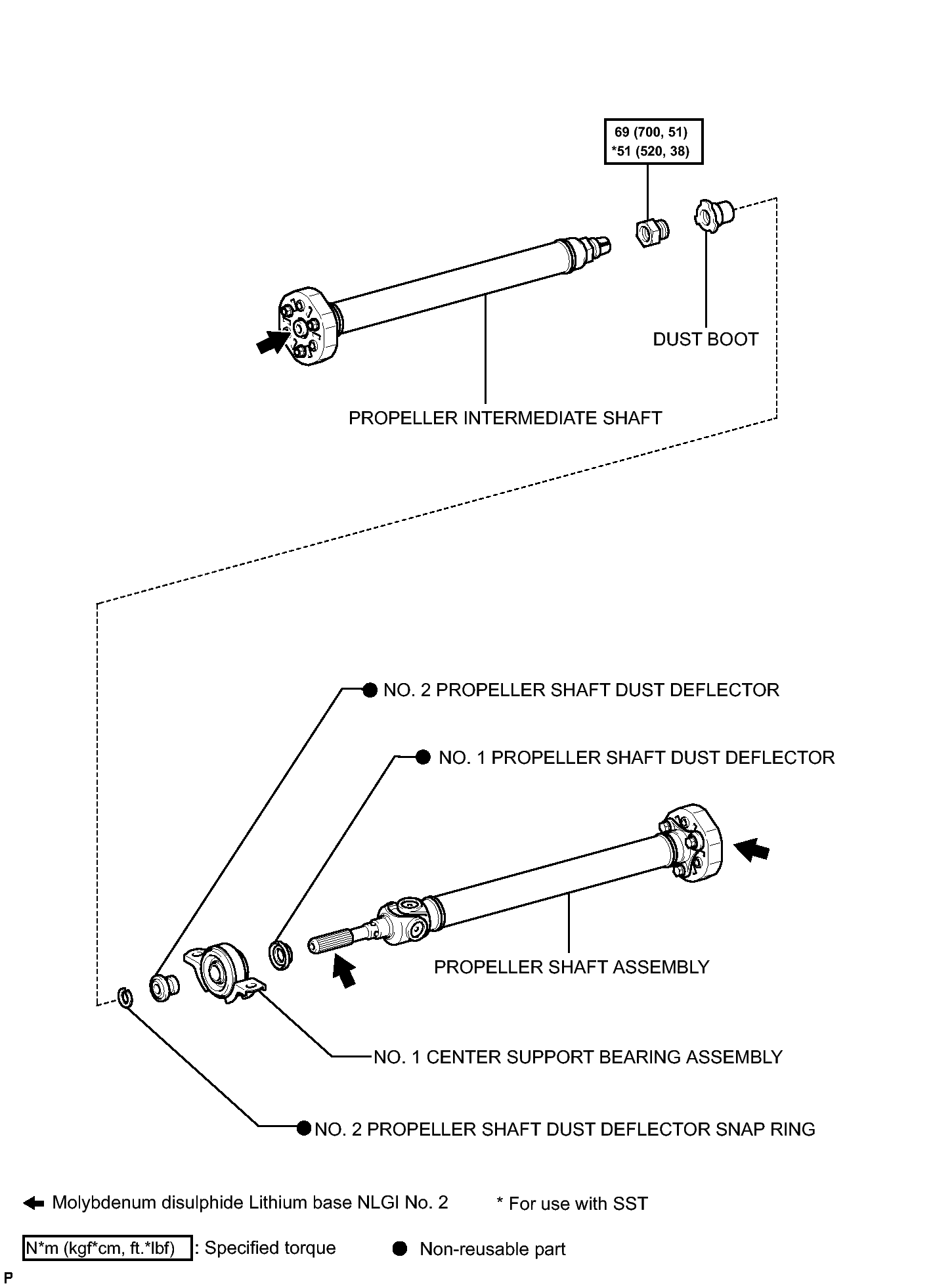

Fig 1: Identifying Rear Propeller Shaft Assembly (For 2GR-FSE) Replacement Components With Torque Specifications (2 Of 2)
GTY113592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
