Differential Side Gear Shaft Oil Seal: Components: Illustration

Fig 1: Identifying Differential Side Gear Shaft Oil Seal Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Differential Side Gear Shaft Oil Seal Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

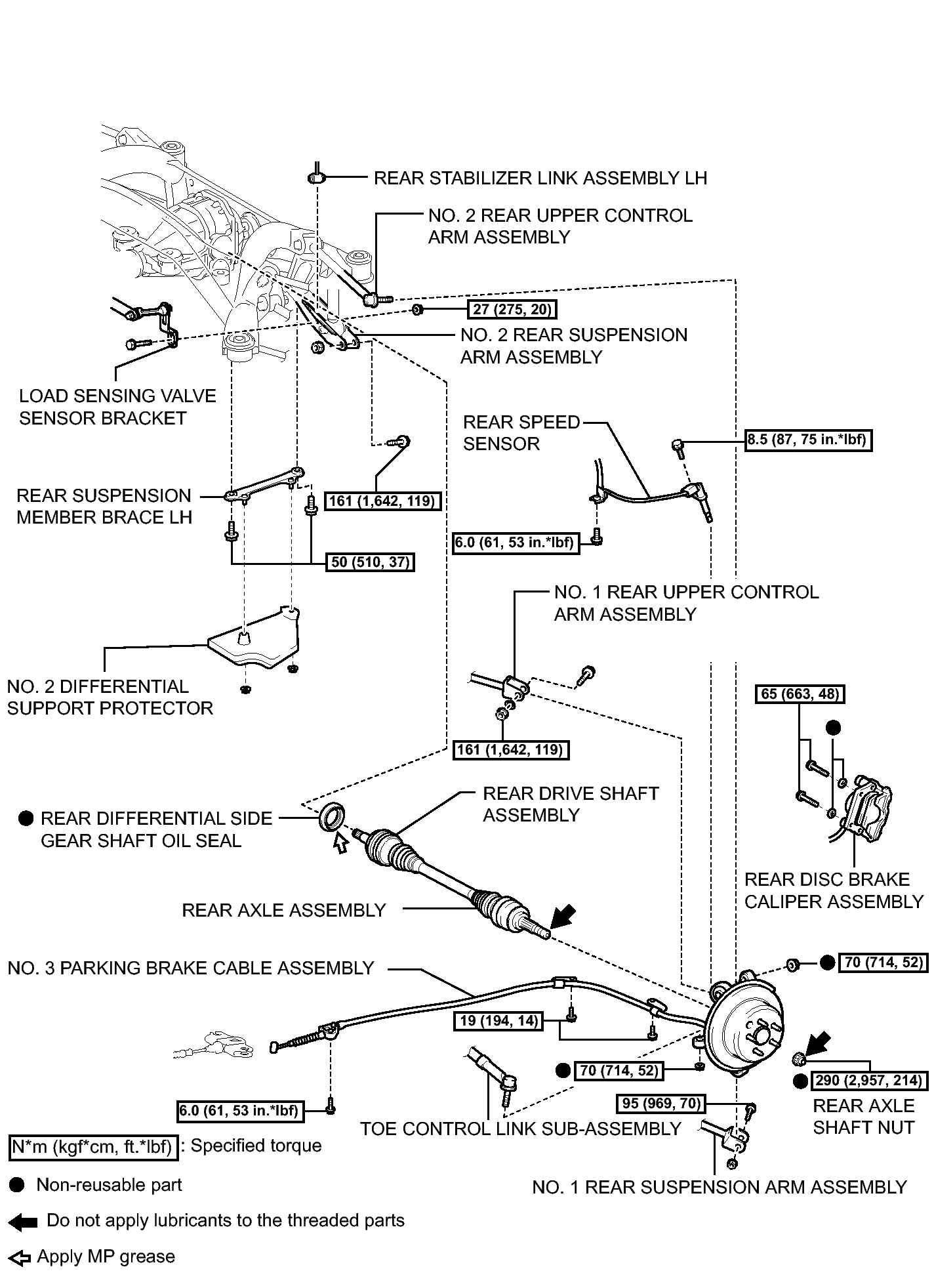

Fig 1: Identifying Differential Side Gear Shaft Oil Seal Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
