Parking Brake Pedal: Components: Illustration

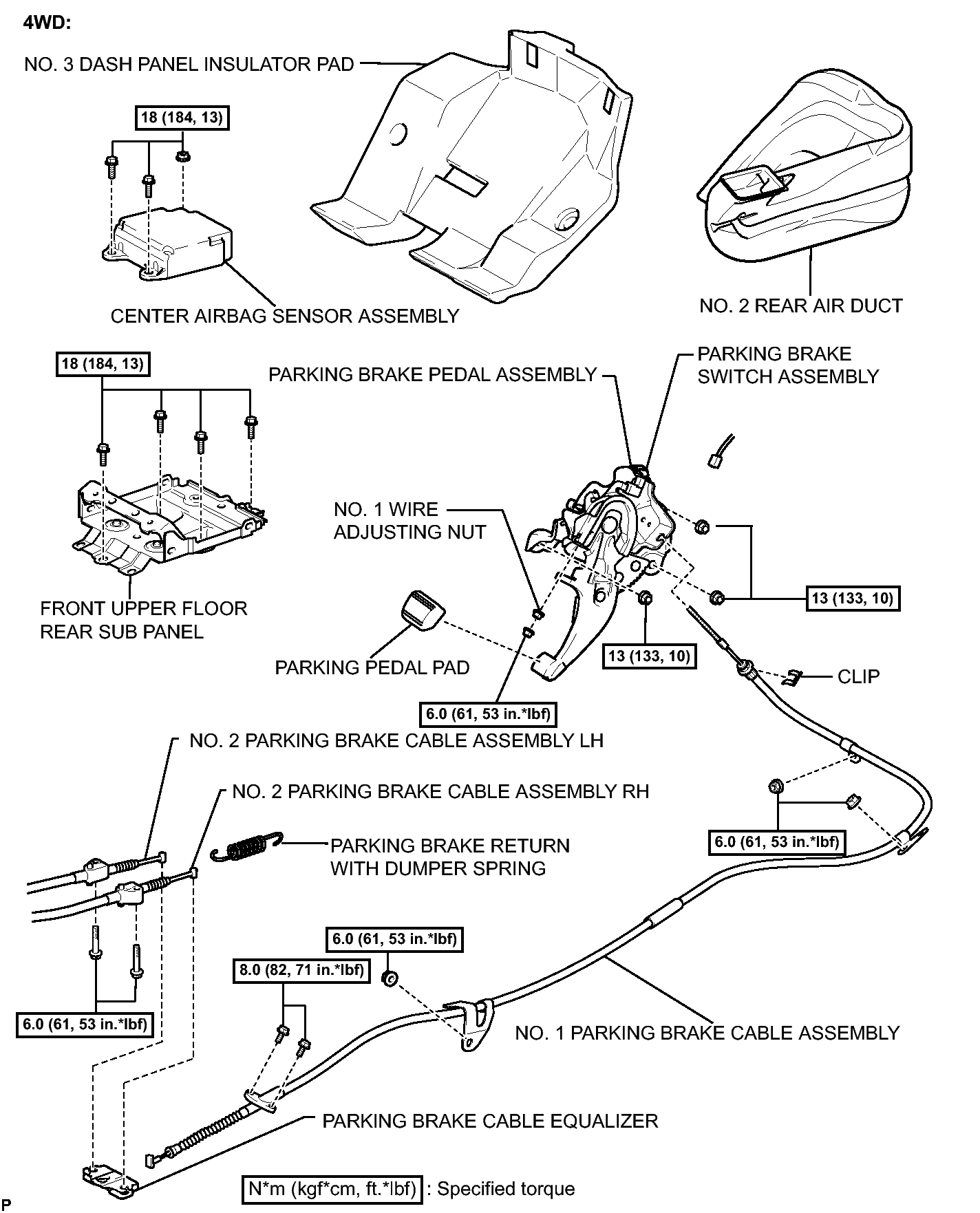

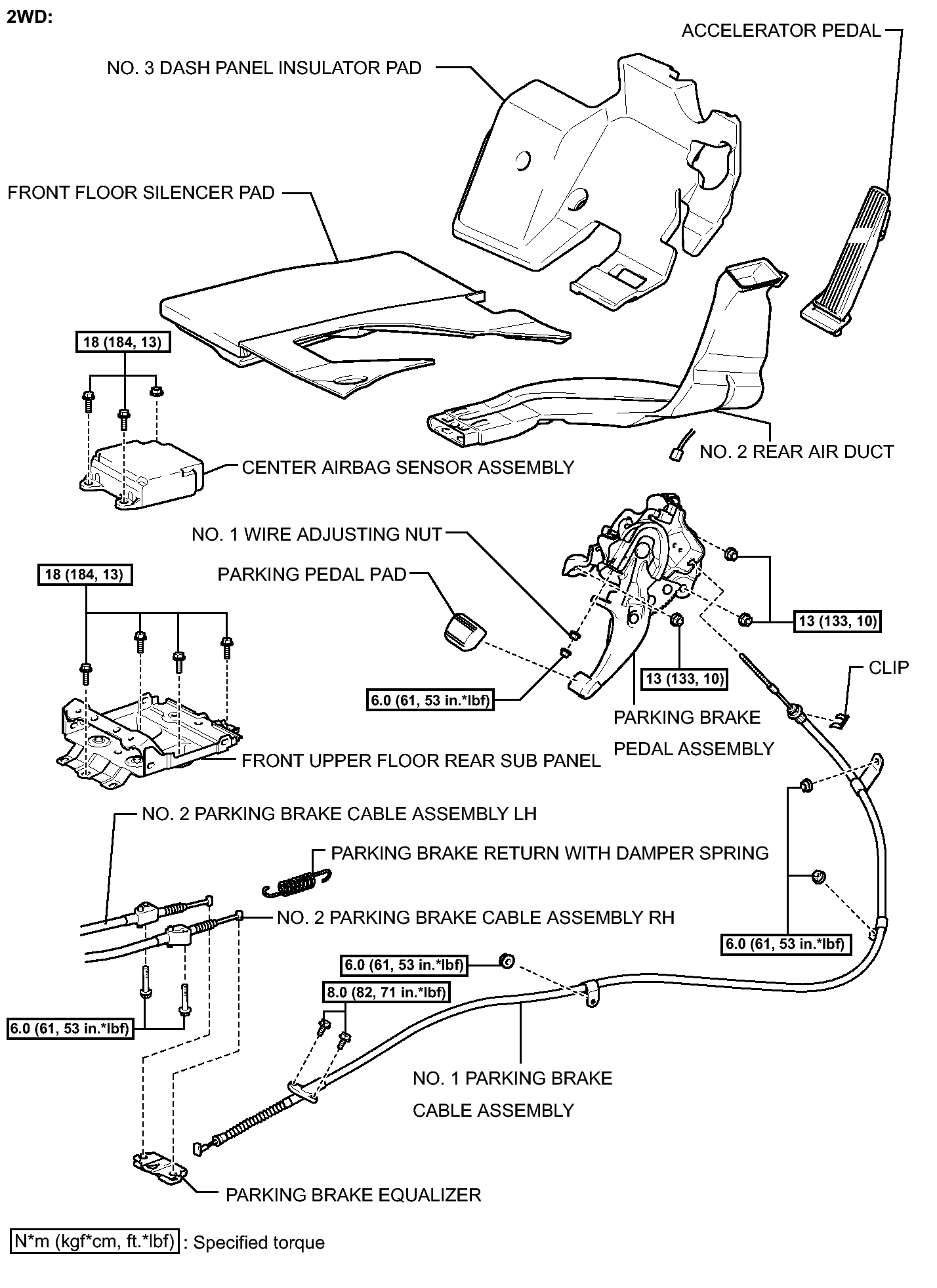

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

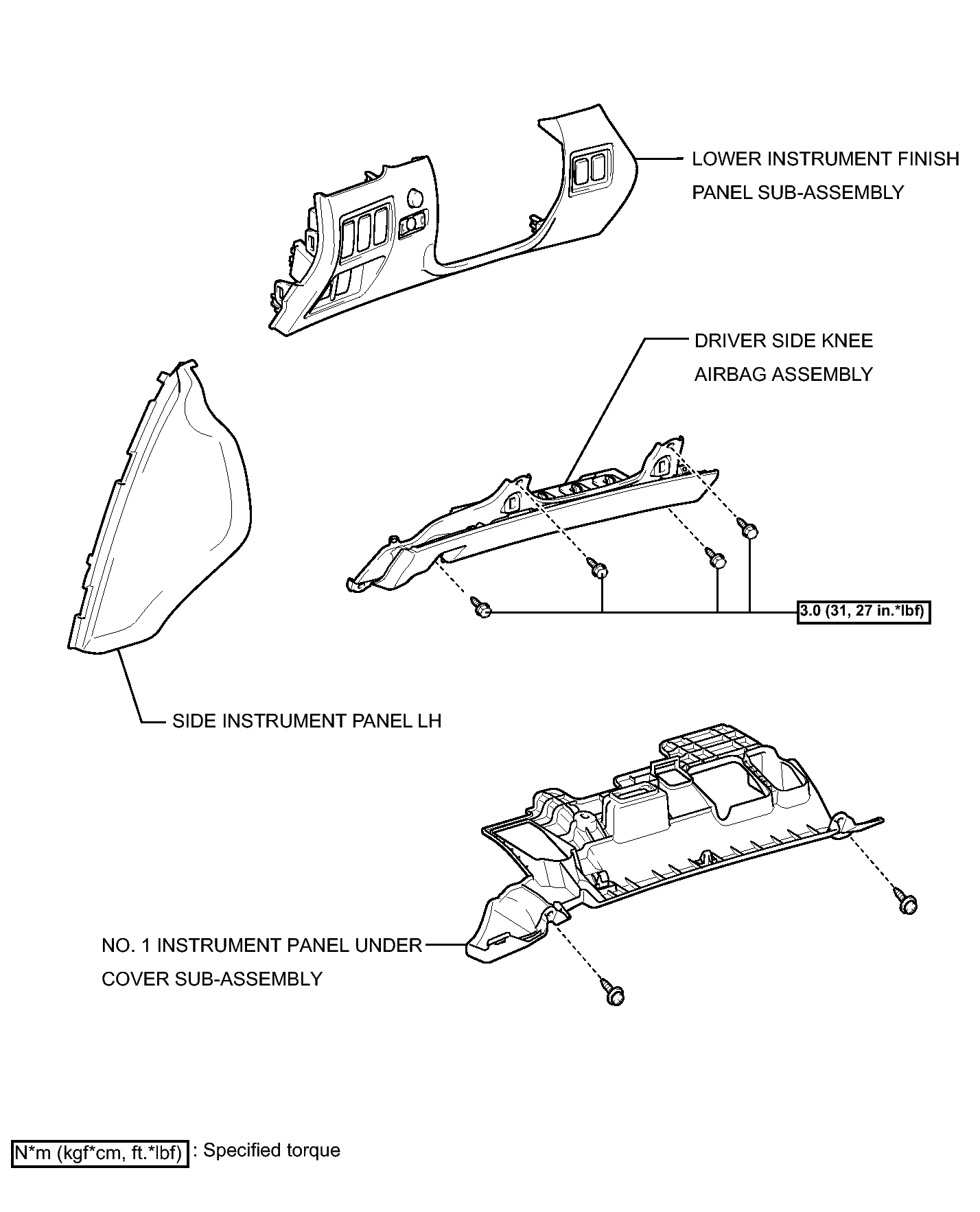

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

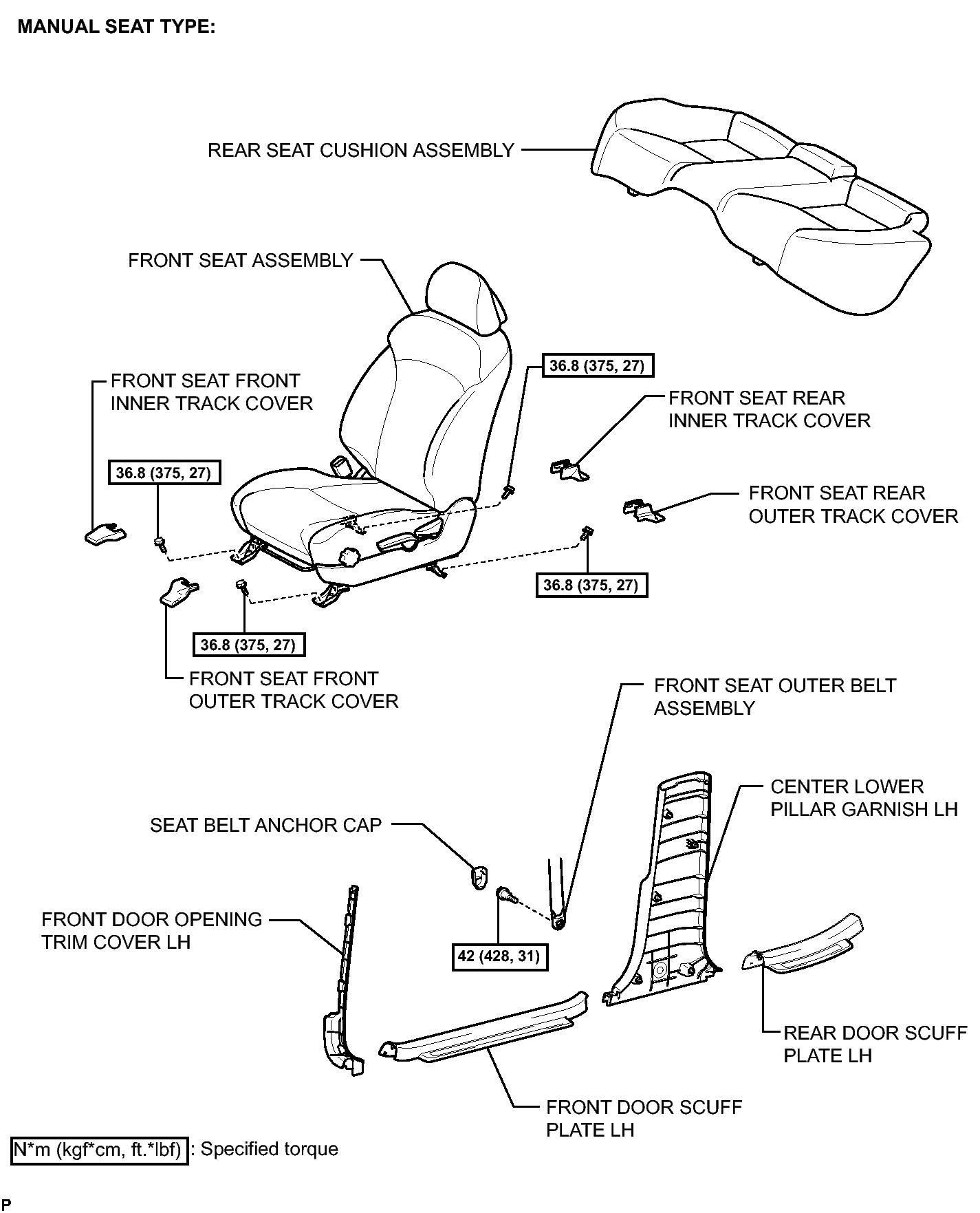

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

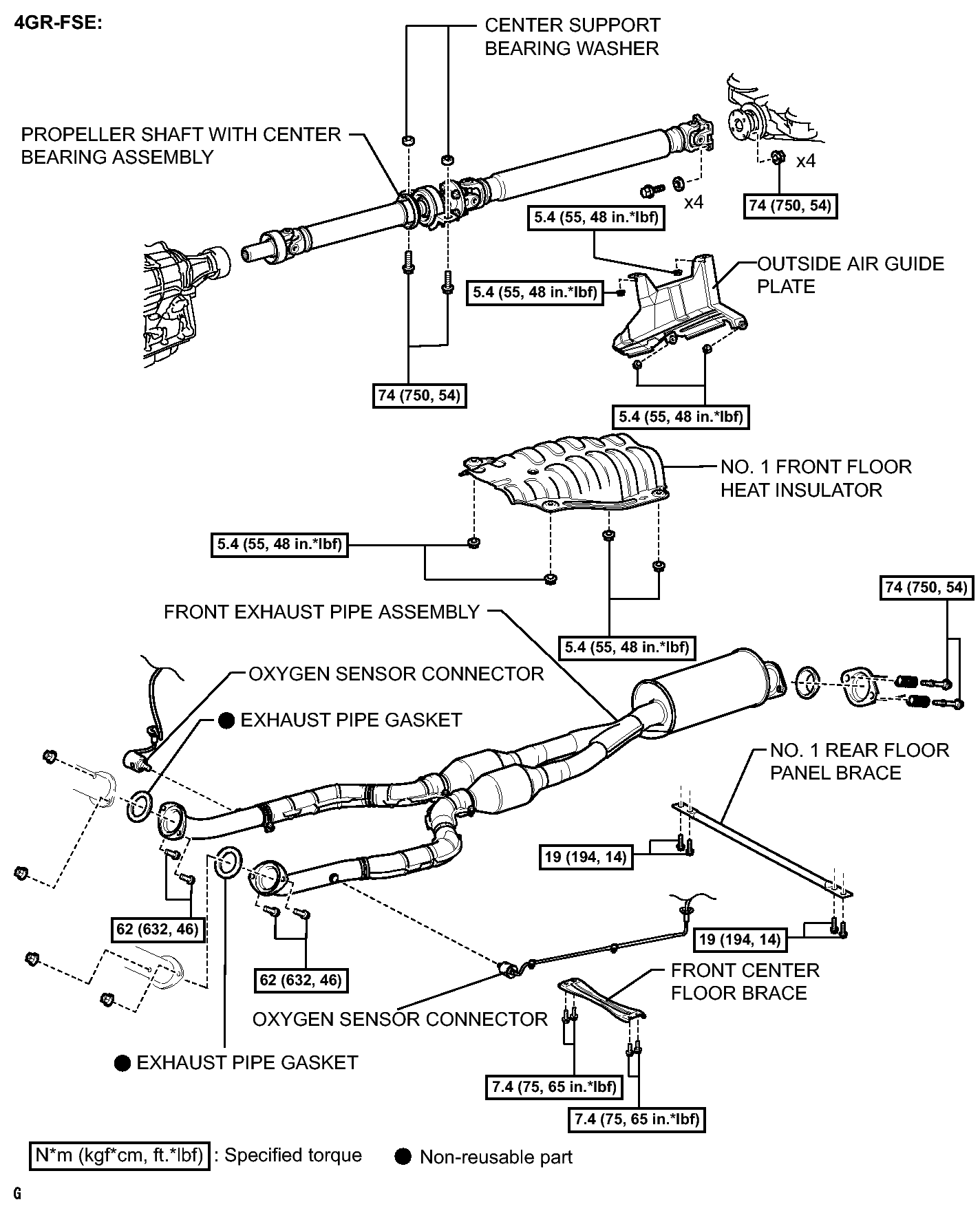

Fig 1: Identifying Parking Brake Pedal Replacement Components (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

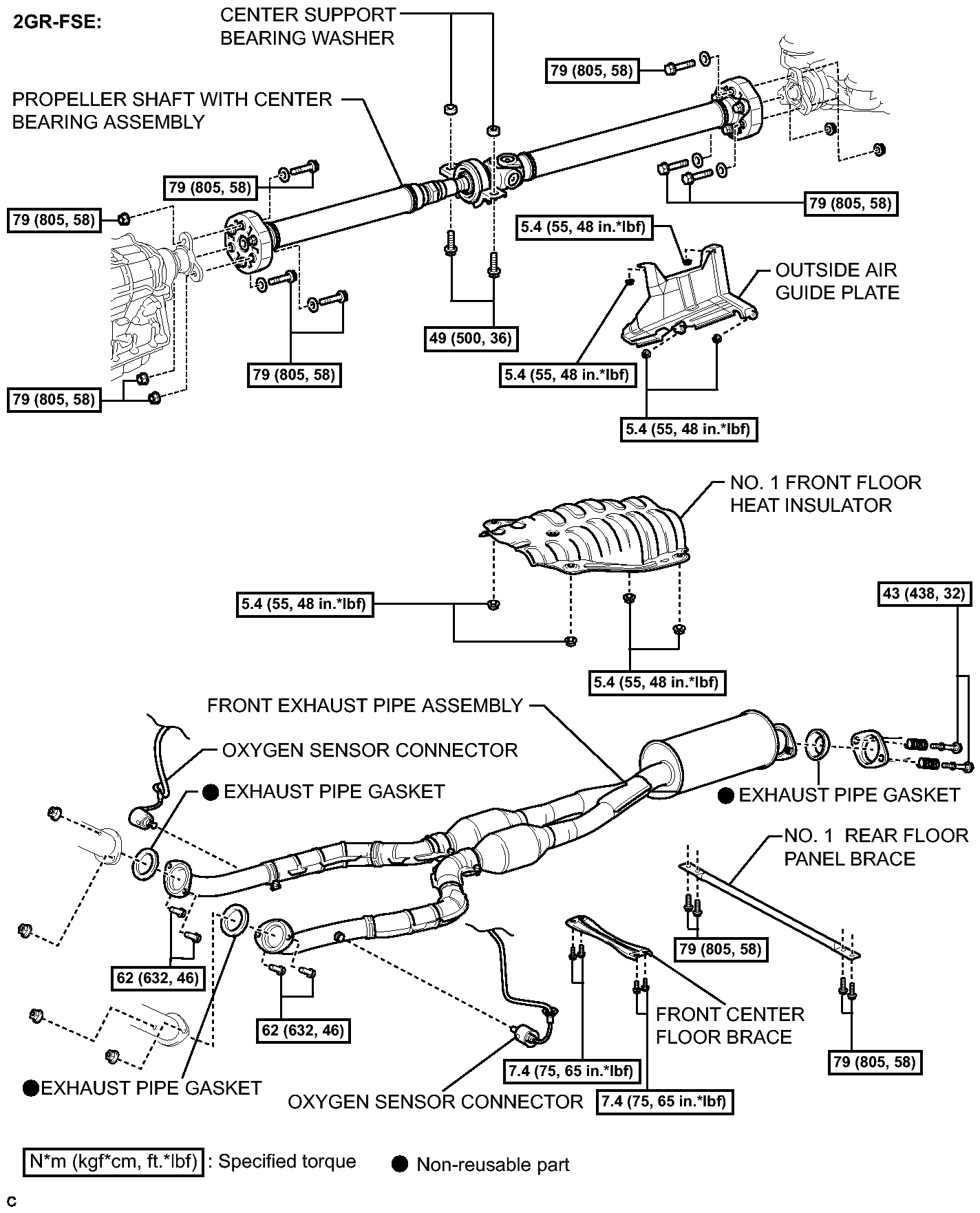

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

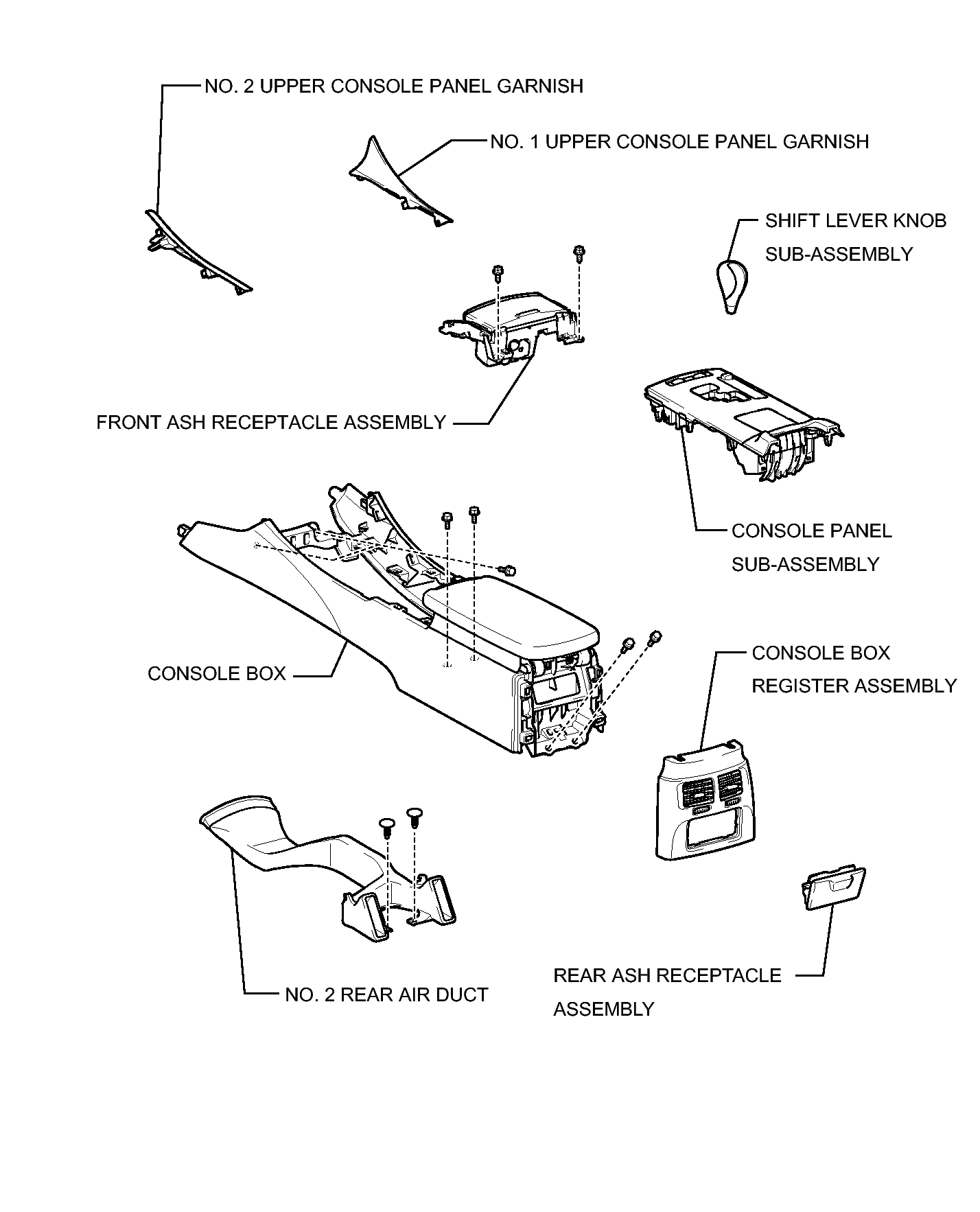

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (6 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

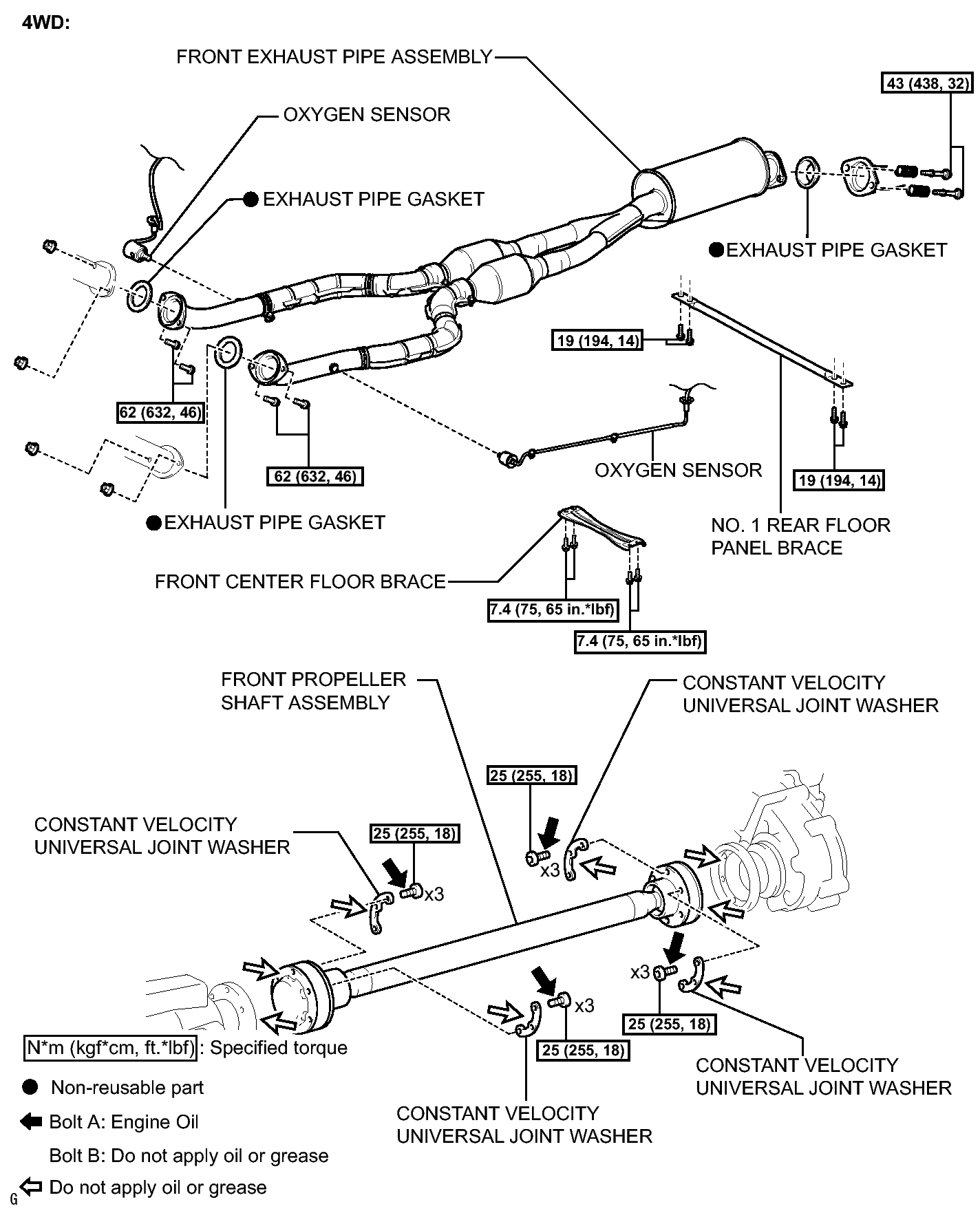

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (7 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

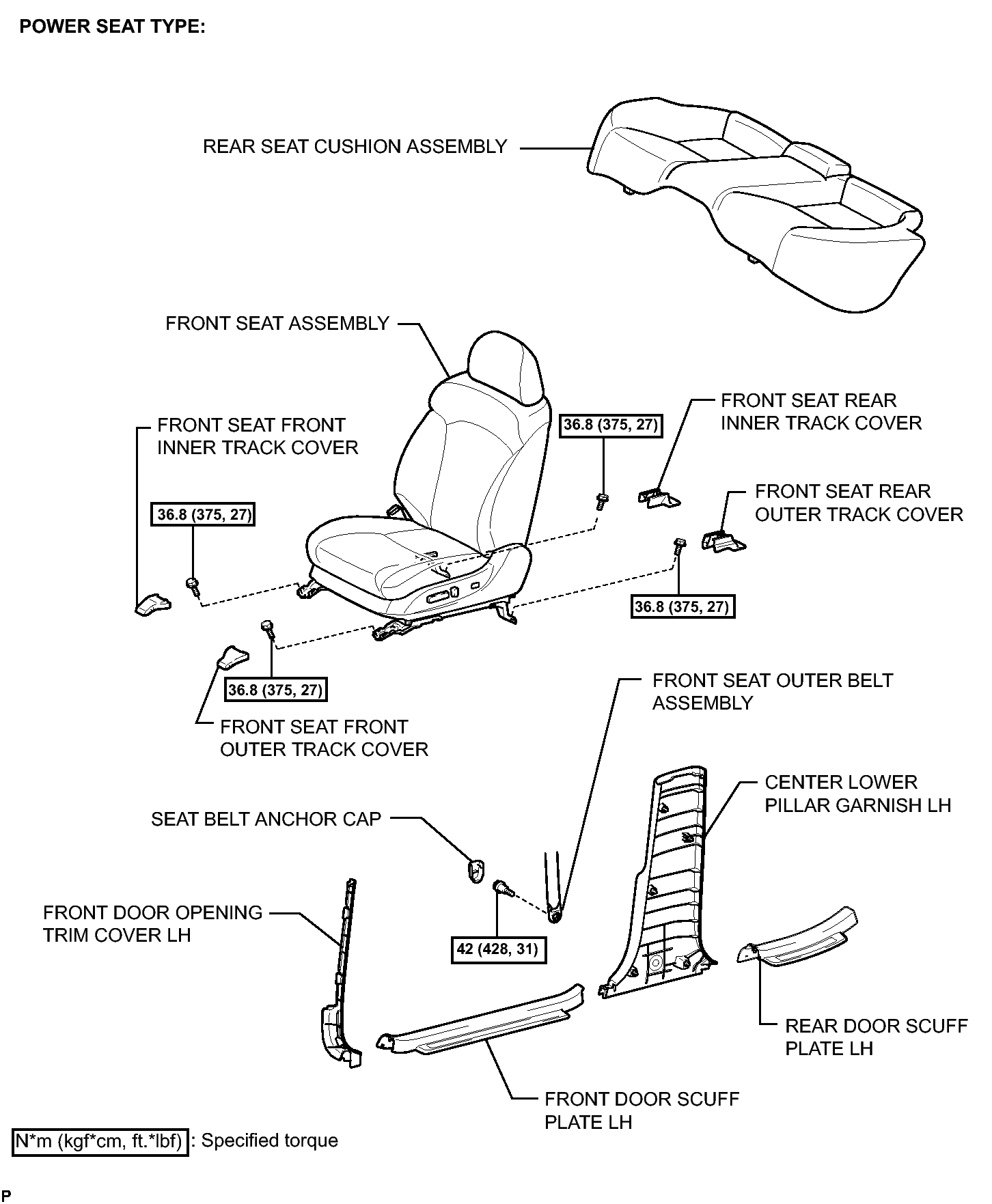

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (8 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (9 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
